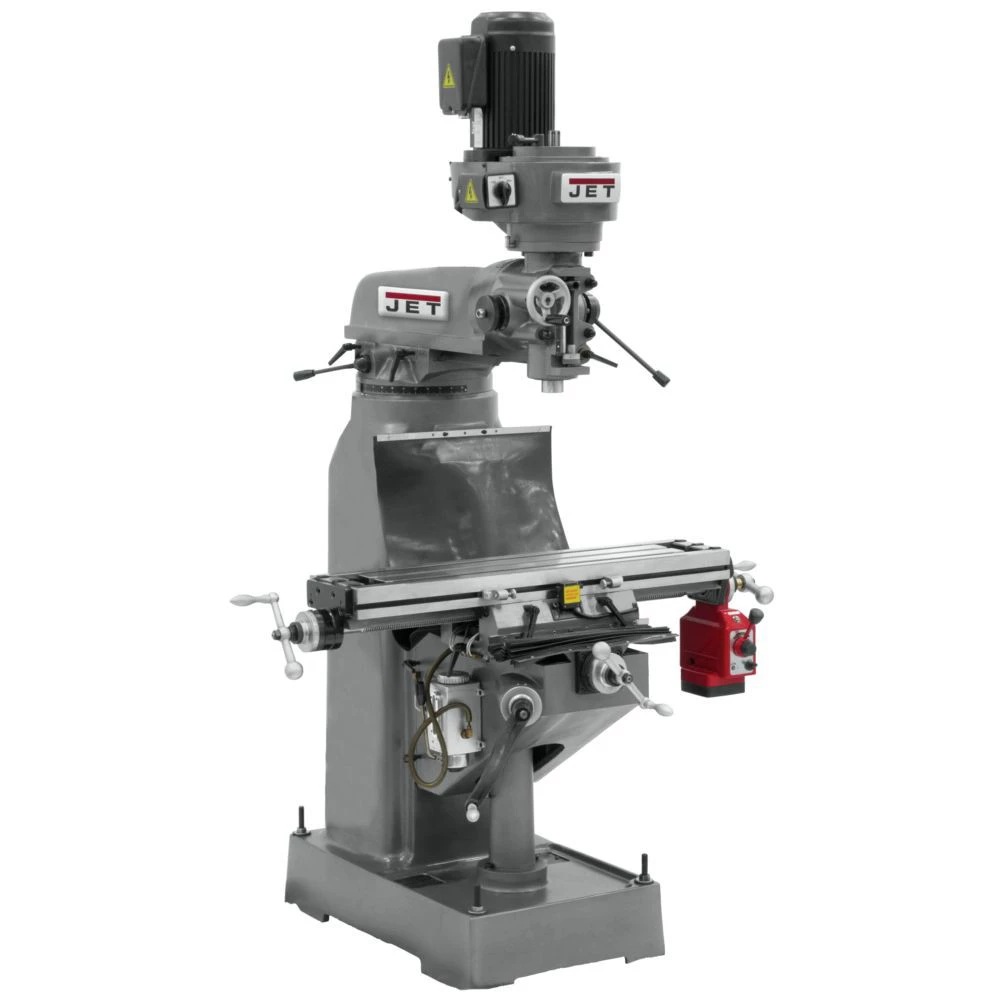

JET JVM-836-3 Mill With X Powerfeed Installed

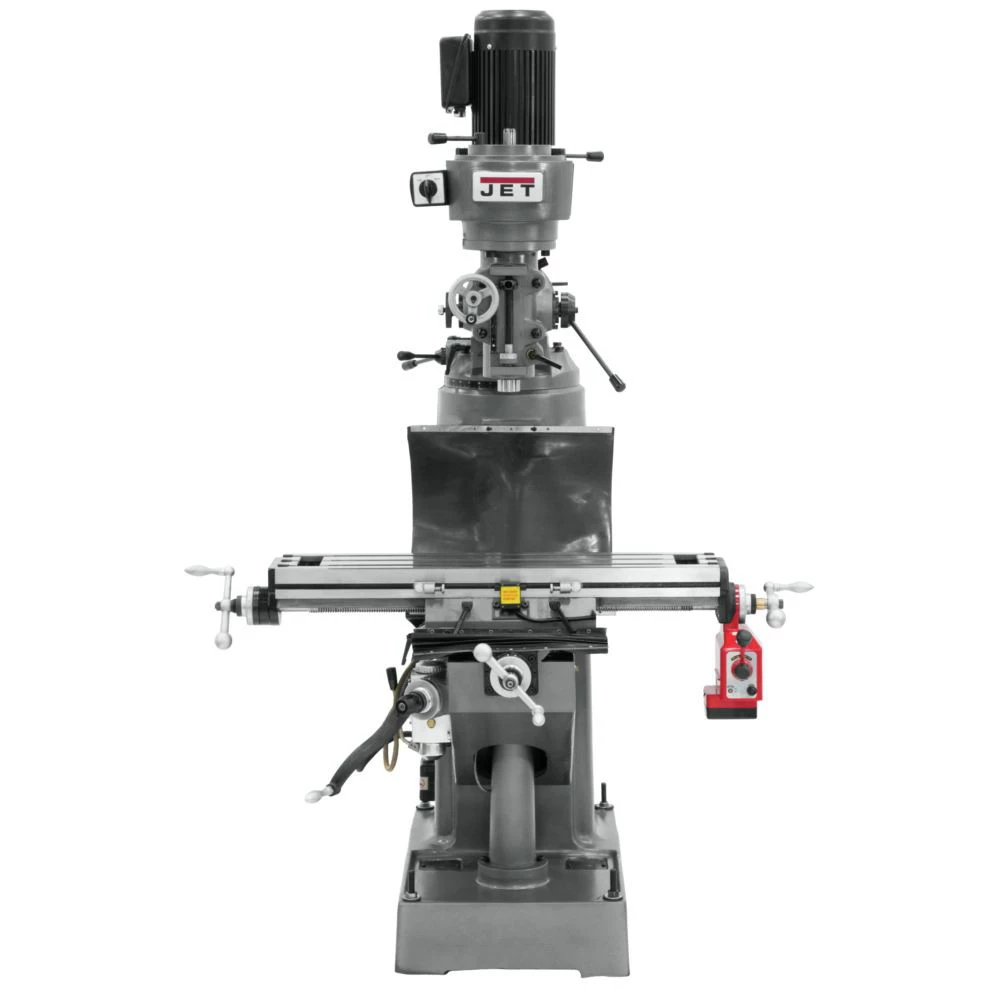

JET JVM-836-3 Mill With X Powerfeed Installed - Image 2

Original price was: $492.00.Current price is: $91.99.

SKU: Milling Machines jetn690174 Categories: Metalworking Tools, Milling Machines, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Features:

Precision bored and honed milling head
Large diameter quill is chromed
High precision spindle bearings
Over 10 in. of front to back ram travel
Locks on all movable surfaces
Hardened and ground precision table
Head tilts left or right
Graduated scale on column
Precision ground dovetail ways
Way covers
Draw bar
Tool box and tools

What’s Included:

JVM-836-3 Mill with X Powerfeed Installed – 690174
One Shot Lubrication System
Way Covers
Draw Bar
Tool Box

Power Source	Corded
Table Size	7-7/8 in x 35-3/4 in
Weight	1610 lbs.
Height	78 in.
Width	52 in.
Length	55 in.
Cross Travel (Y-Axis)	9-1/2 in
Spindle Travel	5 in
No. of T-Slots	3
Voltage	230V
Horsepower	1.5
Spindle to Column Distance	5-1/4 – 15-3/4 in
Motor Phase	3
Spindle Taper	R-8
T-Slot Centers	2-1/2 in
Wifi compatibility	No
Spindle Speed Range	120-1550 RPM
Ram Travel	10-1/2 in
T-Slot Size	5/8 in
Table Capacity (lbs.)	500 lbs
Head Movement	90 Degrees R/L
Quill Diameter	3-3/8 in
Quill Down Feed Rates	.0015 – .003 – .006
Motor Type	Brushed
Longitudinal Table Travel (X-Axis)	22-1/4 in
Bluetooth Compatibility	No
Spindle Speeds	10
Collet Capacity	1/8 in – 7/8 in
Spindle to Table Distance	13-3/4 in
Warranty Term	2 Year
