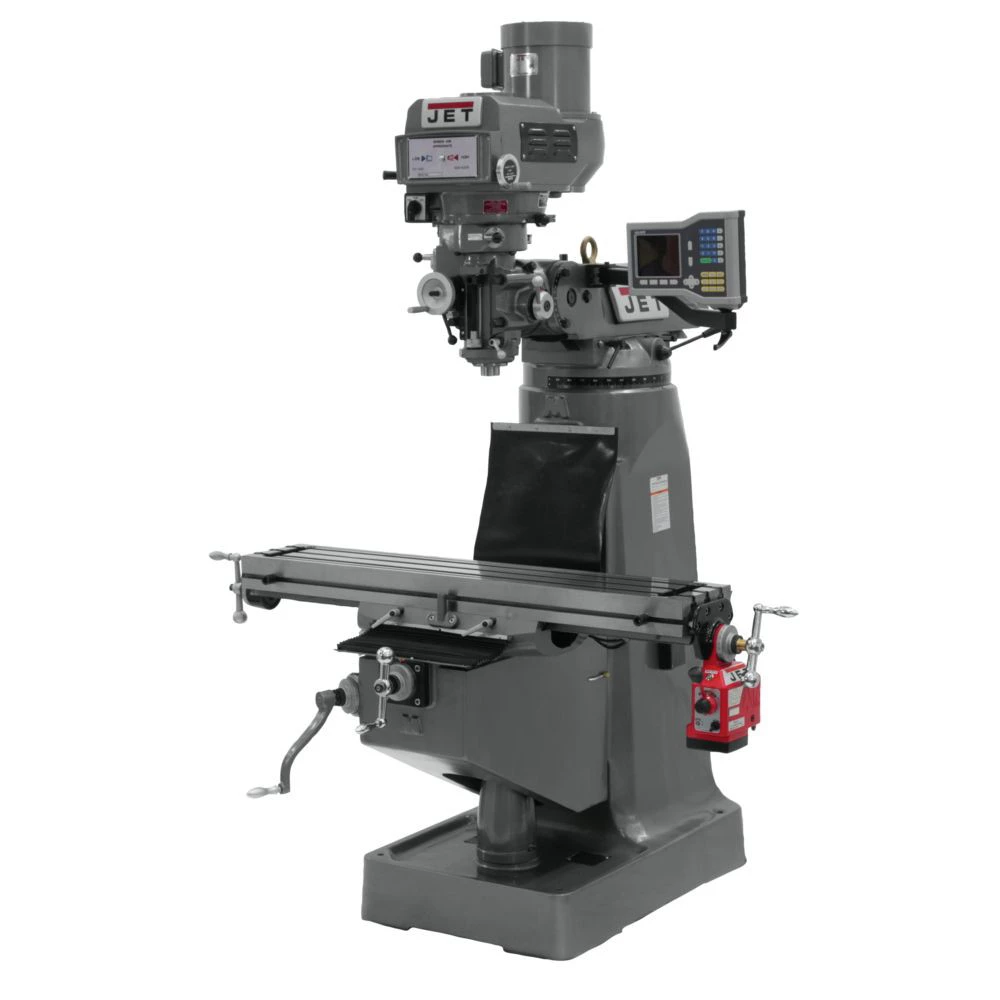

JET JTM-4VS Milling Machine WITH ACU-RITE VUE DRO WITH X-AXIS POWERFEED

Original price was: $472.00.Current price is: $90.99.

SKU: Milling Machines jetn690401 Categories: Metalworking Tools, Milling Machines, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Features:

Meehanite casting
Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearings
Chrome plated motor shaft with lower bearing support
Spindle head is internally cooled
Satin chrome finished dials
Heavy-duty splined motor drive
One-piece quill pinion and shaft
Three-stage power down feed with automatic stop
Heavy-duty spindle brake
Locks on all movable surfaces
Precision hardened and ground ways and table
Adjustable gibs throughout
Internal coolant tank built into casting base for use with coolant system (coolant pump not included)
Tolerance table sheet included

What’s Included:

JTM-4VS 1-Phase Vertical Milling Machine w/ ANILAM Wizard 411 DRO and X Axis TPFA – 690401
One-Shot Lubrication System
Way Covers
Draw Bar
Tool Box &amp, Tools

Power Source	Corded
Voltage	460V
Weight	2600 lbs.
Height	85 in.
Width	63 in.
Length	65.5 in.
ETL Safety	No
Ram Travel	14-1/2 in
Cross Travel (Y-Axis)	12 in
T-Slot Size	5/8 in
Table Capacity (lbs.)	660 lbs
Head Movement	90 Degrees R/L 45 Degrees F/B
Quill Diameter	3-3/8 in
Spindle Travel	5 in
Quill Down Feed Rates	.0015 – .003 – .006
No. of T-Slots	3
Motor Type	Brushed
Spindle Speed Range	60-4200 RPM
T-Slot Centers	2-1/2 in
PreWired Voltage	230V
UL Safety	No
CSA Safety	No
Wifi compatibility	No
Spindle to Table Distance	17-1/2 in
Collet Capacity	1/8 in – 7/8 in
Spindle Speeds	Variable
Horsepower	3
Bluetooth Compatibility	No
Table Size	10 in x 50 in
Spindle Taper	R-8
Motor Phase	3
Longitudinal Table Travel (X-Axis)	34 in
Spindle to Column Distance	6-3/4 – 19 in
Warranty Term	2 Year
