Name: Excellent quality and novel trends - JET JTM-4VS Mill With ACU-RITE VUE DRO & X/Y/Z-Axis Powerfeed
SKU: Milling Machines jetn690417
Price: 88.99 USD
Availability: InStock

Sale!

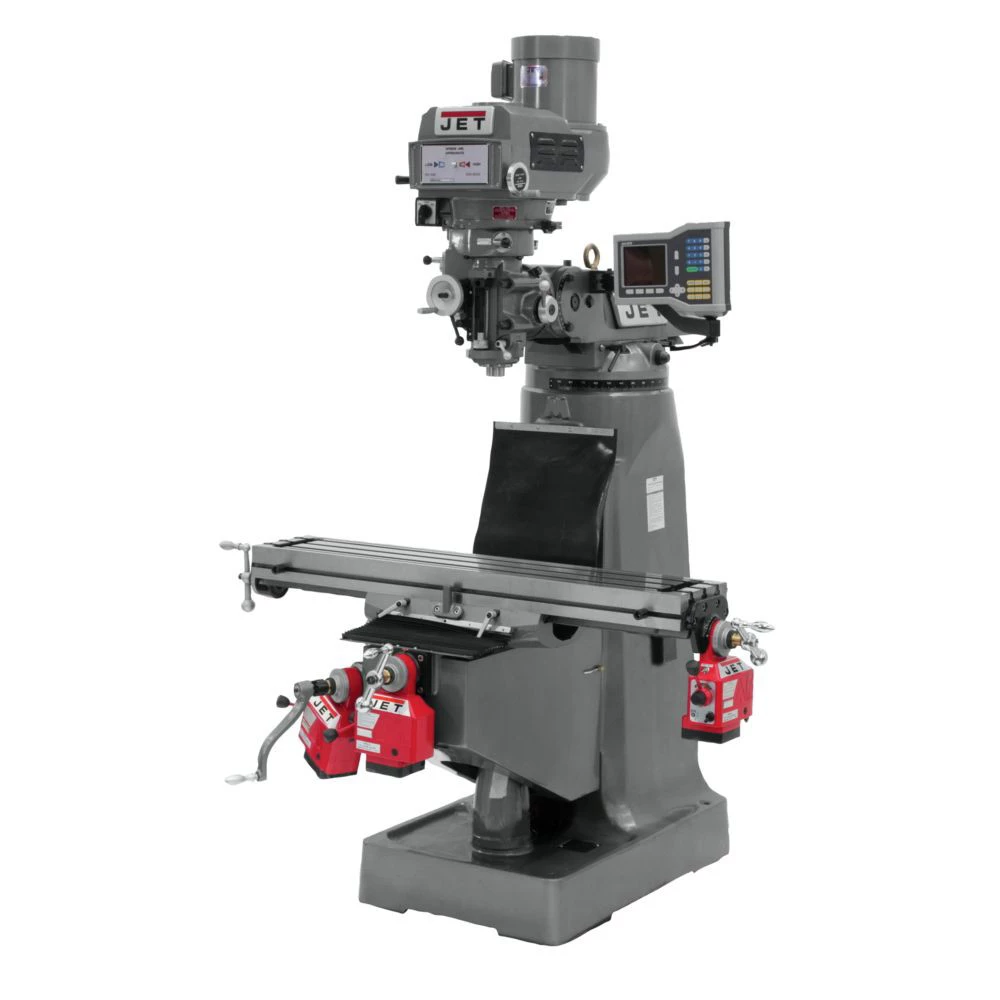

JET JTM-4VS Mill With ACU-RITE VUE DRO & X/Y/Z-Axis Powerfeed

Original price was: $448.00.Current price is: $88.99.

SKU: Milling Machines jetn690417 Categories: Metalworking Tools, Milling Machines, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Constructed using the Meehanite casting process, JET Variable-Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power down feed with automatic stop makes it easy to use. JET precision engineering ensures that the JTM-4VS delivers superior results, and comes backed by the industry leading Red Assurance two-year warranty.

Features:

Meehanite castings
Precision bored and honed milling head
High precision Class 7 spindle bearings
Chrome plated motor shaft with lower bearing support
Three-stage power down feed with automatic stop
Heavy-duty spindle brake
Internal coolant tank built into base for use with coolant systems (Pump Not Included)

What’s Included:

JTM-4VS Mill with ACU-RITE VUE DRO & X/Y/Z-Axis Powerfeed – 690417

Power Source	Corded
T-Slot Centers	2-1/2 in
Weight	2420 lbs.
Height	85 in.
Width	63 in.
Length	66 in.
ETL Safety	No
Cross Travel (Y-Axis)	12 in
Spindle Travel	5 in
No. of T-Slots	3
Voltage	460V
Horsepower	3
Spindle to Column Distance	4-1/2 – 19 in
Motor Phase	3
Spindle Taper	R-8
Table Size	9 in x 49 in
CSA Safety	No
PreWired Voltage	230V
Longitudinal Table Travel (X-Axis)	28-3/4 in
UL Safety	No
Wifi compatibility	No
Spindle to Table Distance	17-1/2 in
Collet Capacity	1/8 in – 7/8 in
Spindle Speeds	Variable
Bluetooth Compatibility	No
Motor Type	Brushed
Spindle Speed Range	60-4200 RPM
Quill Down Feed Rates	.0015 – .003 – .006
Quill Diameter	3-3/8 in
Head Movement	90 Degrees R/L 45 Degrees F/B
Table Capacity (lbs.)	660 lbs
T-Slot Size	5/8 in
Ram Travel	13-3/8 in
Warranty Term	2 Year
