Name: 2021 best selling hot JET JTM-2 Mill W/ANILAM 411 DRO & X-AXIS POWERFEED on Outlet JET Store
SKU: Milling Machines jetn690286
Price: 94.99 USD
Availability: InStock

Sale!

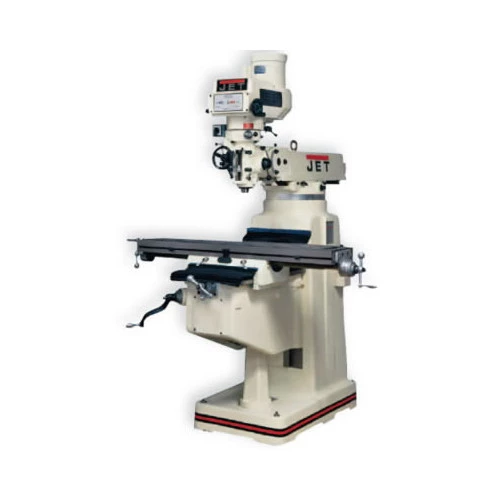

JET JTM-2 Mill W/ANILAM 411 DRO & X-AXIS POWERFEED

Original price was: $488.00.Current price is: $94.99.

SKU: Milling Machines jetn690286 Categories: Metalworking Tools, Milling Machines, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Use of static phase converter will void warranty

Features:

Meehanite casting
Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearings
Spindle head is internally cooled
Satin chrome finished dials
Heavy-duty splined motor drive
One-pieced quill pinion and shaft
Three-stage power downfeed with automatic stop
Heavy-duty spindle brake
Precison hardened and ground ways
Precision ground table
Adjustable gibs throughout
Internal coolant tank built into base for use with coolant system (coolant pump not included)
Tolerance test sheet included

What’s Included:

JTM-2 Mill W/ANILAM 411 DRO & X-AXIS POWERFEED – 690286
One Shot Lubrication System
Way Covers
Draw Bar
Tool Box

Power Source	Corded
T-Slot Centers	2-1/2 in
Weight	2200 lbs.
Height	82 in.
Width	64 in.
Length	57 in.
Cross Travel (Y-Axis)	12-1/2 in
Spindle Travel	5 in
No. of T-Slots	3
Voltage	230V
Horsepower	2
Spindle to Column Distance	4-1/2 – 19 in
Motor Phase	3
Spindle Taper	R-8
Table Size	9 in x 42 in
Spindle Speed Range	80-2720 RPM
PreWired Voltage	115V
Ram Travel	13-3/8 in
T-Slot Size	5/8 in
Table Capacity (lbs.)	550 lbs
Head Movement	90 Degrees R/L 45 Degrees F/B
Quill Diameter	3-3/8 in
Quill Down Feed Rates	.0015 – .003 – .006
Motor Type	Brushed
Longitudinal Table Travel (X-Axis)	30 in
Bluetooth Compatibility	No
Spindle Speeds	16
Collet Capacity	1/8 in – 7/8 in
Spindle to Table Distance	17-1/2 in
Wifi compatibility	No
Warranty Term	2 Year
