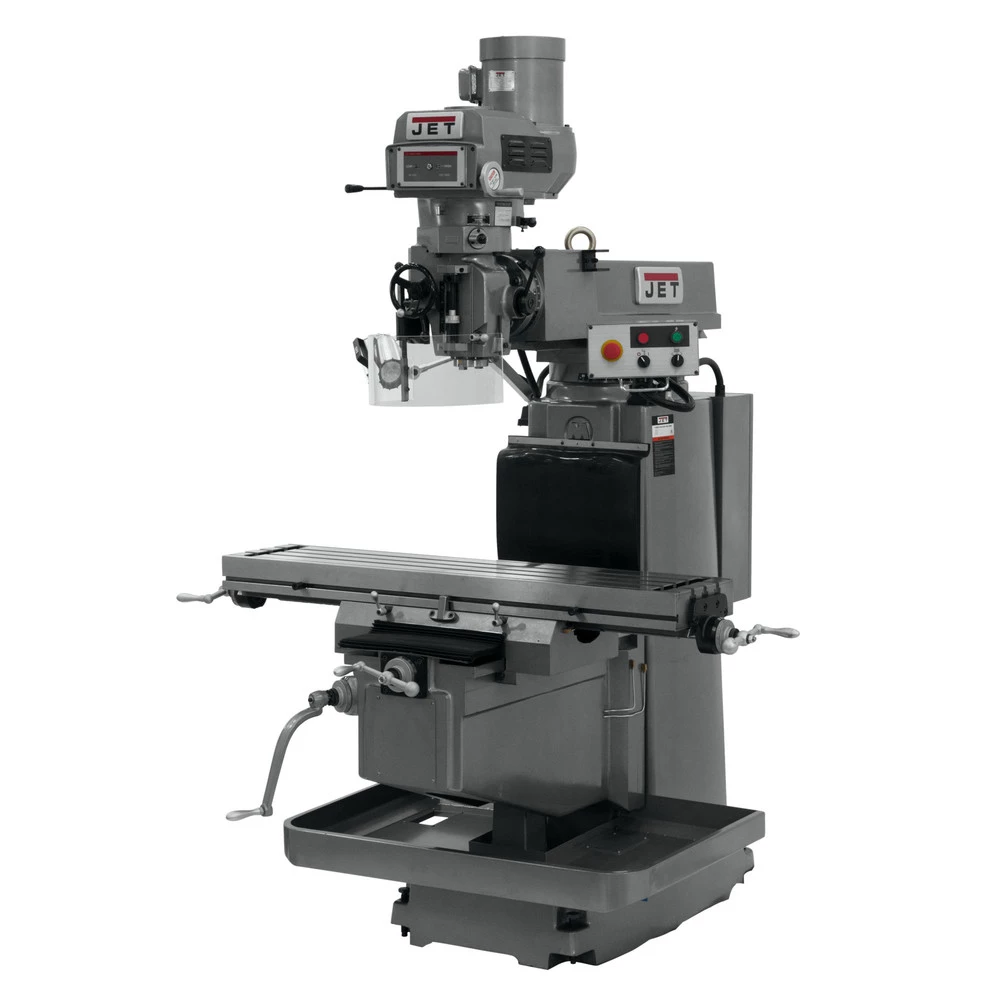

JET JTM-1254VS 230V/460V 3 PH Variable Speed Vertical Mill Machine

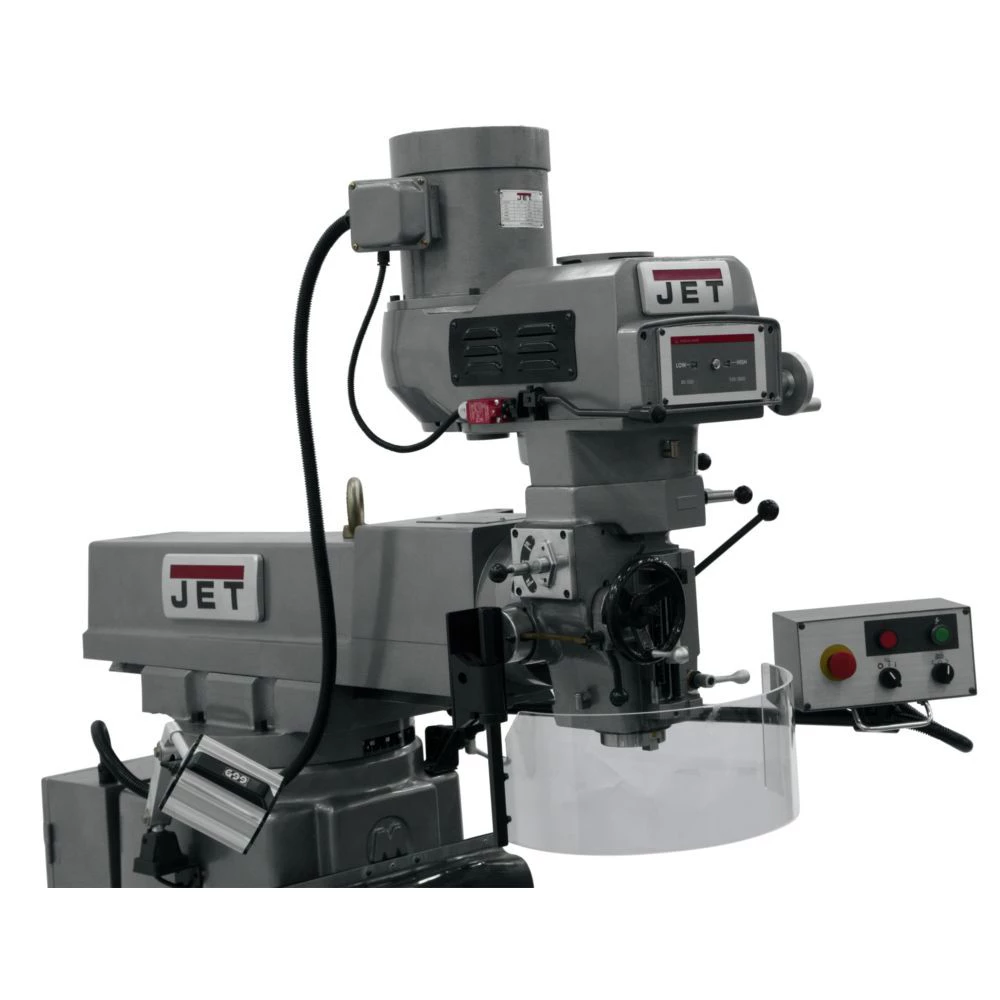

JET JTM-1254VS 230V/460V 3 PH Variable Speed Vertical Mill Machine - Image 2

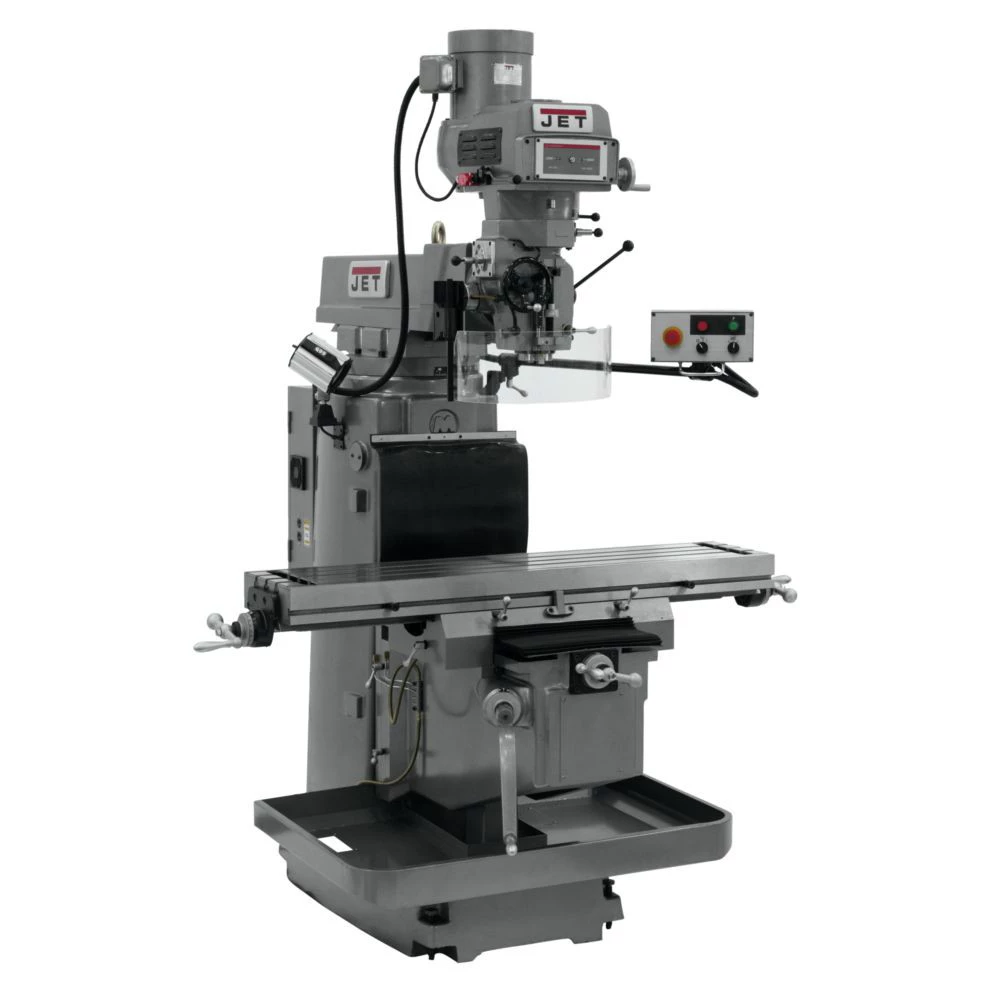

JET JTM-1254VS 230V/460V 3 PH Variable Speed Vertical Mill Machine - Image 3

JET JTM-1254VS 230V/460V 3 PH Variable Speed Vertical Mill Machine - Image 4

Original price was: $580.00.Current price is: $85.99.

SKU: Milling Machines jetn690025 Categories: Metalworking Tools, Milling Machines, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12 in. x 54 in. Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication and quick nut spindle feed along with the JET exclusive new casting, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 and NT-40 Spindles with all the features you’ve come to expect backed by the industry-leading JET Two Year Warranty.

Features:

Certified Meehanite Castings
Precision bored and honed milling head
High precision Class 7 spindle bearings
Quick Spindle Feed Nut
Three-stage power downfeed with automatic stop
Heavy-duty spindle brake
Precision hardened and ground ways and table
Three Precision ground t-slots
Turcite B on X and Y Axis
Adjustable gibs throughout

What’s Included:

Power Source	Corded
T-Slot Centers	2-1/2 in
Weight	3969 lbs.
Height	104.25 in.
Width	79.88 in.
Length	92.13 in.
ETL Safety	No
Cross Travel (Y-Axis)	15-1/3 in
Spindle Travel	5 in
No. of T-Slots	3
Voltage	230V
Horsepower	5
Spindle to Column Distance	7-1/2 – 27-3/4 in
Motor Phase	3
Spindle Taper	NST #40
Table Size	12 in x 54 in
CSA Safety	No
PreWired Voltage	460V
Spindle Speed Range	80-3800 RPM
Ram Travel	25 in
T-Slot Size	5/8 in
Table Capacity (lbs.)	925 lbs
Head Movement	90 Degrees R/L
Quill Diameter	4-1/8 in
Quill Down Feed Rates	.0015 – .003 – .008
Motor Type	Brushed
Longitudinal Table Travel (X-Axis)	33-7/8 in
Bluetooth Compatibility	No
Spindle Speeds	Variable
Spindle to Table Distance	23 in
Wifi compatibility	No
UL Safety	No
Warranty Term	2 Year
