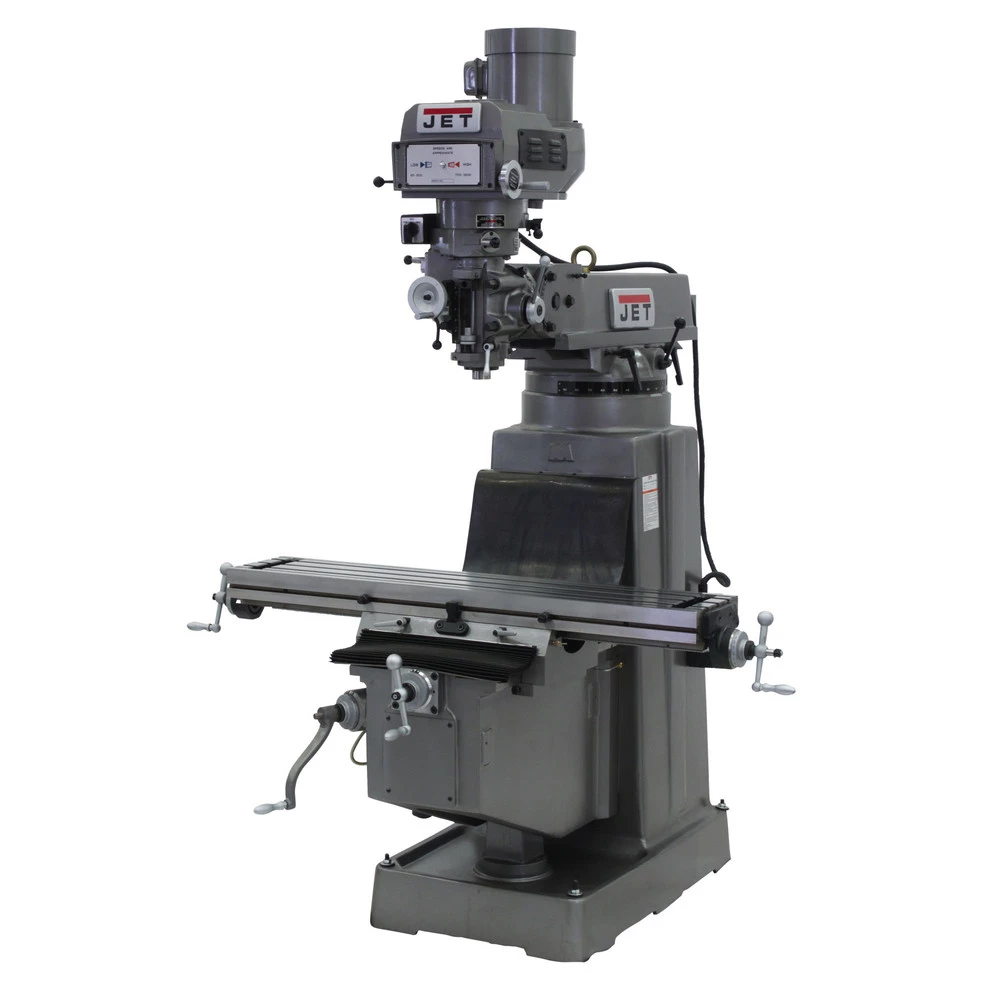

JET JTM-1050 Mill With X & Y Powerfeed Installed

Original price was: $533.00.Current price is: $84.99.

SKU: Milling Machines jetn690150 Categories: Metalworking Tools, Milling Machines, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Features:

Meehanite casting
Hardened and ground table
Chrome lead screws on X and Y axis
Turcite B on X and Y axis
Satin chrome finish on dials
Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearing
Spindle head is internally cooled
No fuse breaker power connection
Heavy duty motor drive
Chrome plated motor shaft with bearing support at end
One piece quill pinion and shaft
Three stage power downfeed with automatic stop
Heavy duty spindle break

What’s Included:

JTM-1050 Mill with X & Y Powerfeed Installed – 690150
Internal Coolant Tank Built (Coolant Pump Not Included)
Tolerance Test Sheet
Way Covers
One Shot Lubrication System
Draw Bar
Tool Box

Power Source	Corded
T-Slot Centers	2-1/2 in
Weight	2900 lbs.
Height	88 in.
Width	78 in.
Length	96 in.
Cross Travel (Y-Axis)	15-1/4 in
Spindle Travel	5 in
No. of T-Slots	3
Voltage	230V
Horsepower	3
Spindle to Column Distance	5-1/2 – 26 in
Motor Phase	3
Spindle Taper	R-8
Table Size	10 in x 50 in
Spindle Speed Range	70-3800 RPM
PreWired Voltage	460V
Ram Travel	20-1/2 in
T-Slot Size	5/8 in
Table Capacity (lbs.)	720 lbs
Head Movement	90 Degrees R/L 45 Degrees F/B
Quill Diameter	3-3/8 in
Quill Down Feed Rates	.0015 – .003 – .006
Motor Type	Brushed
Longitudinal Table Travel (X-Axis)	35 in
Bluetooth Compatibility	No
Spindle Speeds	Variable
Collet Capacity	1/8 in – 7/8 in
Spindle to Table Distance	19 in
Wifi compatibility	No
Warranty Term	2 Year
