Name: Stylish and cheap satisfaction and trustworthy JET JTM-1050 Mill With X Powerfeed Installed
SKU: Milling Machines jetn690120
Price: 89.99 USD
Availability: InStock

Sale!

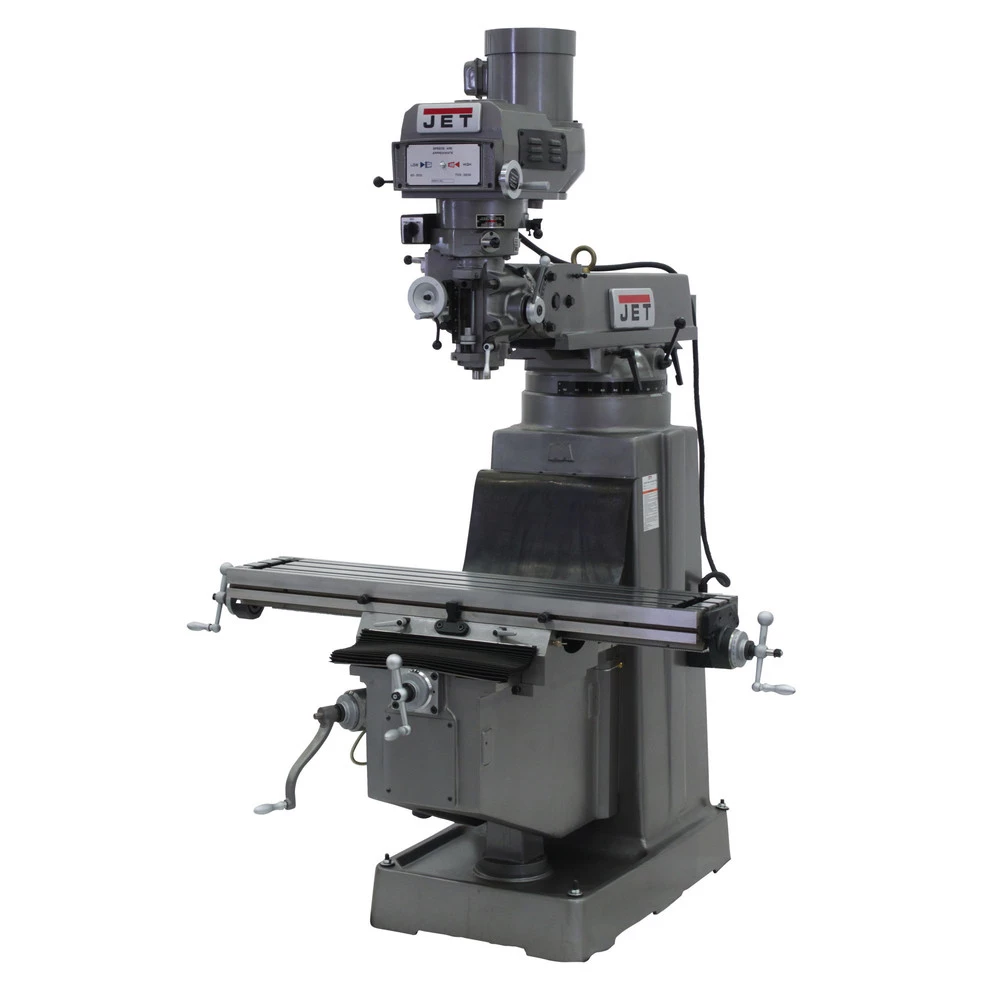

JET JTM-1050 Mill With X Powerfeed Installed

Original price was: $461.00.Current price is: $89.99.

SKU: Milling Machines jetn690120 Categories: Metalworking Tools, Milling Machines, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Features:

Meehanite casting, hardened and ground table
Chrome lead screws on X and Y axis
Turcite B on X and Y axis
Satin chrome finished dials, and large diameter quill is chromed
Precision bored and honed milling head
High precision Class 7 spindle bearings
Spindle head is internally cooled
No fuse breaker power connection
Heavy duty motor drive
Chrome plated motor shaft with bearing support at end
One piece quill pinion and shaft
Three stage power downfeed with automatic stop
Heavy duty spindle brake
Locks on all moveable surfaces
Hardened and ground square vertical knee ways and cross ways

What’s Included:

JTM-1050, Mill with X Powerfeed Installed – 690120
Tolerance Test Sheet Included
One Shot Lubrication System
Way Covers
Tool Box with Tools
Draw Bar

Power Source	Corded
T-Slot Centers	2-1/2 in
Weight	2900 lbs.
Height	88 in.
Width	78 in.
Length	96 in.
Cross Travel (Y-Axis)	15-1/4 in
Spindle Travel	5 in
No. of T-Slots	3
Voltage	230V
Horsepower	3
Spindle to Column Distance	5-1/2 – 26 in
Motor Phase	3
Spindle Taper	R-8
Table Size	10 in x 50 in
Spindle Speed Range	70-3800 RPM
PreWired Voltage	460V
Ram Travel	20-1/2 in
T-Slot Size	5/8 in
Table Capacity (lbs.)	720 lbs
Head Movement	90 Degrees R/L 45 Degrees F/B
Quill Diameter	3-3/8 in
Quill Down Feed Rates	.0015 – .003 – .006
Motor Type	Brushed
Longitudinal Table Travel (X-Axis)	29-3/4 in
Bluetooth Compatibility	No
Spindle Speeds	Variable
Collet Capacity	1/8 in – 7/8 in
Spindle to Table Distance	19 in
Wifi compatibility	No
Warranty Term	2 Year
