Details
Use of static phase converter will void warranty
Features:
- Meehanite casting
- Hardened and ground table
- Chrome lead screws on X and Y axis
- Turcite B on X and Y axis
- Satin chrome finished dials
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision Class 7 spindle bearings
- Spindle head is internally cooled
- No fuse breaker power connection
- Heavy-duty motor drive
- Chrome plated motor shaft with bearing supportat end
- One-piece quill pinion shaft
- Three-stage power downfeed with automatic stop
- Heavy-duty spindle brake
What’s Included:

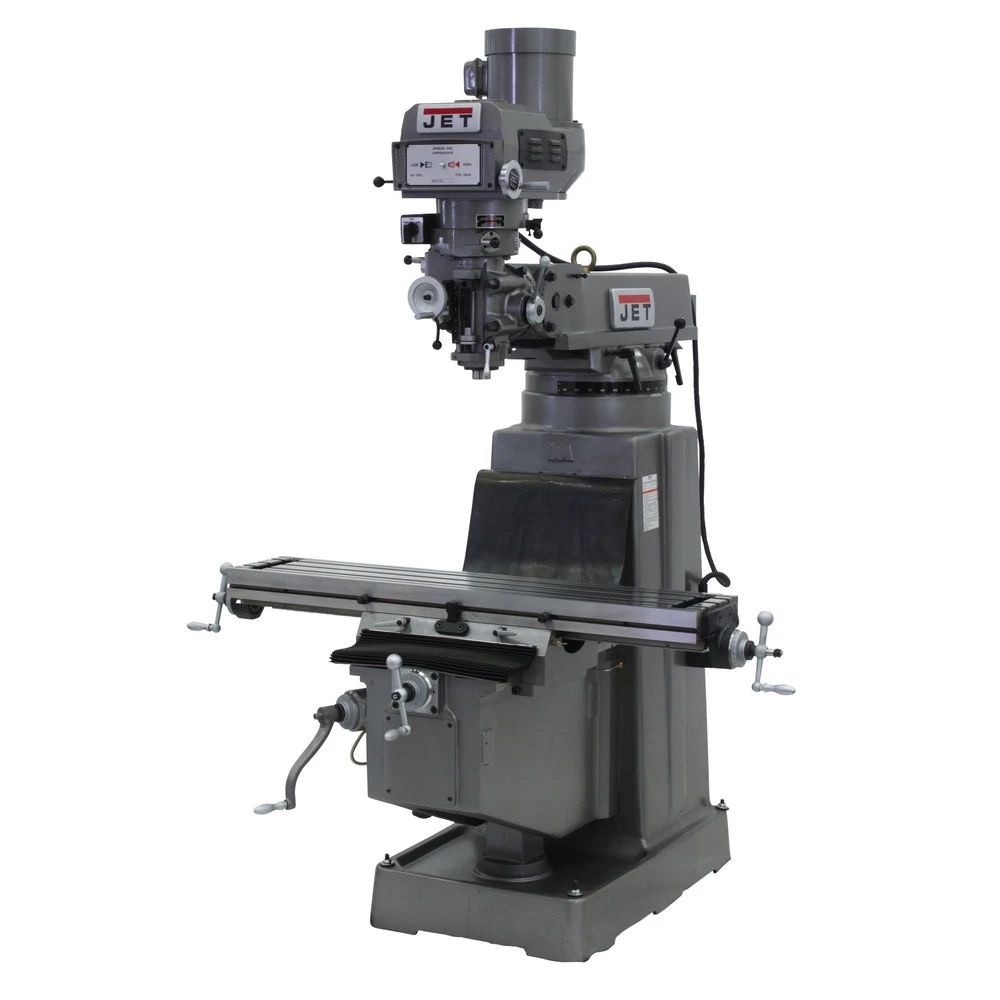

- JTM-1050 Mill with ANILAM 411 DRO and X-TPFA – 690409
- Internal Coolant Tank Built (Coolant Pump Not Included)
- Tolerance Test Sheet Included
- One-Shot Lubrication System
- Way Covers
- Tool Box
- Draw Bar
| Power Source | Corded |
|---|---|
| T-Slot Centers | 2-1/2 in |
| Weight | 2420 lbs. |
| Height | 85 in. |
| Width | 63 in. |
| Length | 65.5 in. |
| ETL Safety | No |
| Cross Travel (Y-Axis) | 12 in |
| Spindle Travel | 5 in |
| No. of T-Slots | 3 |
| Voltage | 460V |
| Horsepower | 3 |
| Spindle to Column Distance | 4-1/2 – 19 in |
| Motor Phase | 3 |
| Spindle Taper | R-8 |
| Table Size | 9 in x 49 in |
| CSA Safety | No |
| PreWired Voltage | 230V |
| Longitudinal Table Travel (X-Axis) | 34 in |
| UL Safety | No |
| Wifi compatibility | No |
| Spindle to Table Distance | 17-1/2 in |
| Collet Capacity | 1/8 in – 7/8 in |
| Spindle Speeds | Variable |
| Bluetooth Compatibility | No |
| Motor Type | Brushed |
| Spindle Speed Range | 60-4200 RPM |
| Quill Down Feed Rates | .0015 – .003 – .006 |
| Quill Diameter | 3-3/8 in |
| Head Movement | 90 Degrees R/L 45 Degrees F/B |
| Table Capacity (lbs.) | 660 lbs |
| T-Slot Size | 5/8 in |
| Ram Travel | 14-1/2 in |
| Warranty Term | 2 Year |
