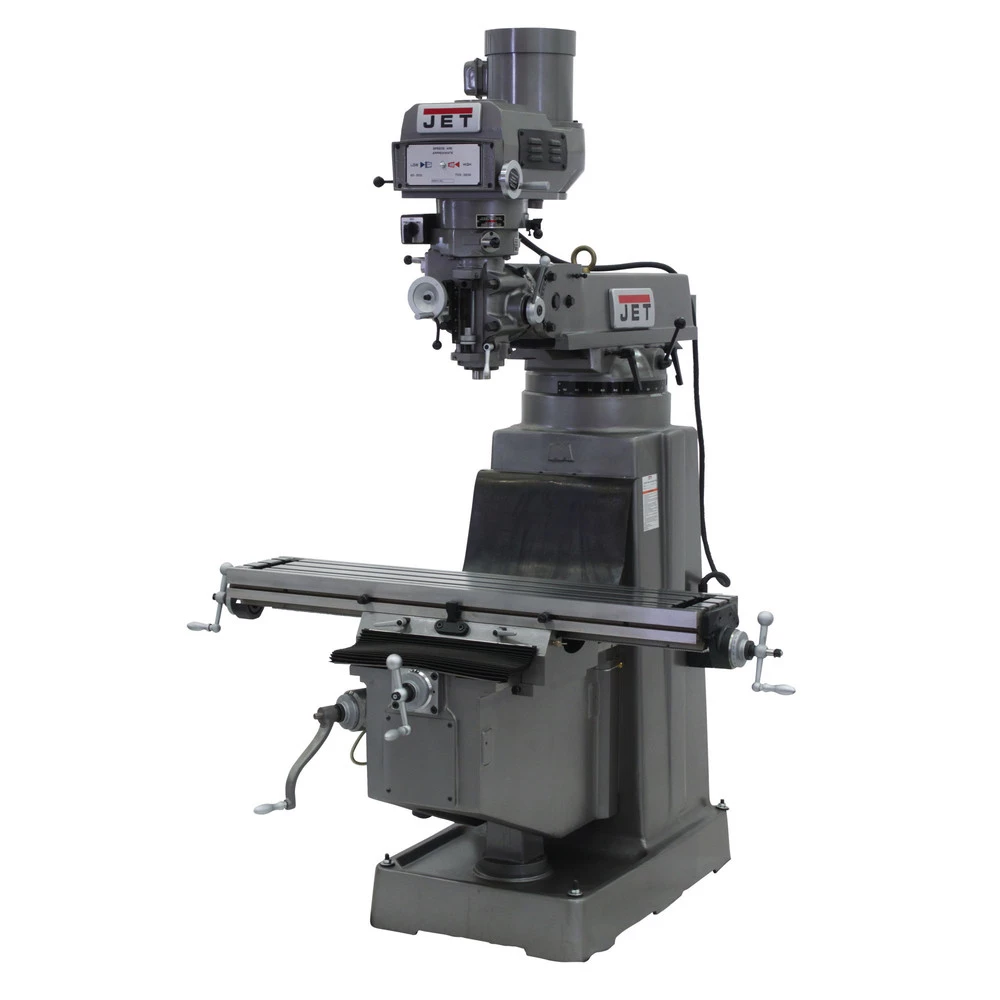

JET JTM-1050 230V Variable Speed Milling Machine With 3-Axis Newall DP700 DRO (Knee)

Original price was: $507.00.Current price is: $88.99.

SKU: Milling Machines jetn691234 Categories: Metalworking Tools, Milling Machines, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

The JET JTM-1050 features Meehanite castings, a heavy-duty hardened and ground 10 in. x 50 in. table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you’ve come to expect, all backed by the industry-leading JET Two Year Warranty.

Features:

Certified Meehanite Castings
Hardened and ground table
Chrome lead screws on X and Y axis
Turcite B on X and Y axis
Satin chrome finish on dials
Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearing
Spindle head is internally cooled
No fuse breaker power connection

What’s Included:

Power Source	Corded
T-Slot Centers	2-1/2 in
Weight	2900 lbs.
Height	88 in.
Width	78 in.
Length	96 in.
ETL Safety	No
Cross Travel (Y-Axis)	15-1/4 in
Spindle Travel	5 in
No. of T-Slots	3
Voltage	230V
Horsepower	3
Spindle to Column Distance	5-1/2 – 26 in
Motor Phase	3
Spindle Taper	R-8
Table Size	10 in x 50 in
CSA Safety	No
PreWired Voltage	460V
Longitudinal Table Travel (X-Axis)	35 in
UL Safety	No
Wifi compatibility	No
Spindle to Table Distance	19 in
Collet Capacity	1/8 in – 7/8 in
Spindle Speeds	Variable
Bluetooth Compatibility	No
Motor Type	Brushed
Spindle Speed Range	70-3800 RPM
Quill Down Feed Rates	.0015 – .003 – .006
Quill Diameter	3-3/8 in
Head Movement	90 Degrees R/L 45 Degrees F/B
Table Capacity (lbs.)	720 lbs
T-Slot Size	5/8 in
Ram Travel	20-1/2 in
Warranty Term	2 Year
