Details
Features:

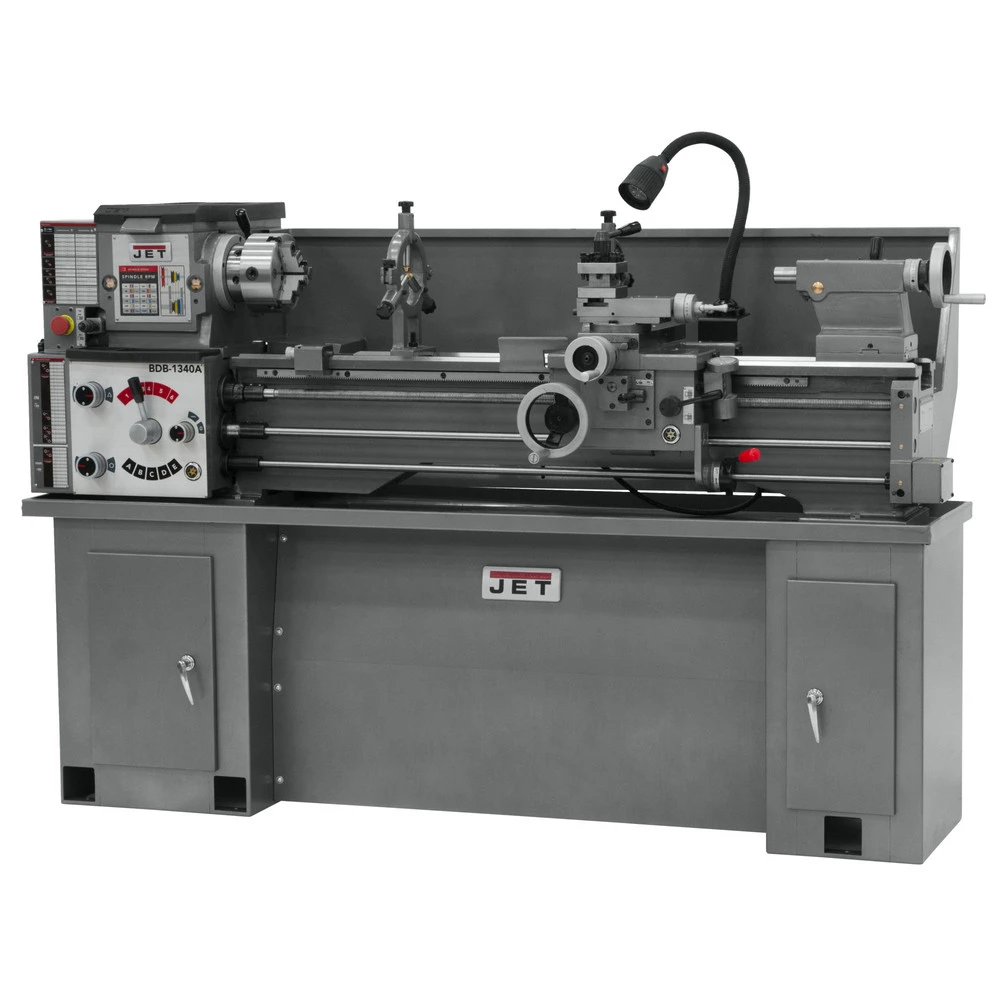

- One of the most popular JET,lathes now comes with an enclosed gear box
- Fast, easy speed changes
- Enclosed gear box design provides smooth, quiet operation
- Hardened and ground gears are featured in the headstock and gearbox
- D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
- Headstock is constantly oiled during operation
- Gear box gives wide inch threading and feed capabilities with no gear changes
- V-way bed design is induction hardened and ground
- Gap bed section provided for larger diameter work
- Independent lead screw and feed rod
What’s Included:
- Lathe w/ CBS-1340A Stand – 321101AK
| Spindle Speed Settings | 8 |
|---|---|
| Follow Rest Capcacity | 2-3/8 in |
| Range of Longitudinal Feed Rates (IPR) | 0.0018-0.0374 in |
| Spindle Taper (Tailstock) | MT-3 |
| Horsepower | 3 |
| Voltage | 230V/460V |
| Spindle Mount Taper | Yes |
| Carriage Travel | 35 in |
| Spindle Travel (Tailstock) | 3-3/4 in |
| Drive Type | Geared Head Clutch |
| No. of Longitudinal Feed Rates | 40 |
| Gap Length | 8 in |
| No. of Cross Feed Rates | 40 |
| Swing Range (Bed) | 13 in |
| ETL Safety | No |
| Spindle Mount | Yes |
| Length | 71 in. |
| Width | 32 in. |
| Height | 47 in. |
| Weight | 1154 lbs. |
| Motor Phase | 3 |
| Tool Size | 5/8 x 5/8 in |
| Power Source | Corded |
| Cross Slide Travel | 6-5/16 in |
| Range of Inch Threads (TPI) | 3-1/2 – 80 |
| Spindle Bore Diameter | 1-3/8 in |
| PreWired Voltage | 230V |
| UL Safety | No |
| Bed Width | 7-3/8 in |
| Swing Range (Cross Slide) | 7-25/32 in |
| No. of Inch Threads | 38 |
| Bed Construction | Cast Iron |
| Motor Type | Brushed |
| Distance Between Centers | 40 in |
| Spindle Speed Range (RPM) | 2000 |
| Compound Slide Travel | 2-11/16 in |
| Range of Metric Threads | 0.45 – 10 |
| Steady Rest Capacity | 2-3/4 in |
| No. of Metric Threads | 23 |
| Range of Cross Feeds (IPR) | 0.0006 – 0.0130 |
| Swing Range (Gap) | 18-3/4 in |
| CSA Safety | No |
| Warranty Term | 2 Year |
