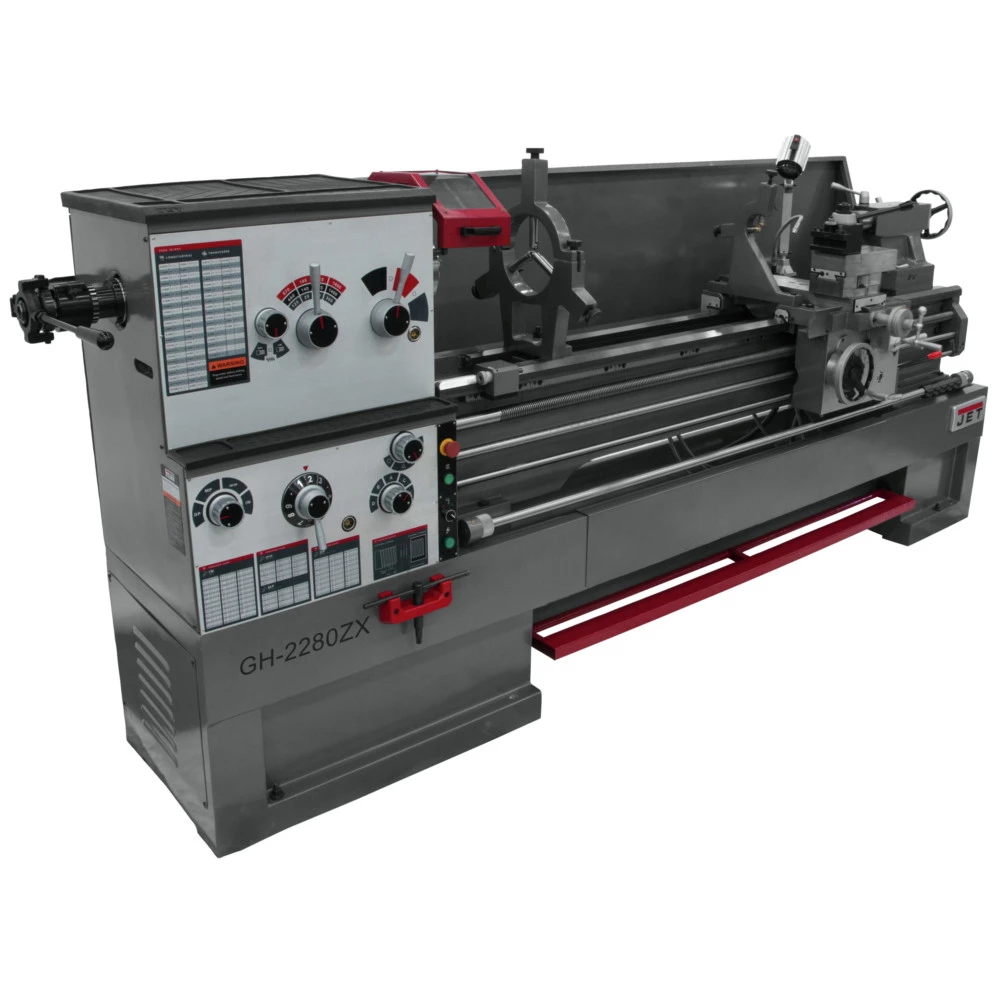

JET GH-2280ZX Lathe With Taper Attachment And Collet Closer

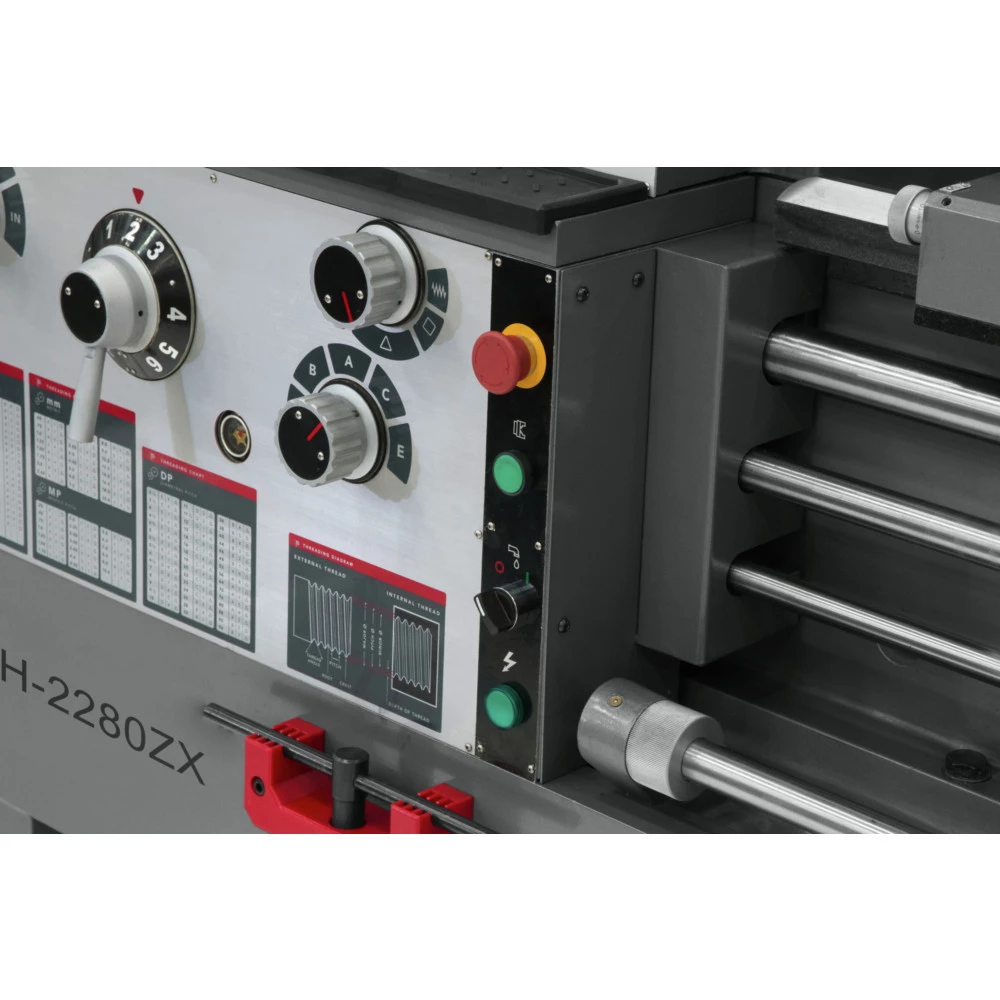

JET GH-2280ZX Lathe With Taper Attachment And Collet Closer - Image 2

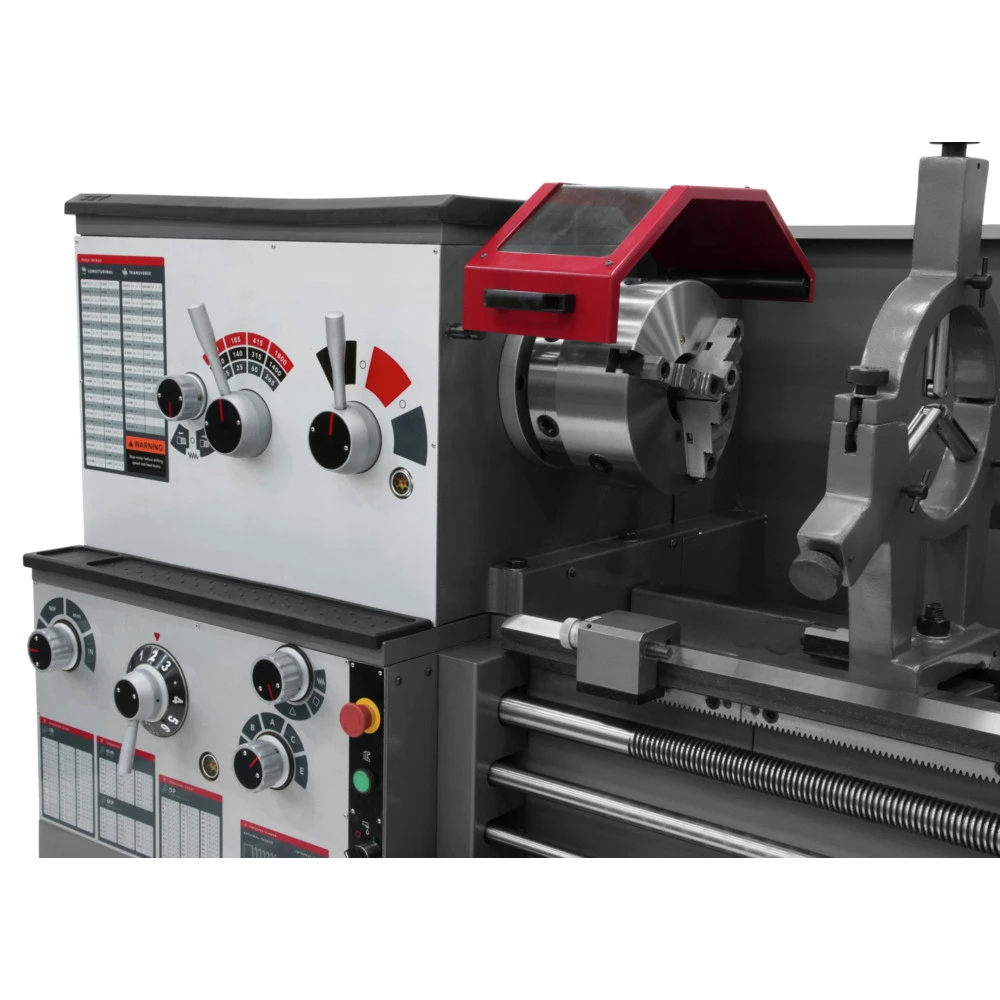

JET GH-2280ZX Lathe With Taper Attachment And Collet Closer - Image 3

Original price was: $452.00.Current price is: $92.99.

SKU: Metal Lathes jetn321575 Categories: Metal Lathes, Metalworking Tools, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Features:

ISO 9001 certified manufacturer
3-1/8 in. bore spindle is supported by two tapered and one ball bearing
Chrome molybdenum headstock gears are hardened, ground and shaved
Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
Universal gearbox allows inch, metric, diametral and module pitch threads, no gear change required
T-slotted compound slide featuring a four-way tool post
One piece cast iron base absorbs vibration allowing heavier cuts
High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground
Removable gap allows up to 23-5/8 in. diameter work on 16 in. and 27-1/2 in. on 18 in.
Five position automatic carriage stop increases productivity
Attractive chrome control levers, dials and knobs complete this impressive package

What’s Included:

GH-2280ZX Lathe with Taper Attachment and Collet Closer – 321575
10 in. 3-Jaw Chuck with Top Reversing Jaws
12 in. 4-Jaw Chuck
16 in. Face Plate
4-Way Tool Post
Follow Rest
Large Capacity Steady Rest
Fully Integrated Coolant System
Full Length Splash Guard and Coolant System
Large, Easy-To-Use Foot Brake
Articulating Halogen Work Lamp
Centrally Located Controls with Jog Button
Threading Dial
Mounting Pads and Levelers
Spindle Sleeve (MT-7 and MT-5)
Dead Center and Live Center
Tool Box and Adjusting Tools

Spindle Speed Settings	12
Follow Rest Capcacity	1/2 – 3-1/2 in
Spindle Taper (Tailstock)	MT-5
Horsepower	10
Voltage	230V
Spindle Mount Taper	Yes
Carriage Travel	74-5/16 in
Spindle Travel (Tailstock)	5 in
Drive Type	Geared Head Clutch
No. of Longitudinal Feed Rates	46
Motor Phase	3
No. of Cross Feed Rates	31
Swing Range (Bed)	22 in
Spindle Mount	Yes
Length	136 in.
Width	45 in.
Height	71 in.
Weight	6933 lbs.
Range of Longitudinal Feed Rates (IPR)	0.0015-0.0900 in
Gap Length	12 in
Power Source	Corded
Cross Slide Travel	12 in
Range of Inch Threads (TPI)	1-5/8 – 72
Spindle Bore Diameter	3-1/8 in
PreWired Voltage	460V
Bed Width	13-1/8 in
Swing Range (Cross Slide)	13 in
No. of Inch Threads	61
Bed Construction	Cast Iron
Motor Type	Brushed
Tool Size	1 x 1 in
Spindle Speed Range (RPM)	1800
Compound Slide Travel	5-1/8 in
Range of Metric Threads	0.05 – 20
Steady Rest Capacity	3/8 in – 7-3/4 in
No. of Metric Threads	24
Range of Cross Feeds (IPR)	0.0006 – 0.0360
Swing Range (Gap)	29-1/2 in
Distance Between Centers	80 in
Warranty Term	2 Year
