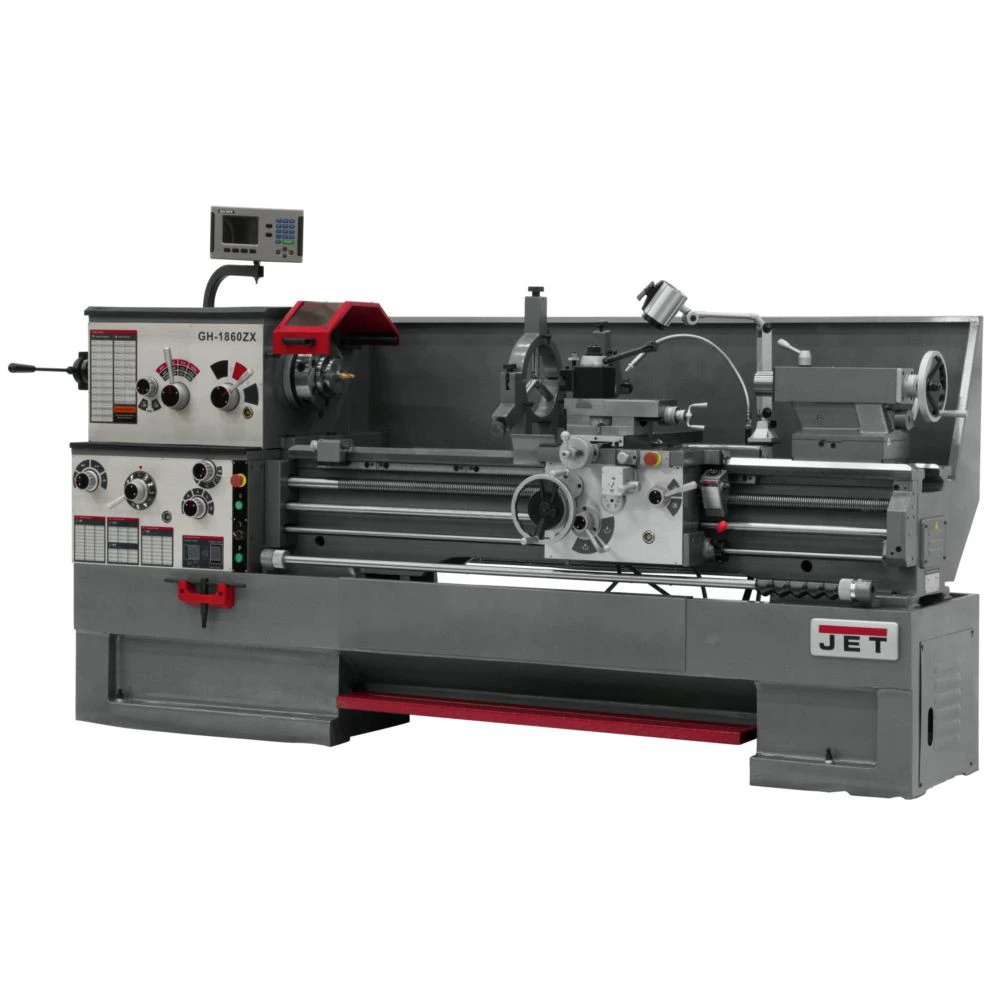

JET GH-1660ZX Lathe With C80 With Collet Closer & Taper

Original price was: $479.00.Current price is: $91.99.

SKU: Metal Lathes jetn321502 Categories: Metal Lathes, Metalworking Tools, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Features:

Uniquely designed exclusively by JET
ISO9001 certified manufacturer
3-1/8 in. bore spindle is supported by two tapered and one ball bearing
Chrome molybdenum headstock gears are hardened, ground and shaved
Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
T-slotted compound slide featuring four-way tool post
One piece cast iron base absorbs vibration allowing heavier cuts
High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground
Removable gap allows up to 23-5/8 in. diameter work on 16 in, 27-1/2 in. on 18 in.
Five position automatic carriage stop increases productivity
Attractive chrome levers, dials and knobs complete this impressive package
Tolerance test certificate included

What’s Included:

GH-1660ZX with C80 with Collet Closer & Taper – 321502
10 in. 3 Jaw Chuck With Top Reversing Jaws
12 in. Independent 4-Jaw Chuck
12 in. Face Plate (16 in. Models)
Four-Way Tool Post
Large Capacity Steady Rest
Fully Integrated Coolant System
Full Length Splash Guard and Coolant Return
Large Foot Brake
Articulating Halogen Work Lamp
Centrally Located Controls with Jog Button
Threading Dial
Mounting Pads and Levelers
Spindle Sleeve (MT-7 to MT-5)
Dead Center
Live Center

Spindle Speed Settings	12
Follow Rest Capcacity	1/2 – 3-1/2 in
Spindle Taper (Tailstock)	MT-5
Horsepower	7.5
Voltage	230V
Spindle Mount Taper	Yes
Carriage Travel	55-9/16 in
Spindle Travel (Tailstock)	5 in
Drive Type	Geared Head Clutch
No. of Longitudinal Feed Rates	46
Motor Phase	3
No. of Cross Feed Rates	31
Swing Range (Bed)	16 in
Spindle Mount	Yes
Length	115 in.
Width	44 in.
Height	66 in.
Weight	5795 lbs.
Range of Longitudinal Feed Rates (IPR)	0.0015-0.0900 in
Gap Length	12-1/4 in
Power Source	Corded
Cross Slide Travel	9 in
Range of Inch Threads (TPI)	1-5/8 – 72
Spindle Bore Diameter	3-1/8 in
PreWired Voltage	460V
Bed Width	13-3/8 in
Swing Range (Cross Slide)	10 in
No. of Inch Threads	61
Bed Construction	Cast Iron
Motor Type	Brushed
Tool Size	1 x 1 in
Spindle Speed Range (RPM)	1800
Compound Slide Travel	5-1/8 in
Range of Metric Threads	0.05 – 20
Steady Rest Capacity	3/8 in – 7 in
No. of Metric Threads	24
Range of Cross Feeds (IPR)	0.0006 – 0.0360
Swing Range (Gap)	25-1/2 in
Distance Between Centers	60 in
Warranty Term	2 Year
