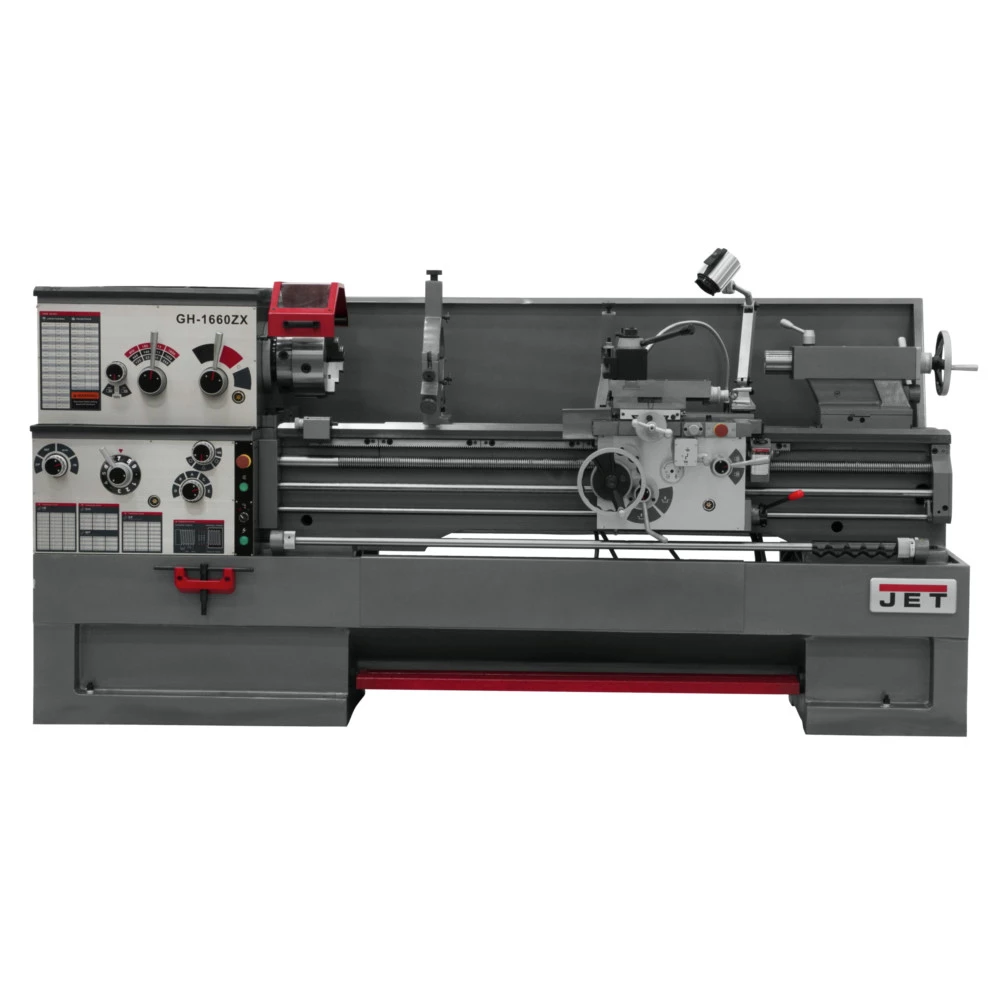

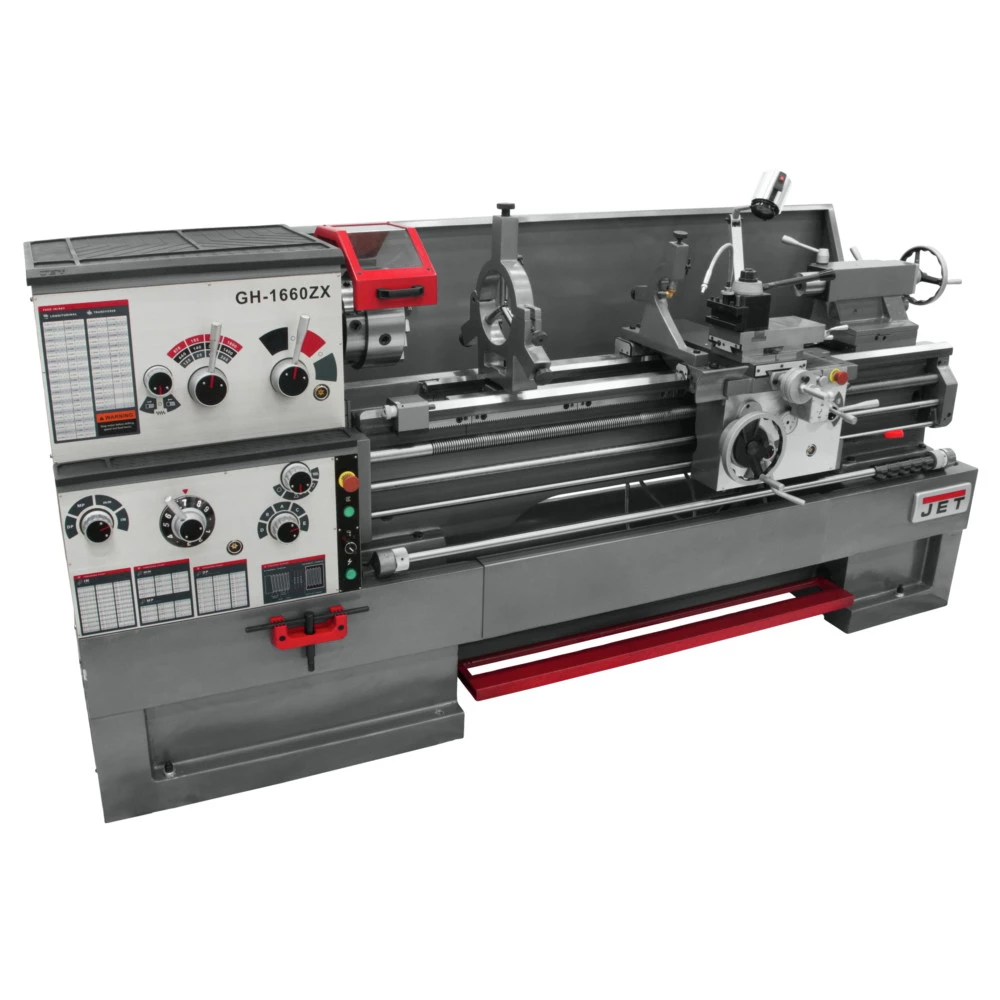

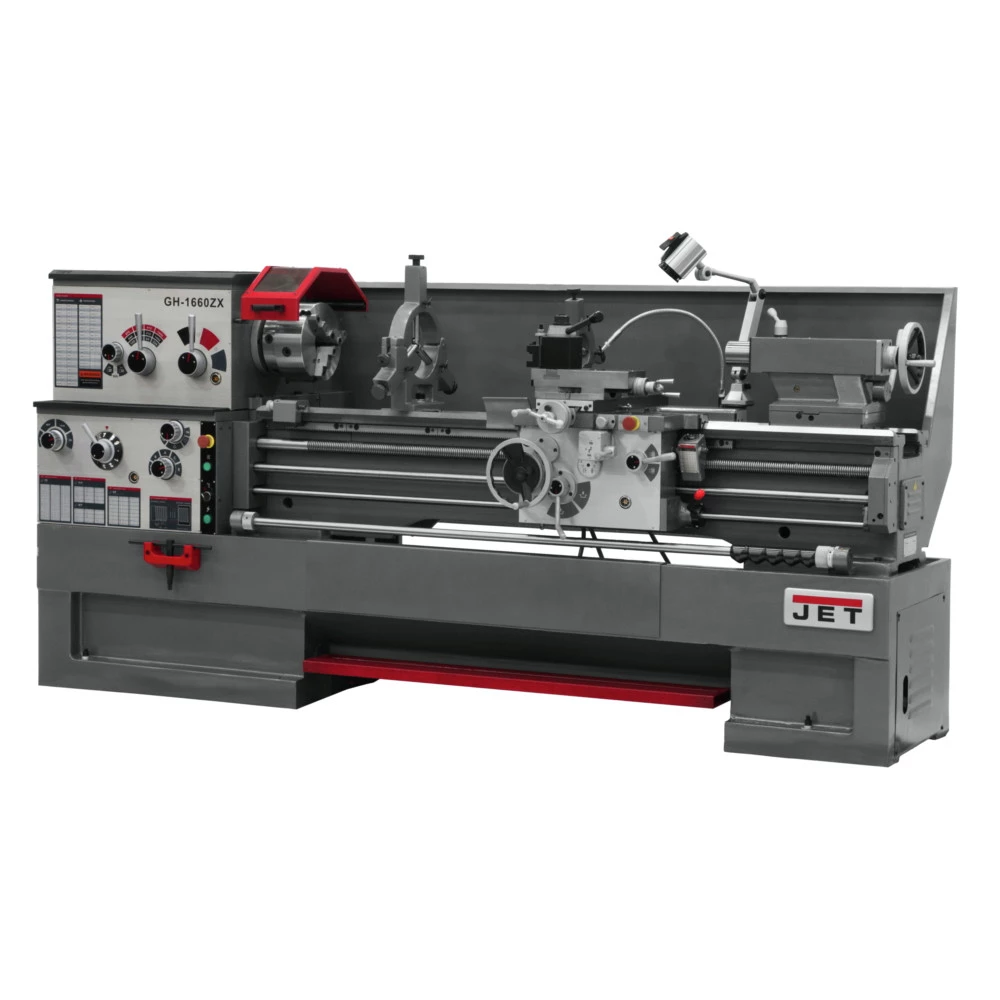

JET GH-1660ZX 16 In. X 60 In. 7-1/2 HP 3-Phase ZX Series Large Spindle Bore Lathe

JET GH-1660ZX 16 In. X 60 In. 7-1/2 HP 3-Phase ZX Series Large Spindle Bore Lathe - Image 2

JET GH-1660ZX 16 In. X 60 In. 7-1/2 HP 3-Phase ZX Series Large Spindle Bore Lathe - Image 3

Original price was: $423.00.Current price is: $90.99.

SKU: Metal Lathes jetn321940 Categories: Metal Lathes, Metalworking Tools, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you’ve come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

Features:

Uniquely designed exclusively by JET,
ISO 9001 certified manufacturer
Chrome molybdenum headstock gears are hardened, ground, and shaved
3-1/8 in. bore spindle is supported by two tapered and one ball bearing
Universal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required
Carriage Feature one-shot lubrication and Turcite B on bed sliding surfaces
T-slotted compound slide featuring a four-way tool post
One-piece cast iron base absorbs vibration allowing heavier cuts
High quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground

What’s Included:

16 in. x 60 in. 7-1/2 HP 3-Phase ZX Series Large Spindle Bore Lathe – 321940
10 in. 3-Jaw Chuck w/ Top Reversing Jaws
12 in. 4-Jaw Chuck
12 in. Face Plate
Four-Way Tool Rest
Follow Rest
Large Capacity Steady Rest
Fully Integrated Coolant System
Full Length Splash Guard &amp, Coolant Return
Large Easy-to-Use Foot Brake
Articulating Halogen Work Lamp
Centrally Located Controls w/ Jog Button
Threading Dial
Mounting Pads &amp, Levelers
Spindle Sleeve (MT-7 to MT-5)
Dead Center
Live Center
Tool Box &amp, Adjusting Tools

Spindle Speed Settings	12
Follow Rest Capcacity	1/2 – 3-1/2 in
Carriage Travel	55-9/16 in
Spindle Speed Range (RPM)	1800
Compound Slide Travel	5-1/8 in
Range of Metric Threads	0.05 – 20
Spindle Travel (Tailstock)	5 in
Steady Rest Capacity	3/8 in – 7 in
No. of Metric Threads	24
Drive Type	Geared Head Clutch
No. of Longitudinal Feed Rates	46
Voltage	230V
No. of Cross Feed Rates	31
Swing Range (Bed)	16 in
ETL Safety	No
Spindle Mount	Yes
Length	115 in.
Width	44 in.
Height	66 in.
Weight	5795 lbs.
Spindle Mount Taper	Yes
Motor Type	Brushed
Power Source	Corded
Bed Width	13-1/8 in
Range of Inch Threads (TPI)	1-5/8 – 72
Spindle Bore Diameter	3-1/8 in
PreWired Voltage	460V
UL Safety	No
Range of Cross Feeds (IPR)	0.0006 – 0.0360
Swing Range (Gap)	25-1/2 in
CSA Safety	No
Distance Between Centers	60 in
Tool Size	1 x 1 in
Horsepower	7.5
Gap Length	12 in
Swing Range (Cross Slide)	10 in
No. of Inch Threads	61
Motor Phase	3
Range of Longitudinal Feed Rates (IPR)	0.0015-0.0900 in
Bed Construction	Cast Iron
Spindle Taper (Tailstock)	MT-3
Cross Slide Travel	9 in
Warranty Term	2 Year
