Name: Multi-functional design JET BPF-1248 48 In. X 12 Gauge Floor Model Box & Pan Brake at Jet-sale.com
SKU: Metal Forming jetn754110
Price: 85.99 USD
Availability: InStock

Sale!

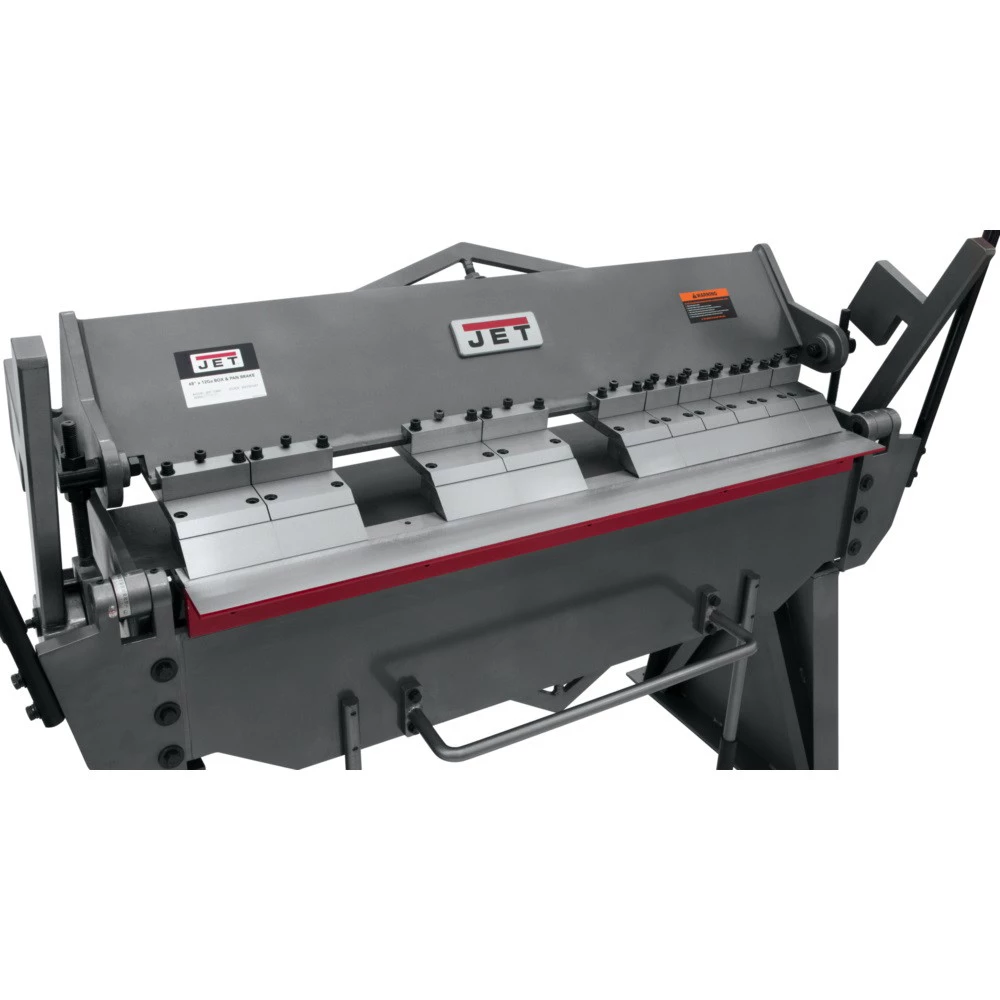

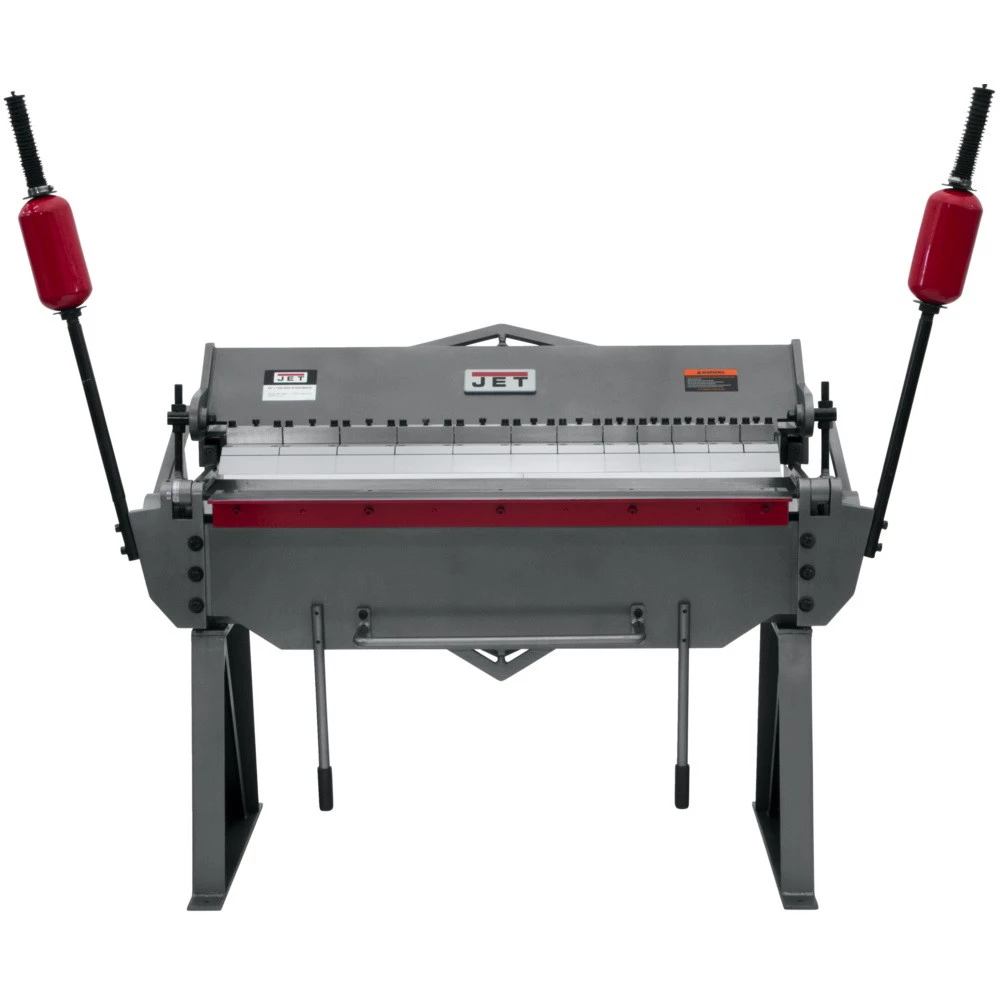

JET BPF-1248 48 In. X 12 Gauge Floor Model Box & Pan Brake

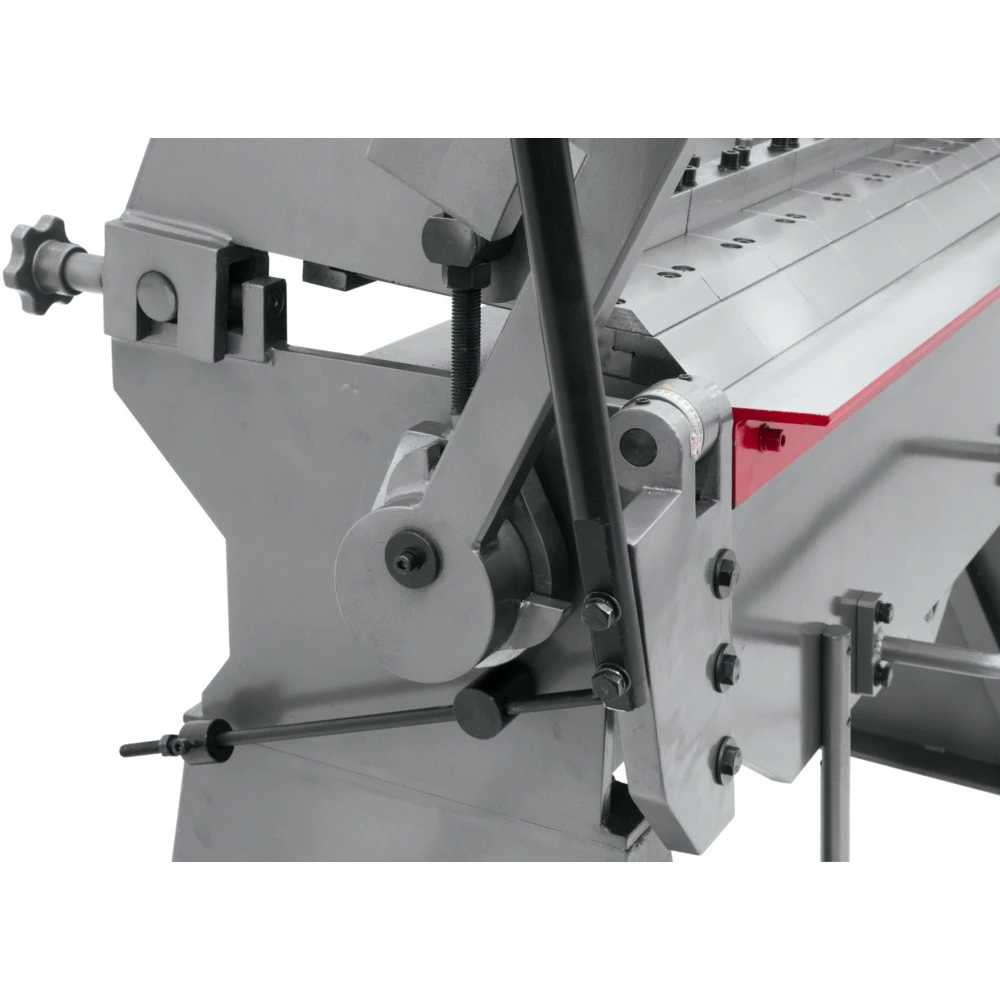

JET BPF-1248 48 In. X 12 Gauge Floor Model Box & Pan Brake - Image 2

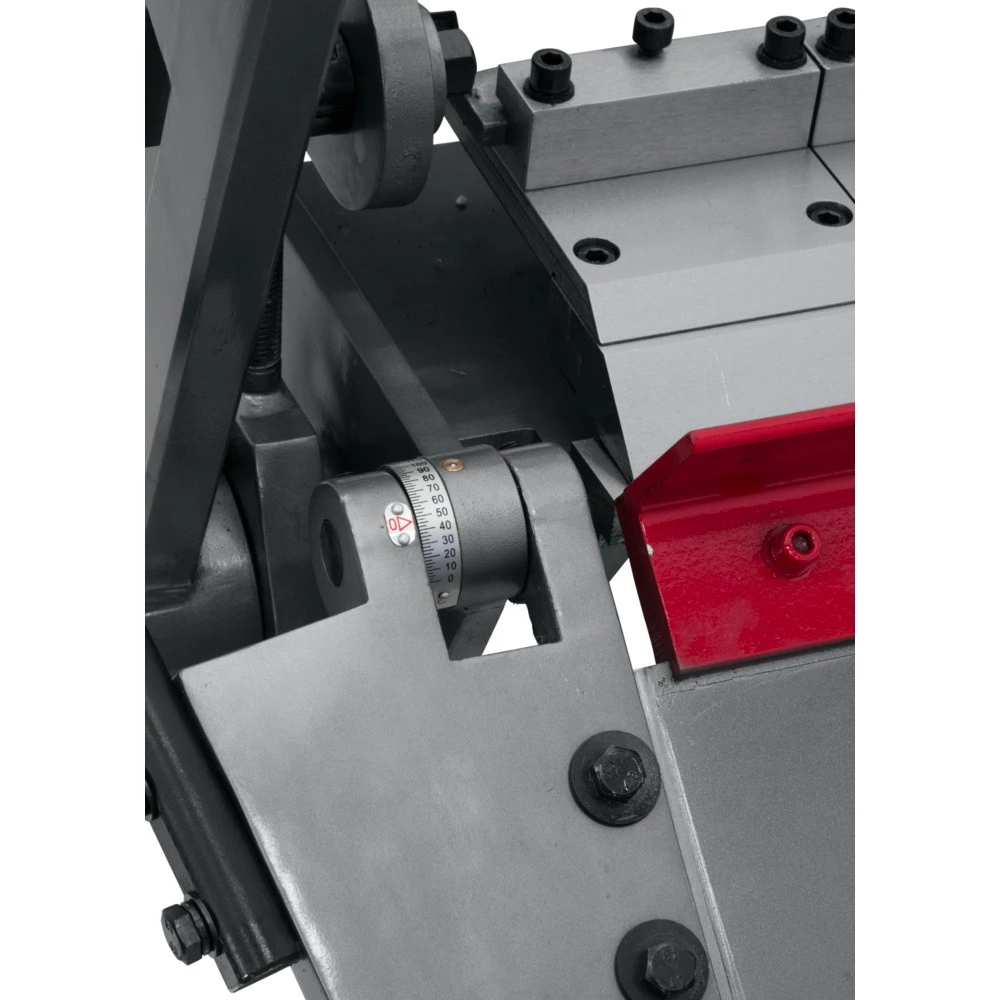

JET BPF-1248 48 In. X 12 Gauge Floor Model Box & Pan Brake - Image 3

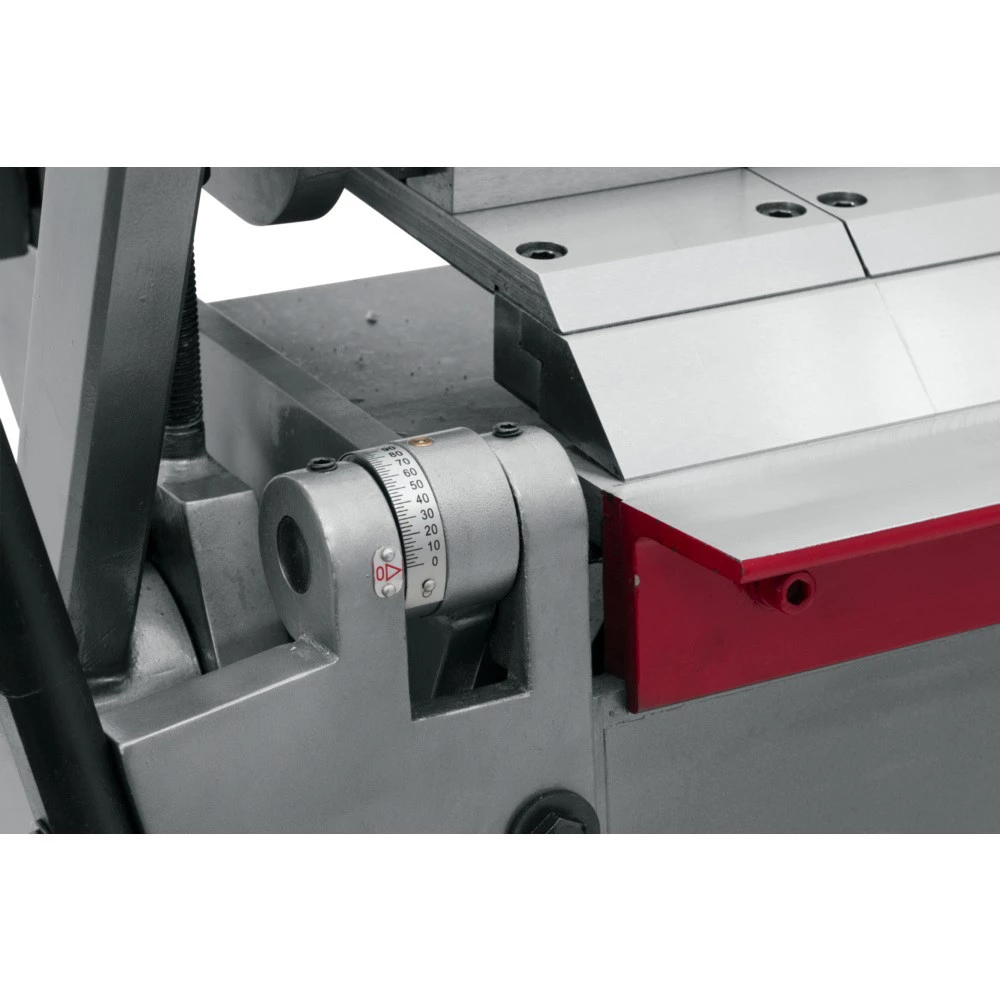

JET BPF-1248 48 In. X 12 Gauge Floor Model Box & Pan Brake - Image 4

JET BPF-1248 48 In. X 12 Gauge Floor Model Box & Pan Brake - Image 5

JET BPF-1248 48 In. X 12 Gauge Floor Model Box & Pan Brake - Image 6

JET BPF-1248 48 In. X 12 Gauge Floor Model Box & Pan Brake - Image 7

Original price was: $515.00.Current price is: $85.99.

SKU: Metal Forming jetn754110 Categories: Metal Forming, Metalworking Tools, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Box and Pan Brakes from JET are perfect for the larger, high volume shop that requires versatility yet demands rugged durability and bending precision.

Features:

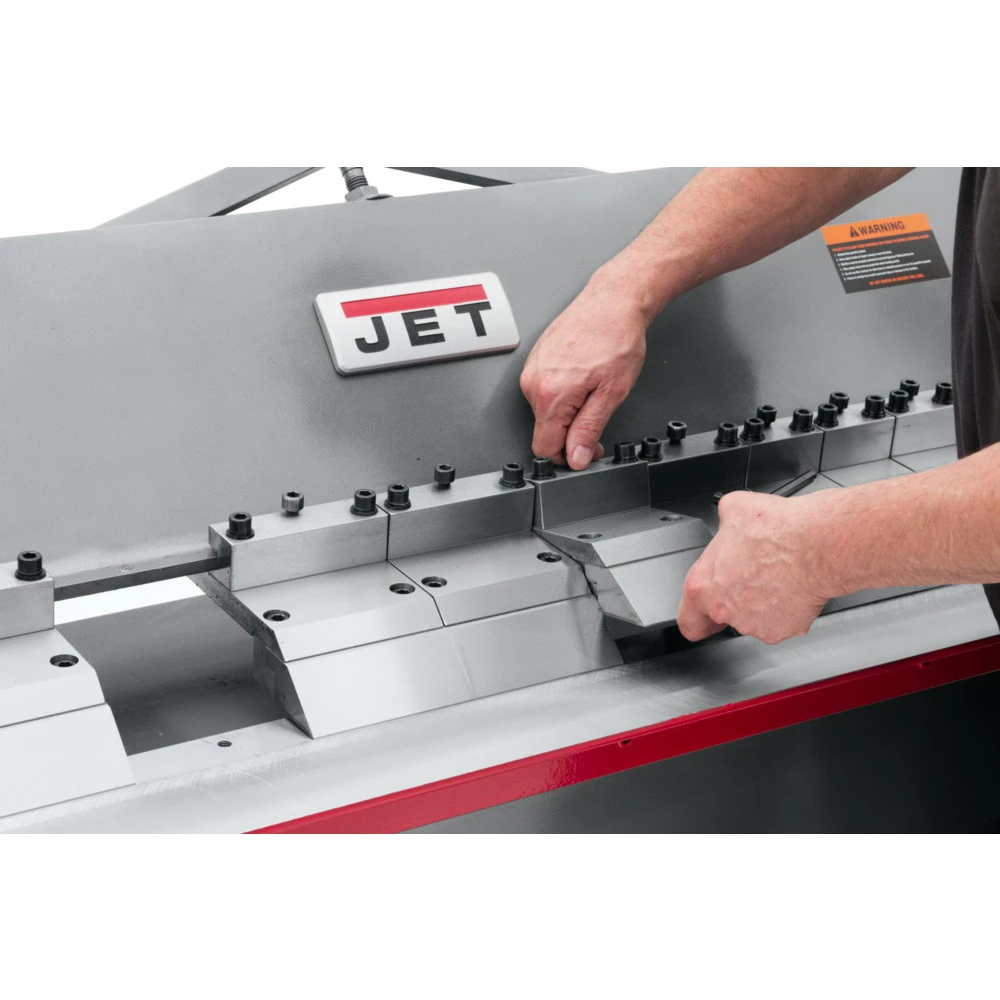

Wide assortment of finger widths allow greater versatility in the shop
With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
Both the bed and apron are bored in line to assure the utmost accuracy
Counter weights can be moved up or down to adjust desired leverage
Stop rod for repeatable bending

What’s Included:

BPF-1248 48 in. x 12 Gauge Floor Model Box & Pan Brake – 754110

Bending Capacity (Length)	48 in
Beam Adjustment (Front to Rear)	7/8 in
Capacity (Mild Steel)	12 ga
Finger Nose Radius	1/32 in
Width of Fingers	5 @ 3 in / 2 @ 4 in / 5 @ 5 in
Finger Nose Angle	45 Degrees
No. of Fingers	12
Life of Beam (Max.)	1-1/2 in
Box Depth (Max.)	4 in
Length	87 in.
Width	59 in.
Height	70 in.
Weight	1110 lbs.
Warranty Term	2 Year
