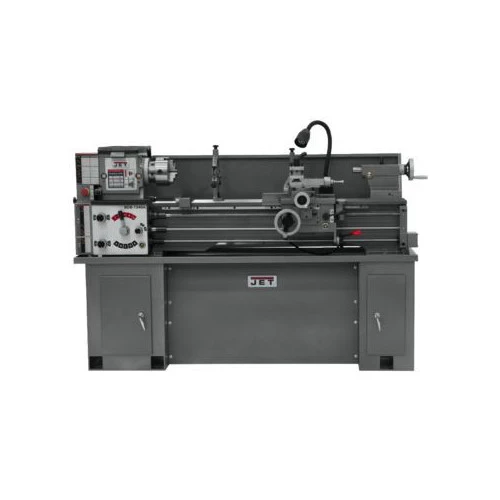

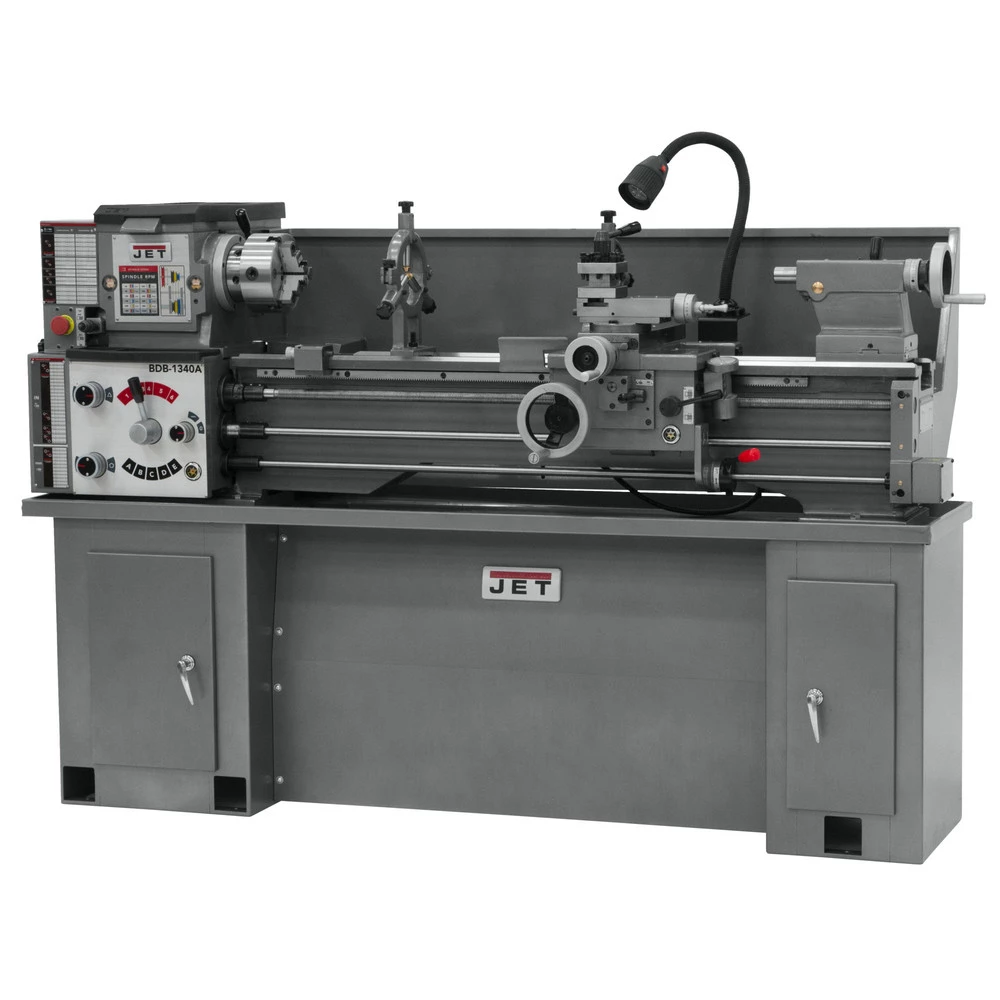

JET BDB-1340A Belt Drive Bench Metal Lathe With Taper Attachment

JET BDB-1340A Belt Drive Bench Metal Lathe With Taper Attachment - Image 2

Original price was: $556.00.Current price is: $88.99.

SKU: Metal Lathes jetn321120 Categories: Metal Lathes, Metalworking Tools, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

JET’s Belt Drive Bench Lathes feature an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full length splash guard prevents hot chips and fluid from contamination the work area, and the quick change gearbox allows for fast and easy gear changes for metric threading. Each JET Lathe comes loaded with professional features you’ve come to expect, all backed by the industry leading JET Red Assurance two-year warranty.

Features:

Enclosed gearbox design provides smooth and quiet operation
Helical cut headstock gears help reduce noise pollution in the workshop
Induction hardened and ground V-Way bed for maximum precision and service life
T-Slotted compound slide featuring four way tool post
Carriage mounted spindle control lever
Automatic feeding and threading are fully interlocked

What’s Included:

BDB-1340A Belt Drive Bench Metal Lathe with Taper Attachment

Spindle Speed Settings	12
Follow Rest Capcacity	2-3/4 in
Range of Longitudinal Feed Rates (IPR)	0.0018-0.0374 in
Spindle Taper (Tailstock)	MT-3
Horsepower	2
Voltage	230V
Spindle Mount Taper	Yes
Carriage Travel	35 in
Spindle Travel (Tailstock)	3-3/4 in
Drive Type	Belt
No. of Longitudinal Feed Rates	38
Gap Length	8 in
No. of Cross Feed Rates	38
Swing Range (Bed)	13 in
ETL Safety	No
Spindle Mount	Yes
Length	71 in.
Width	32 in.
Height	45 in.
Weight	1175 lbs.
Motor Phase	1
Tool Size	5/8 x 5/8 in
Power Source	Corded
Cross Slide Travel	6-5/16 in
Range of Inch Threads (TPI)	3-1/2 – 80
Spindle Bore Diameter	1-3/8 in
PreWired Voltage	230V
UL Safety	No
Bed Width	7-3/8 in
Swing Range (Cross Slide)	7-25/32 in
No. of Inch Threads	38
Bed Construction	Cast Iron
Motor Type	Brushed
Distance Between Centers	40 in
Spindle Speed Range (RPM)	1240
Compound Slide Travel	2-11/16 in
Range of Metric Threads	0.45 – 10
Steady Rest Capacity	2-5/8 in
No. of Metric Threads	23
Range of Cross Feeds (IPR)	0.0006 – 0.013
Swing Range (Gap)	18-3/4 in
CSA Safety	No
Warranty Term	2 Year
