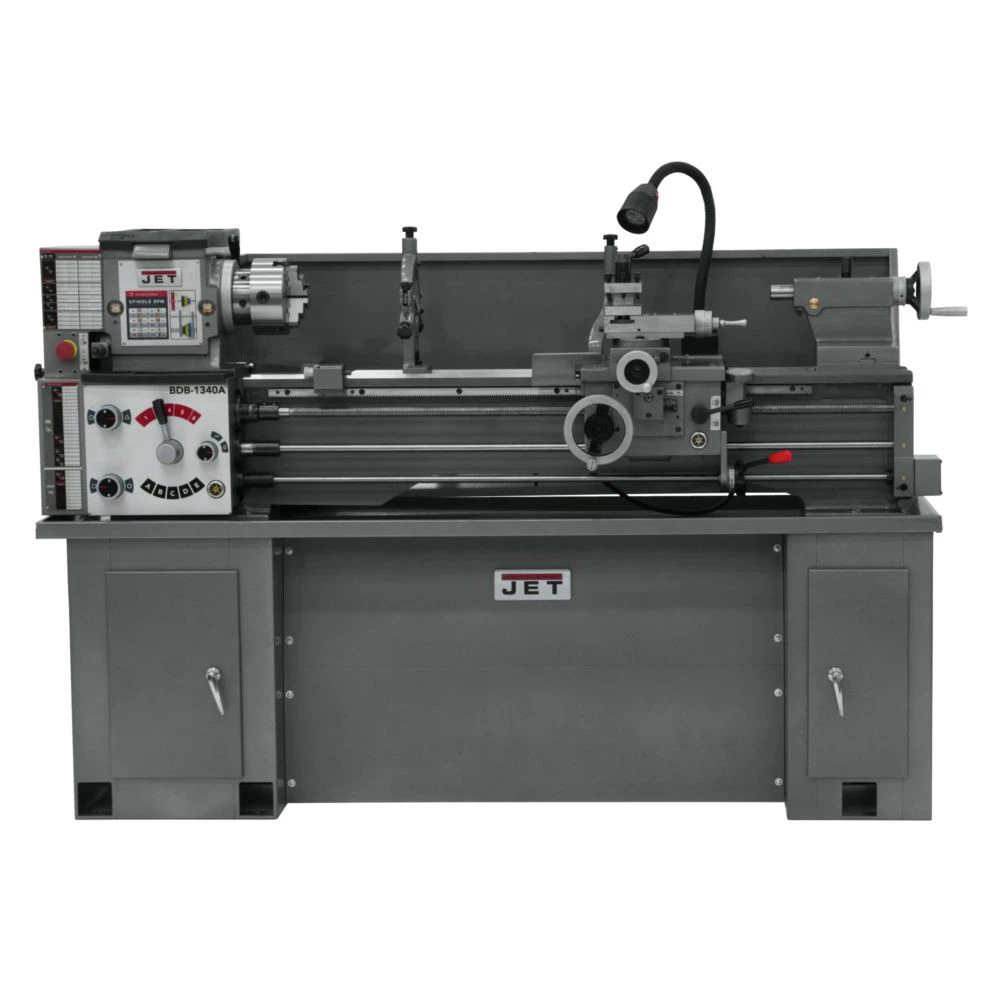

JET BDB-1340A 13 In. X 40 In. 2 HP 1-Phase Belt Drive Bench Lathe

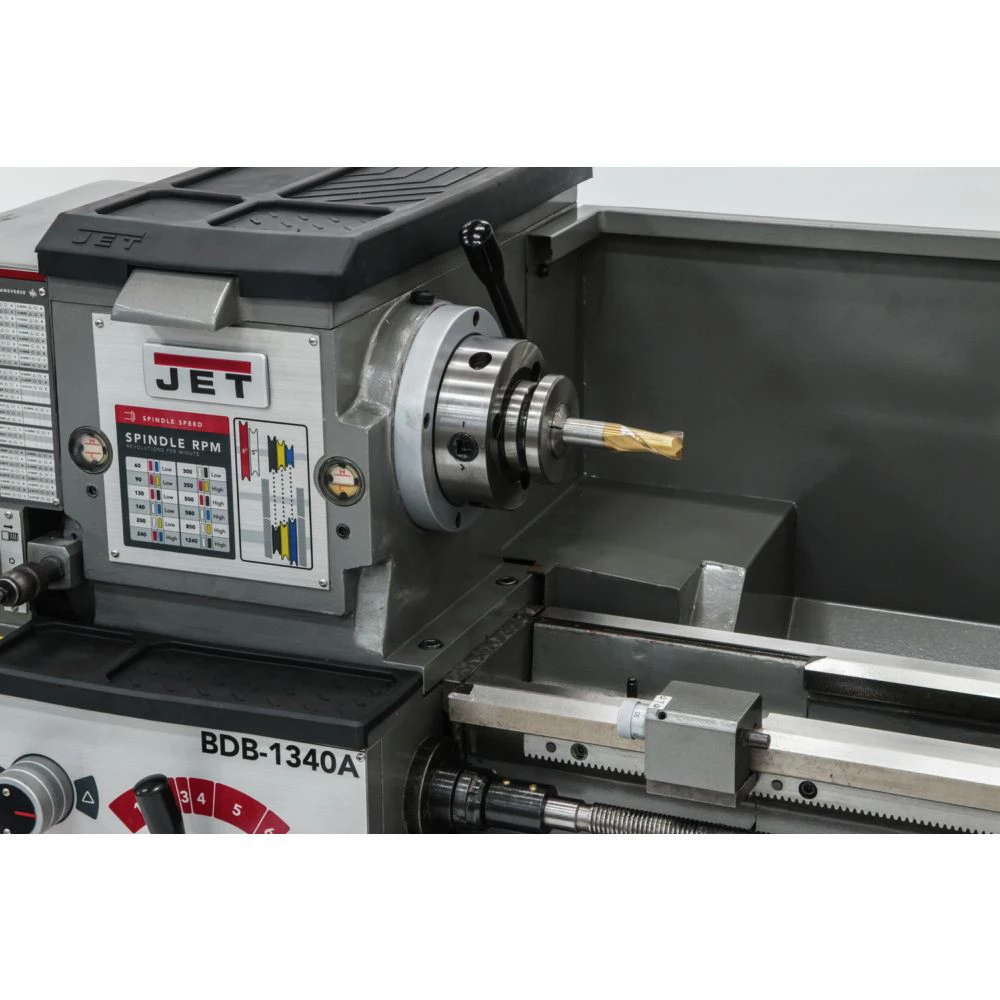

JET BDB-1340A 13 In. X 40 In. 2 HP 1-Phase Belt Drive Bench Lathe - Image 2

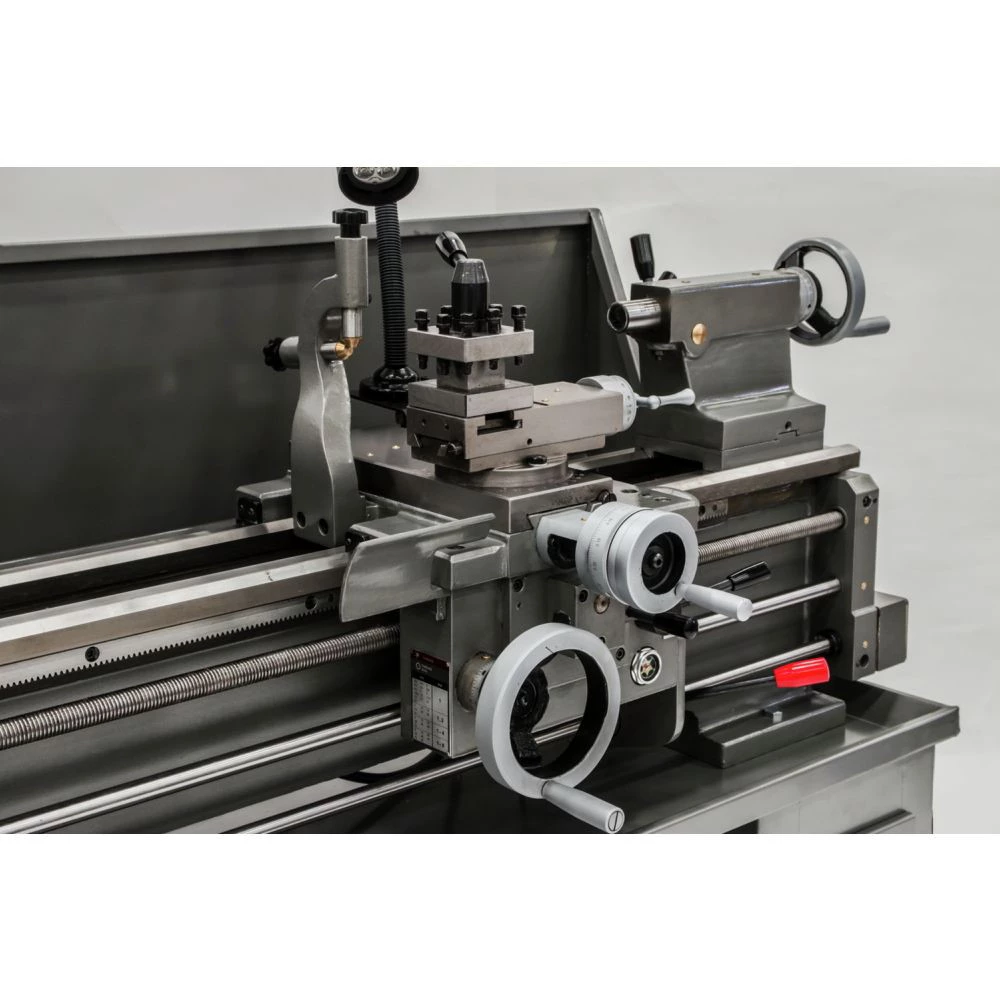

JET BDB-1340A 13 In. X 40 In. 2 HP 1-Phase Belt Drive Bench Lathe - Image 3

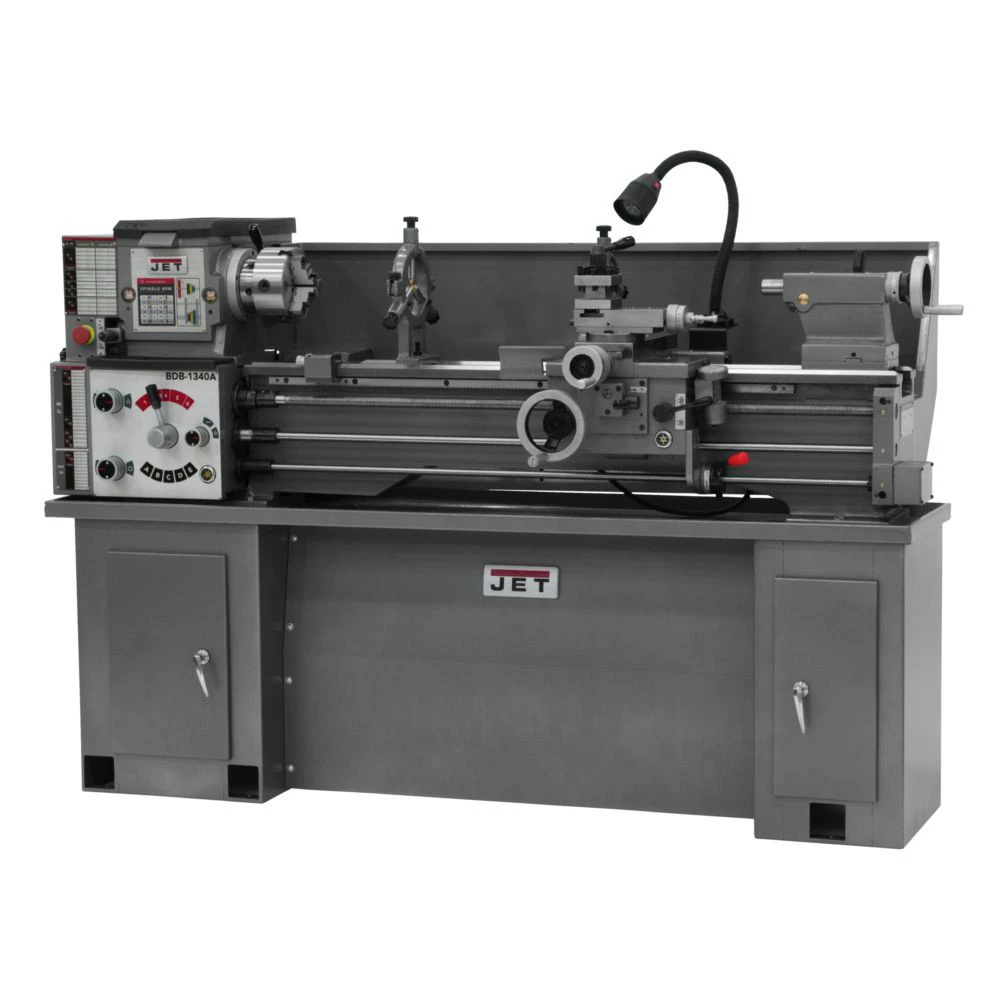

JET BDB-1340A 13 In. X 40 In. 2 HP 1-Phase Belt Drive Bench Lathe - Image 4

JET BDB-1340A 13 In. X 40 In. 2 HP 1-Phase Belt Drive Bench Lathe - Image 5

JET BDB-1340A 13 In. X 40 In. 2 HP 1-Phase Belt Drive Bench Lathe - Image 6

Original price was: $465.00.Current price is: $94.99.

SKU: Metal Lathes jetn321360a Categories: Metal Lathes, Metalworking Tools, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Features:

One of the most popular JET, lathes now comes with an enclosed gearbox as a standard feature
Enclosed gear box design provides smooth, quiet operation
Fast, easy speed changes
Low voltage motor controls
Helical cut headstock gears reduce noise
Change gears allow metric threading
Spindle is supported by precision tapered roller bearings
V-way bed is induction hardened and ground
Gap bed section provided for large diameter work
Independent lead screw and feed rod
T-slotted compound slide with four-way tool post
Carriage mounted spindle control lever
Automatic feeding and threading are fully interlocked
Feed selectors travel in grooved ways
Tailstock may be offset for turning tapers and includes an inch/metric graduated quill

What’s Included:

13 in. x 40 in. 2 HP 1-Phase Belt Drive Bench Lathe – 321360A
6 in. 3-Jaw Direct Mount Chuck w/ Top Reversing Jaws
8 in. 4-Jaw Chuck
12 in. Face Plate
Four-Way Tool Post
Steady &amp, Follow Rest
Metric Change Gear
Centers w/ Headstock Center Sleeve
Threading Dial
Tool Box &amp, Tools

Spindle Speed Settings	12
Follow Rest Capcacity	2-3/4 in
Range of Longitudinal Feed Rates (IPR)	0.0018-0.0374 in
Spindle Taper (Tailstock)	MT-3
Horsepower	2
Voltage	230V
Spindle Mount Taper	Yes
Carriage Travel	35 in
Spindle Travel (Tailstock)	3-3/4 in
Drive Type	Belt
No. of Longitudinal Feed Rates	38
Gap Length	8 in
No. of Cross Feed Rates	38
Swing Range (Bed)	13 in
ETL Safety	No
Spindle Mount	Yes
Length	71 in.
Width	32 in.
Height	45 in.
Weight	1175 lbs.
Motor Phase	1
Tool Size	5/8 x 5/8 in
Power Source	Corded
Cross Slide Travel	6-5/16 in
Range of Inch Threads (TPI)	3-1/2 – 80
Spindle Bore Diameter	1-3/8 in
PreWired Voltage	230V
UL Safety	No
Bed Width	7-3/8 in
Swing Range (Cross Slide)	7-25/32 in
No. of Inch Threads	38
Bed Construction	Cast Iron
Motor Type	Brushed
Distance Between Centers	40 in
Spindle Speed Range (RPM)	1240
Compound Slide Travel	2-11/16 in
Range of Metric Threads	0.45 – 10
Steady Rest Capacity	2-5/8 in
No. of Metric Threads	23
Range of Cross Feeds (IPR)	0.0006 – 0.013
Swing Range (Gap)	18-3/4 in
CSA Safety	No
Warranty Term	2 Year
