Name: Clearance! Graduation Gifts JET 892313 E-1236VS With ACU-RITE 303 DRO And Collet Closer for Her and Him
SKU: Metal Lathes jetn892313
Price: 89.99 USD
Availability: InStock

Sale!

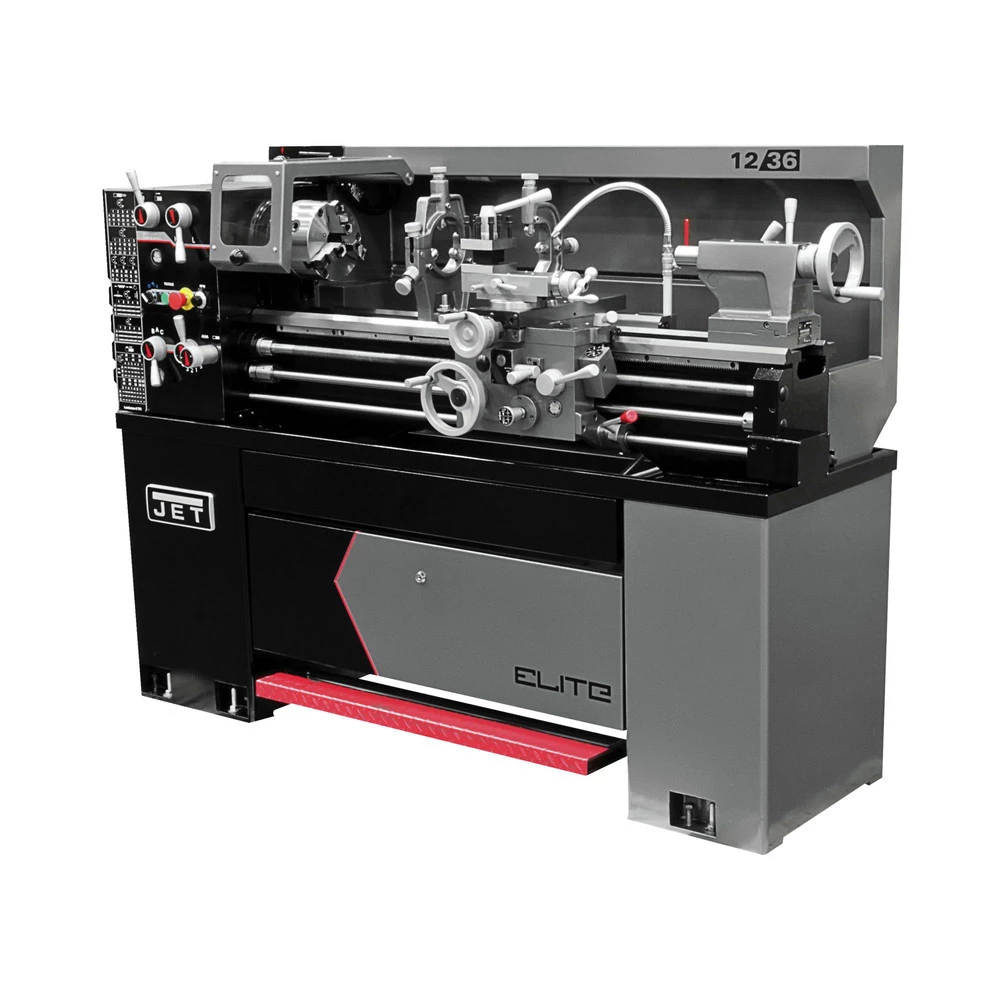

JET 892313 E-1236VS With ACU-RITE 303 DRO And Collet Closer

JET 892313 E-1236VS With ACU-RITE 303 DRO And Collet Closer - Image 2

JET 892313 E-1236VS With ACU-RITE 303 DRO And Collet Closer - Image 3

JET 892313 E-1236VS With ACU-RITE 303 DRO And Collet Closer - Image 4

JET 892313 E-1236VS With ACU-RITE 303 DRO And Collet Closer - Image 5

JET 892313 E-1236VS With ACU-RITE 303 DRO And Collet Closer - Image 6

Original price was: $515.00.Current price is: $89.99.

SKU: Metal Lathes jetn892313 Categories: Metal Lathes, Metalworking Tools, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

EVS LATHES – COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady and follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!

Features:

Electromagnetic assisted foot brake for rapid braking
Inverter drive system provides infinitely variable spindle speeds

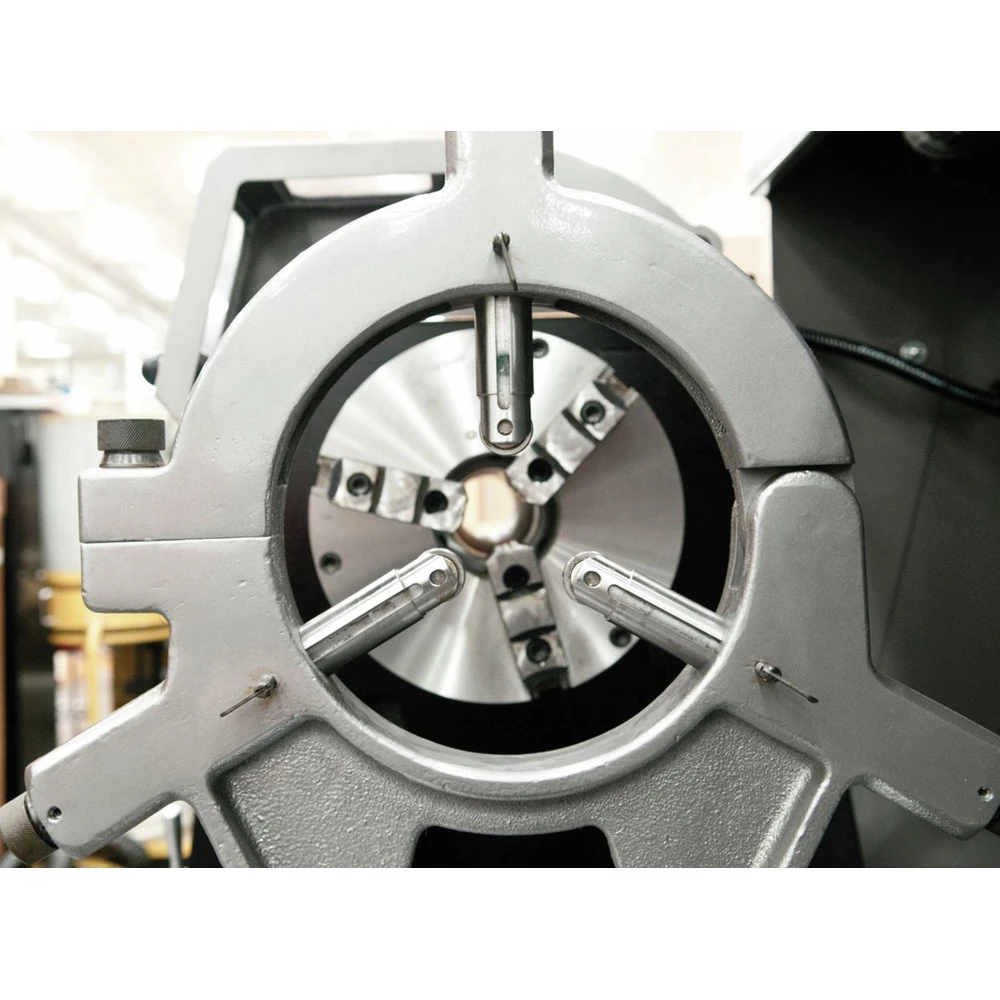

Steady and follow rest feature double sealed ball bearing guides for smooth material movements
Chuck guards are standard equipment on all ELITE lathes for increased safety
Front facing chip pan allows easy chip removal from the front of the machine
1-9/16 in. Spindle Bore

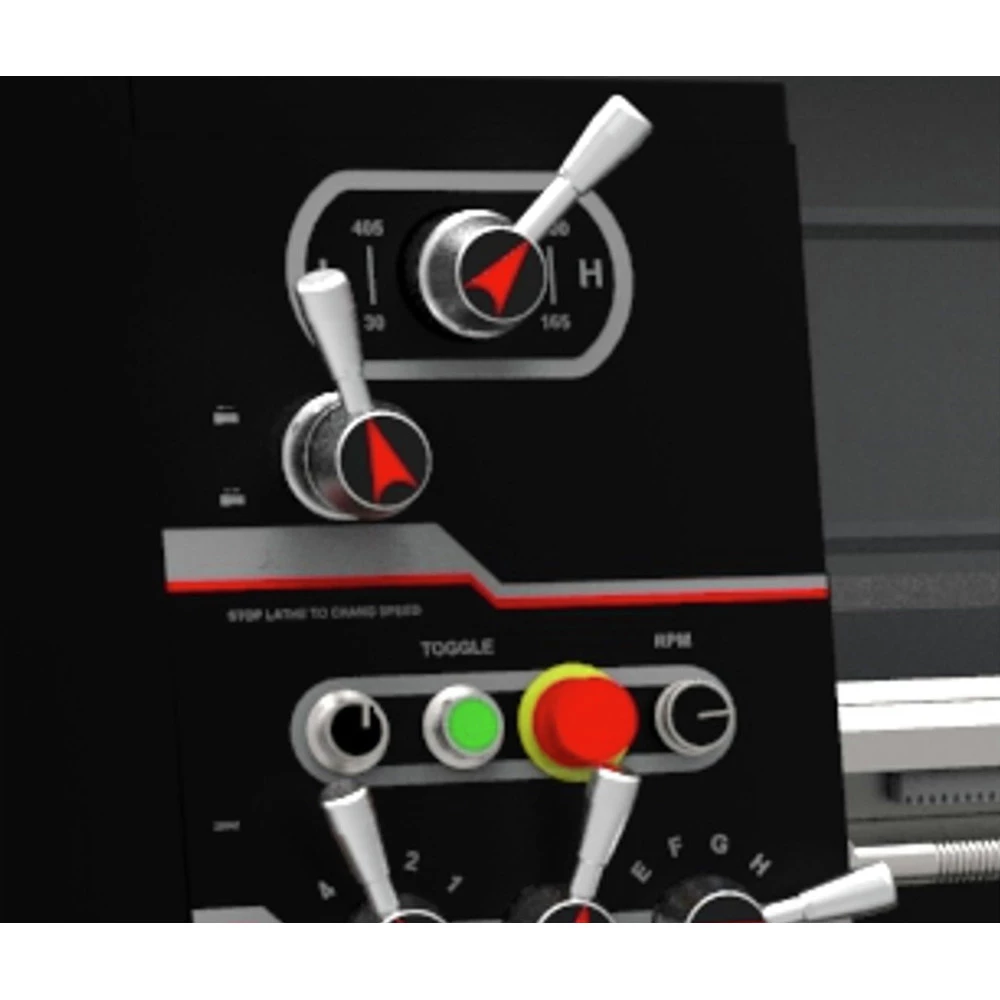

Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM

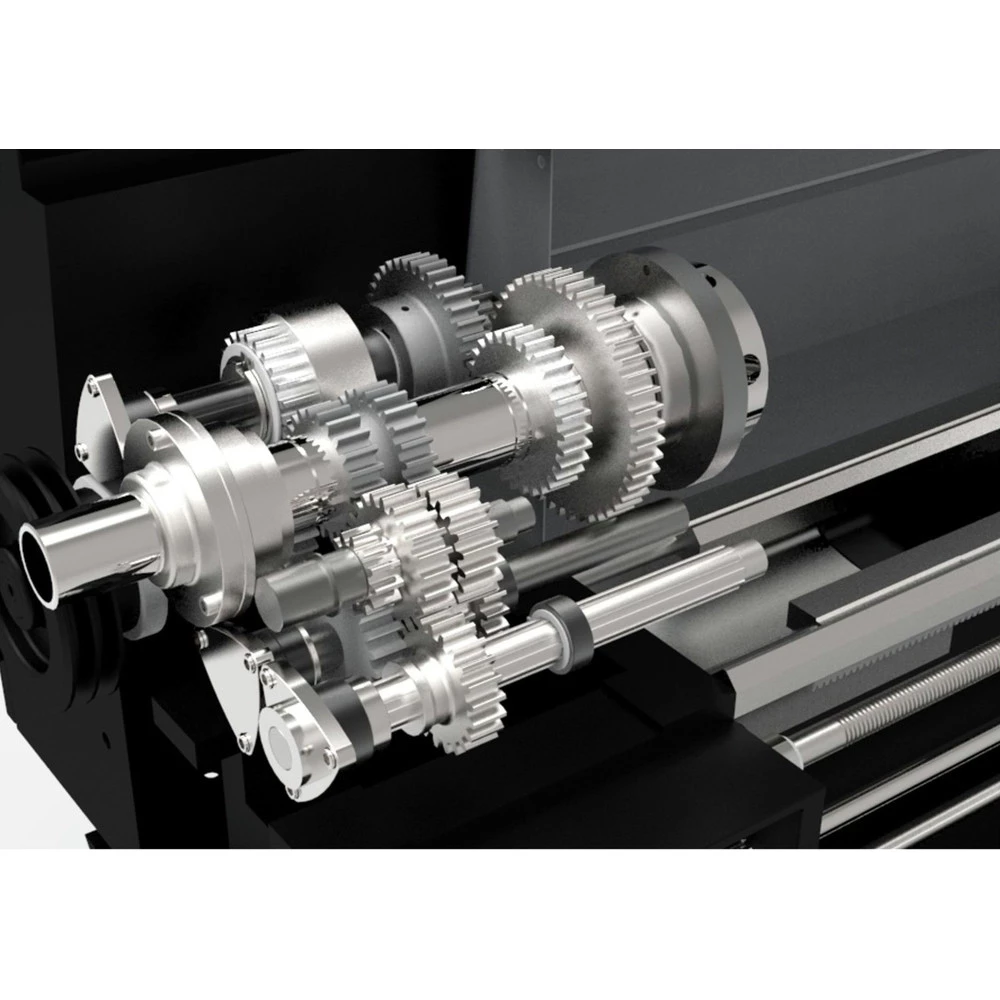

Hardened and ground gears in headstock reduce vibration and deflection
Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

What’s Included:

E-1236VS with ACU-RITE 303 DRO and Collet Closer – 892313

Range of Inch Threads (TPI)	2 – 56
Distance Between Centers	36 in
Max. Tailstock Spindle Travel	4 in.
No. of Cross Feed Rates	50
No. of Longitudinal Feed Rates	50
Drive Type	EVS
Spindle Mount Taper	MT-5
Horsepower	2
Motor Phase	1 / 3
Tailstock Spindle Taper	MT-3
Tool Size	1/2 x 1/2 in.
Range of Cross Feeds (IPR)	0.0005 – 0.015
PreWired Voltage	230V
No. of Metric Threads	33
Steady Rest Capacity	1/4 in – 2-1/2 in
Range of Metric Threads	0.5 – 12
Spindle Speed Range (RPM)	0 – 2000
Cross Slide Travel	6-3/4 in
No. of Inch Threads	34
Range of Longitudinal Feeds (IPR)	0.0016 – 0.046 IPR
Bed Width	7-1/2 in
Max. Compound Slide Travel	3-1/2 in.
Spindle Mount	D1-4
