Details
When precision matters the most. The large spindle bore Elite lathes are the signature machines within the Elite lathe lineup. Engineered to meet world-class tolerances for spindle run out, bed alignment, and bed-way parallelism, these lathes take Precision, durability and safety, beyond what the market needs.
Features:

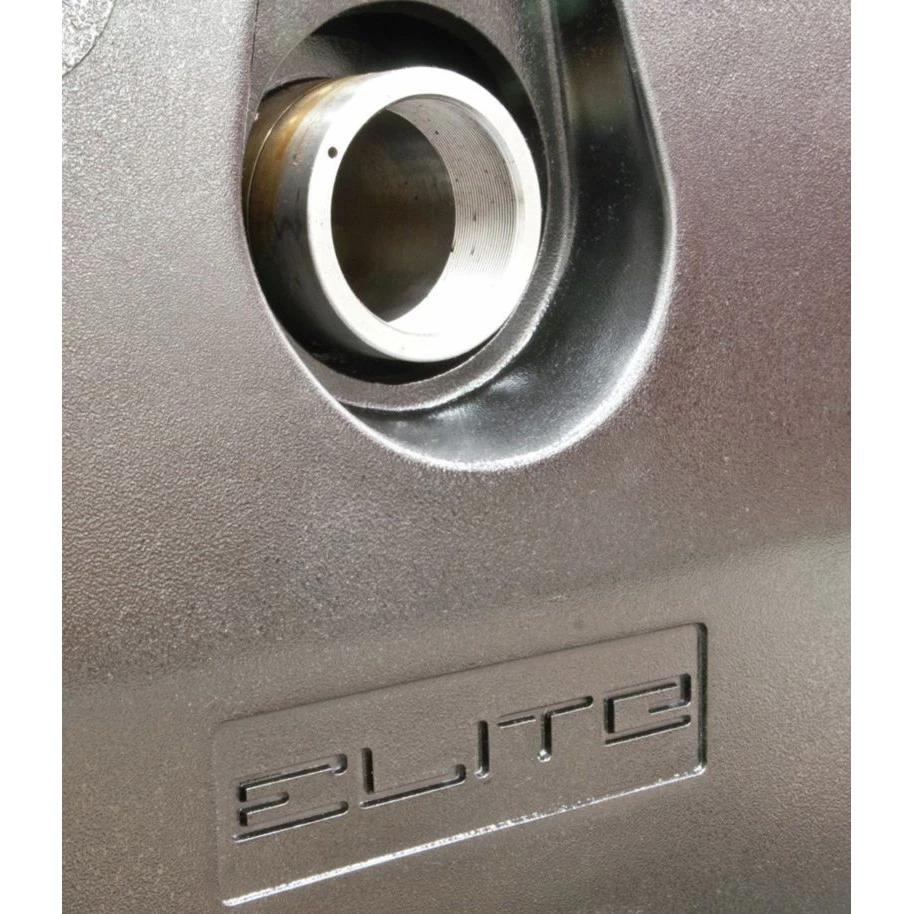

- 3-1/8 in. Spindle Bore

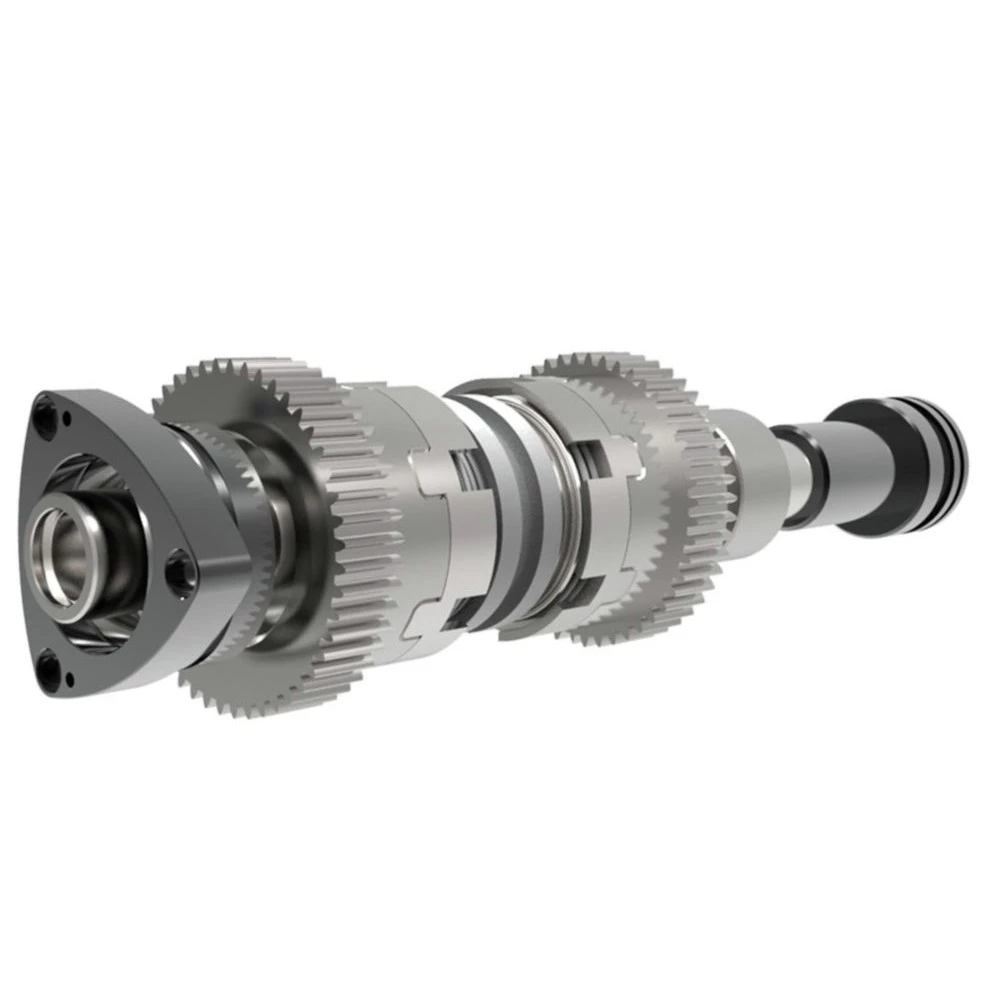

- Matrix Disc Clutch permits the changing of gears without stopping the motor, reducing wear

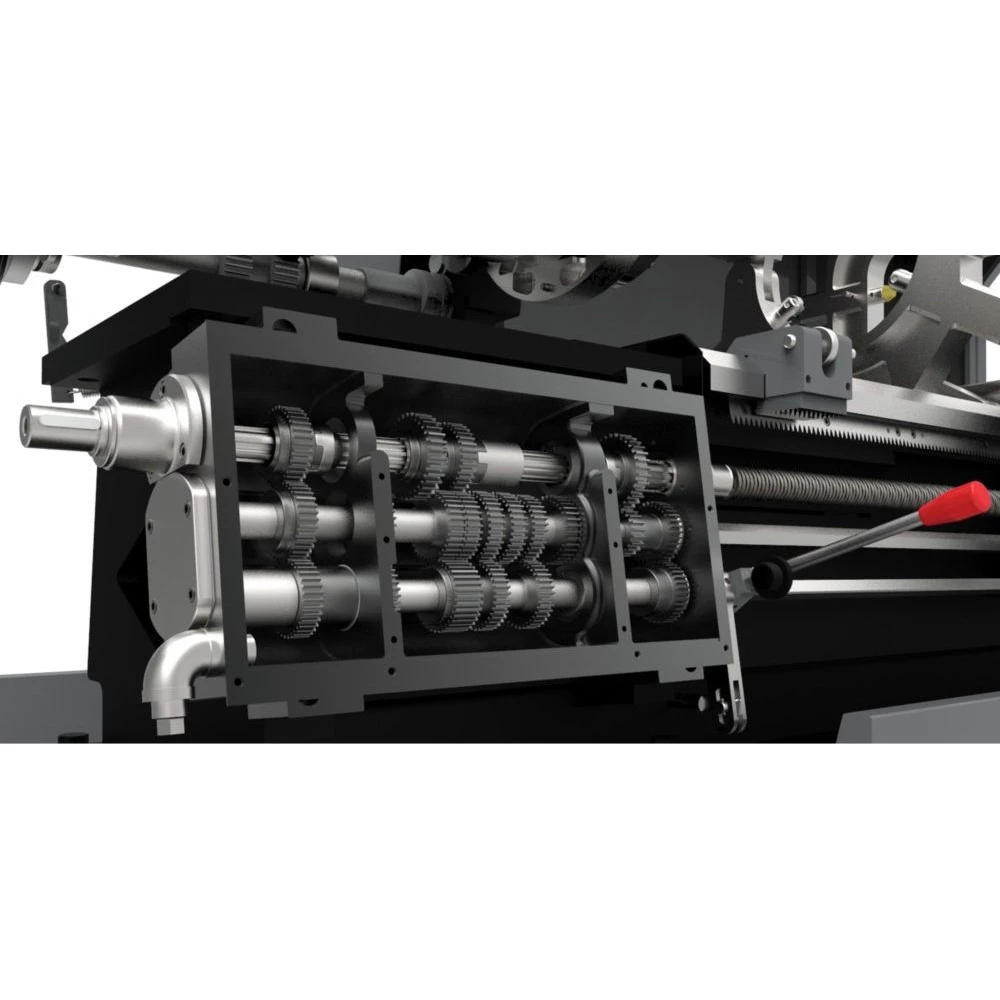

- Universal gearbox supports inch, metric, modular and diametral threads, without changing gears
- Anti-Float design eliminates backlash in the cross slide

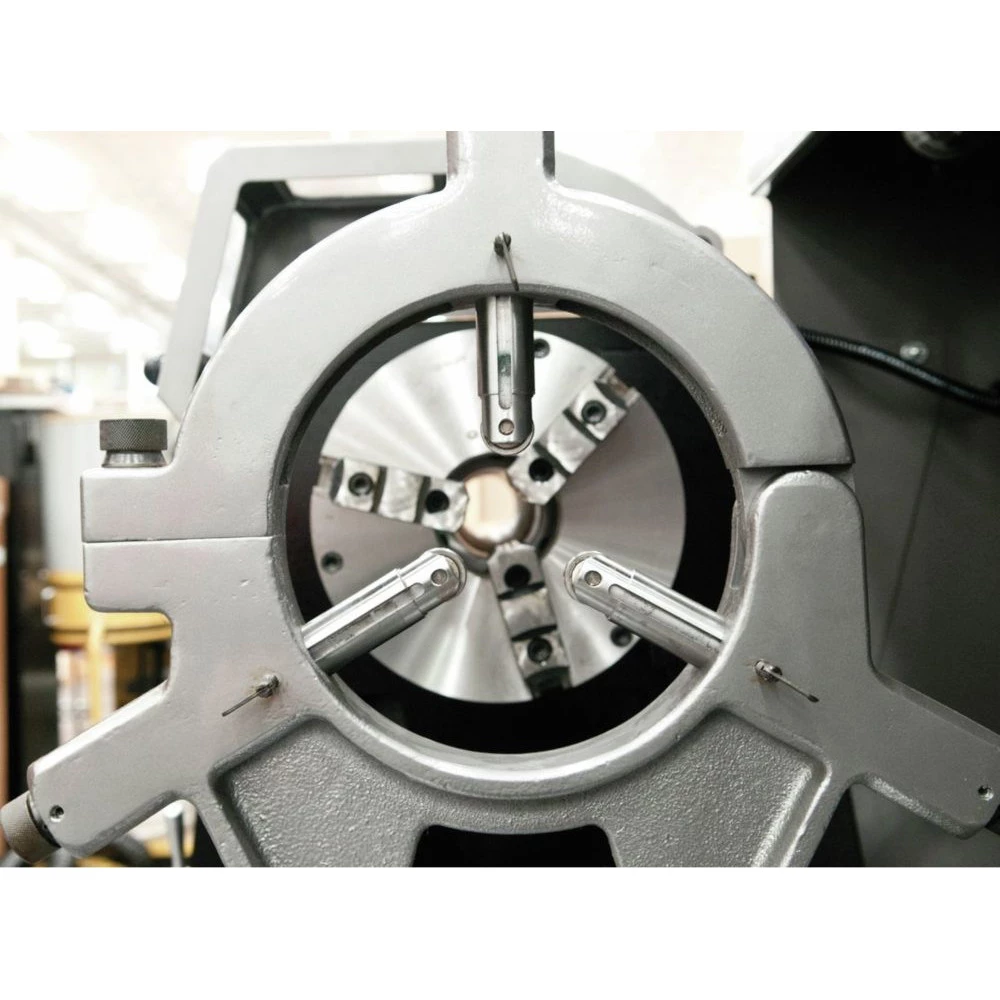

- Steady rests feature ball bearing guides for smooth material movements
- Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant
- Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004

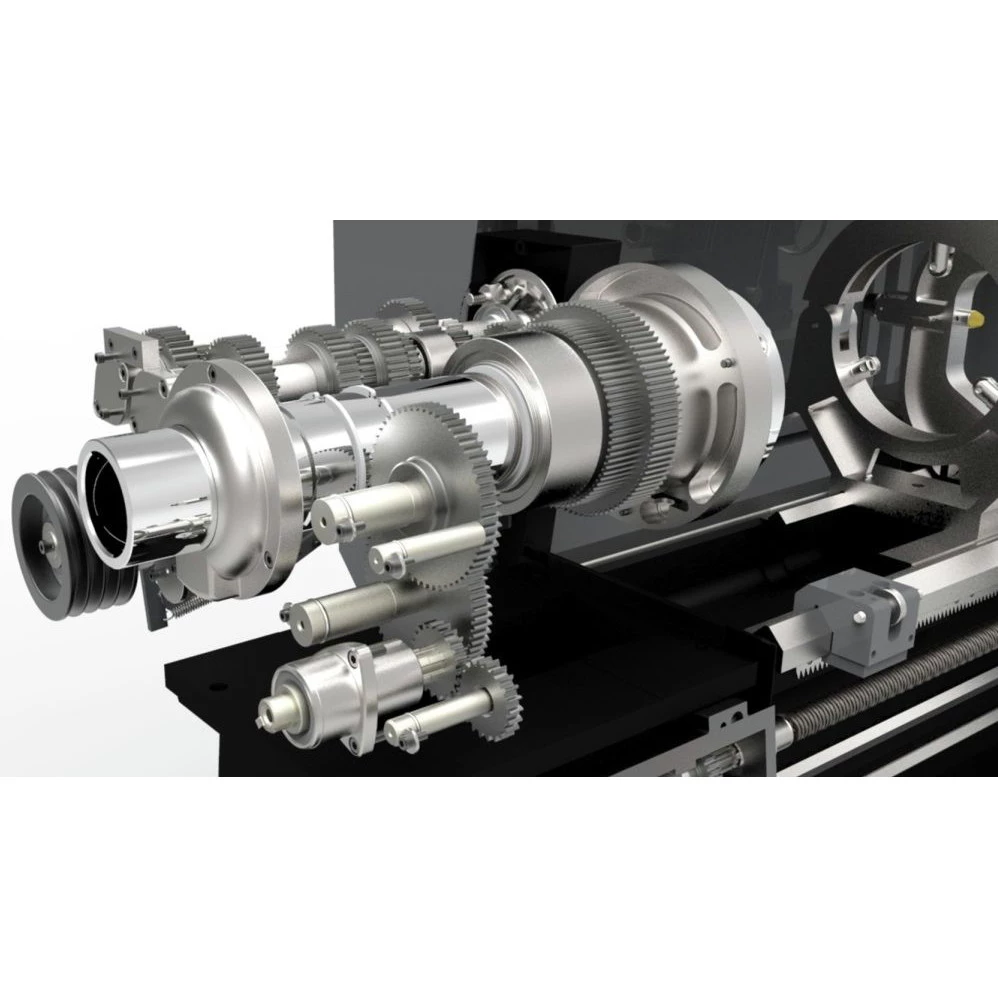

- Hardened and ground gears in headstock reduce vibration and deflection
- Wider bedways absorb vibration
- Turcite-B coating between bed and carriage provides friction free motion in all linear directions
What’s Included:

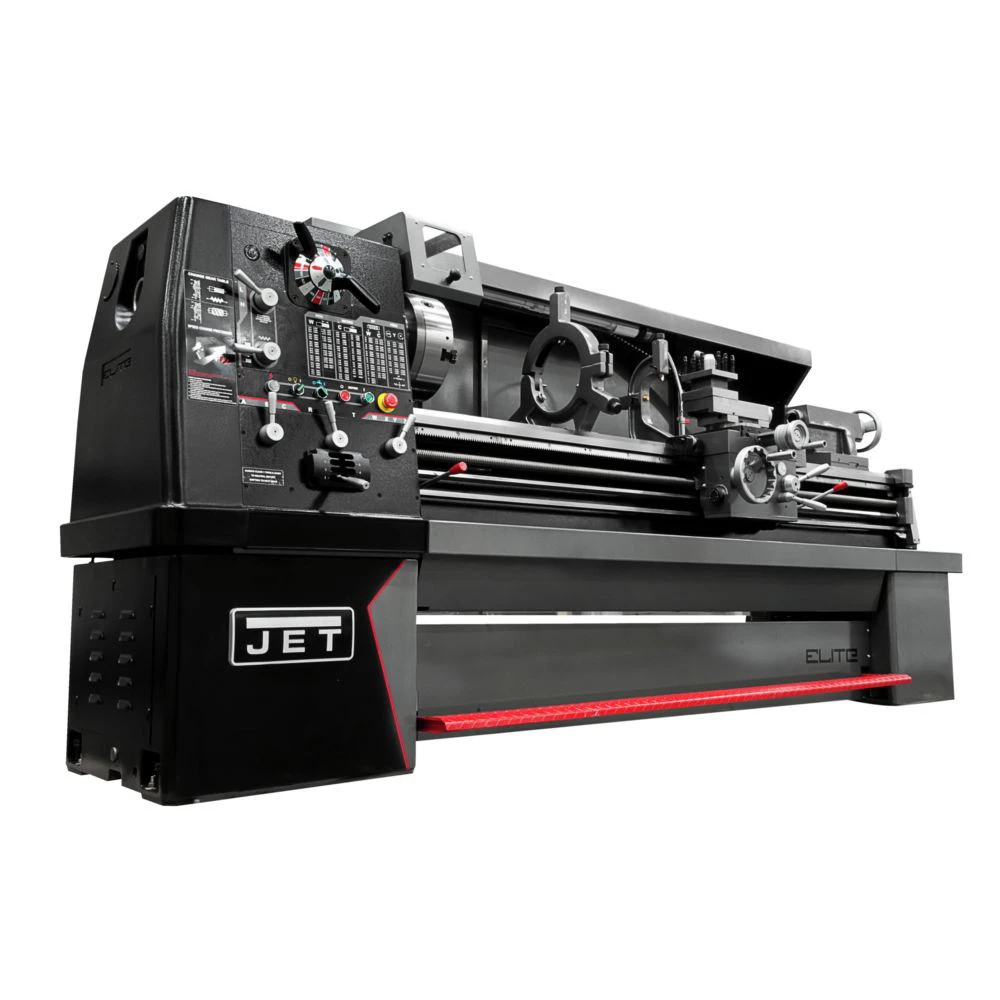

- EGH-1880 Elite 18 x 80 Large Spindle Bore Clutch Lathe – 892200
| Spindle Speed Settings | 16 |
|---|---|
| Drive Type | Geared Head Clutch |
| Motor Phase | 3 |
| Range of Longitudinal Feed Rates (IPR) | 0.0015-0.04 in |
| Spindle Taper (Tailstock) | MT-5 |
| Horsepower | 10 |
| Voltage | 460V |
| Spindle Mount Taper | Yes |
| Spindle Travel (Tailstock) | 6-1/2 in |
| Follow Rest Capcacity | 3/8 – 7-3/4 in |
| Tool Size | 1 x 1 in |
| Swing Range (Bed) | 18 in |
| ETL Safety | No |
| Spindle Mount | Yes |
| Length | 139 in. |
| Width | 44 in. |
| Height | 68 in. |
| Weight | 5842 lbs. |
| Gap Length | 9-5/6 in |
| Distance Between Centers | 80 in |
| Power Source | Corded |
| Bed Construction | Cast Iron |
| Range of Inch Threads (TPI) | 2 – 72 |
| Spindle Bore Diameter | 3-1/8 in |
| PreWired Voltage | 230V |
| UL Safety | Yes |
| Bed Width | 13-4/7 in |
| Swing Range (Cross Slide) | 11 in |
| No. of Inch Threads | 38 |
| Cross Slide Travel | 10-2/3 in |
| CSA Safety | Yes |
| Motor Type | Brushed |
| Spindle Speed Range (RPM) | 1600 |
| Compound Slide Travel | 5-2/5 in |
| Range of Metric Threads | 0.4 – 14 |
| Steady Rest Capacity | 1/2 in – 3-1/2 in |
| No. of Metric Threads | 40 |
| Range of Cross Feeds (IPR) | 0.0008 – 0.02 |
| Swing Range (Gap) | 28 in |
| Warranty Term | 3 Year |
