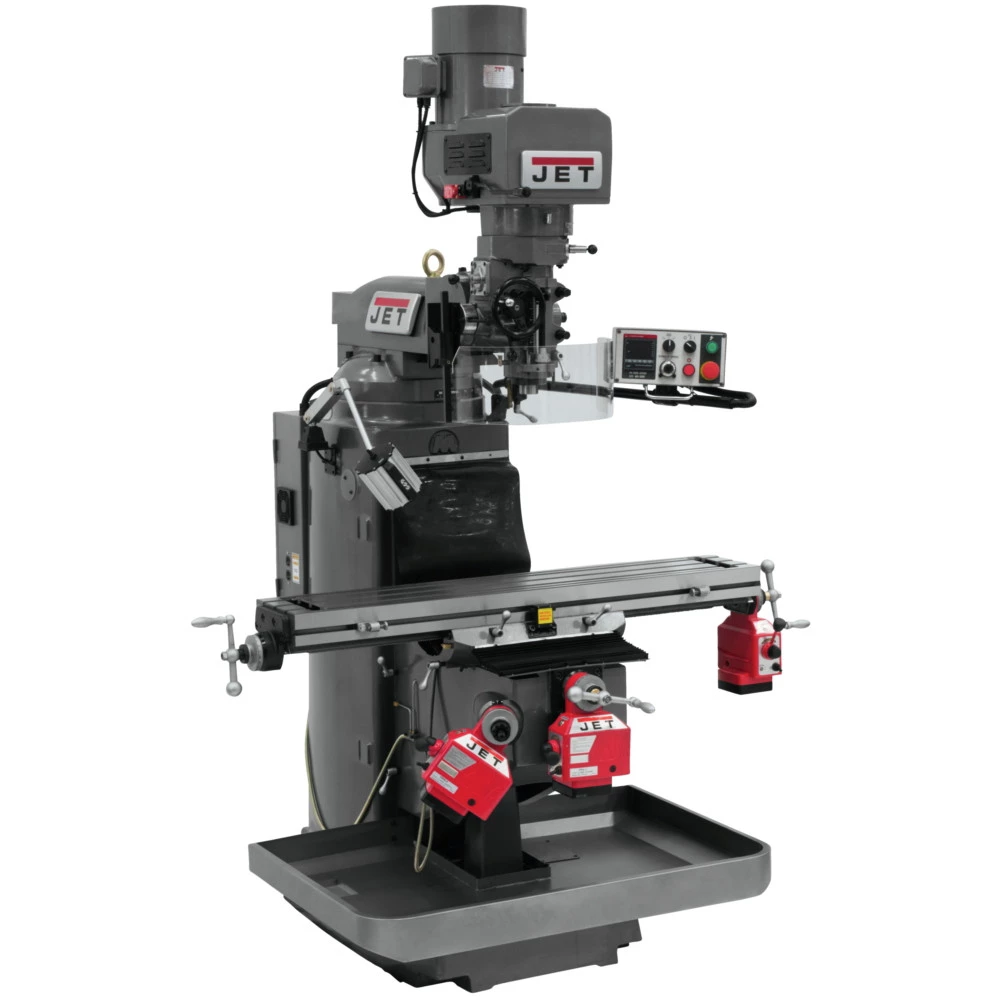

JET 690504 JTM-949EVS With X,Y & Z Powerfeeds

JET 690504 JTM-949EVS With X,Y & Z Powerfeeds - Image 2

JET 690504 JTM-949EVS With X,Y & Z Powerfeeds - Image 3

Original price was: $492.00.Current price is: $92.99.

SKU: Milling Machines jetn690504 Categories: Metalworking Tools, Milling Machines, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Constructed using the Meehanite casting process, The NEW! JTM-949EVS, 9 in. x 49 in. Electronic Variable Speed Milling Machines provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design. These new mills have features you’ve come to expect and is backed by the industry-leading JET Two Year Warranty.

Features:

Jet’s newly designed certified Meehanite casting with enhanced ribbing ensures rigidity and tolerance retention

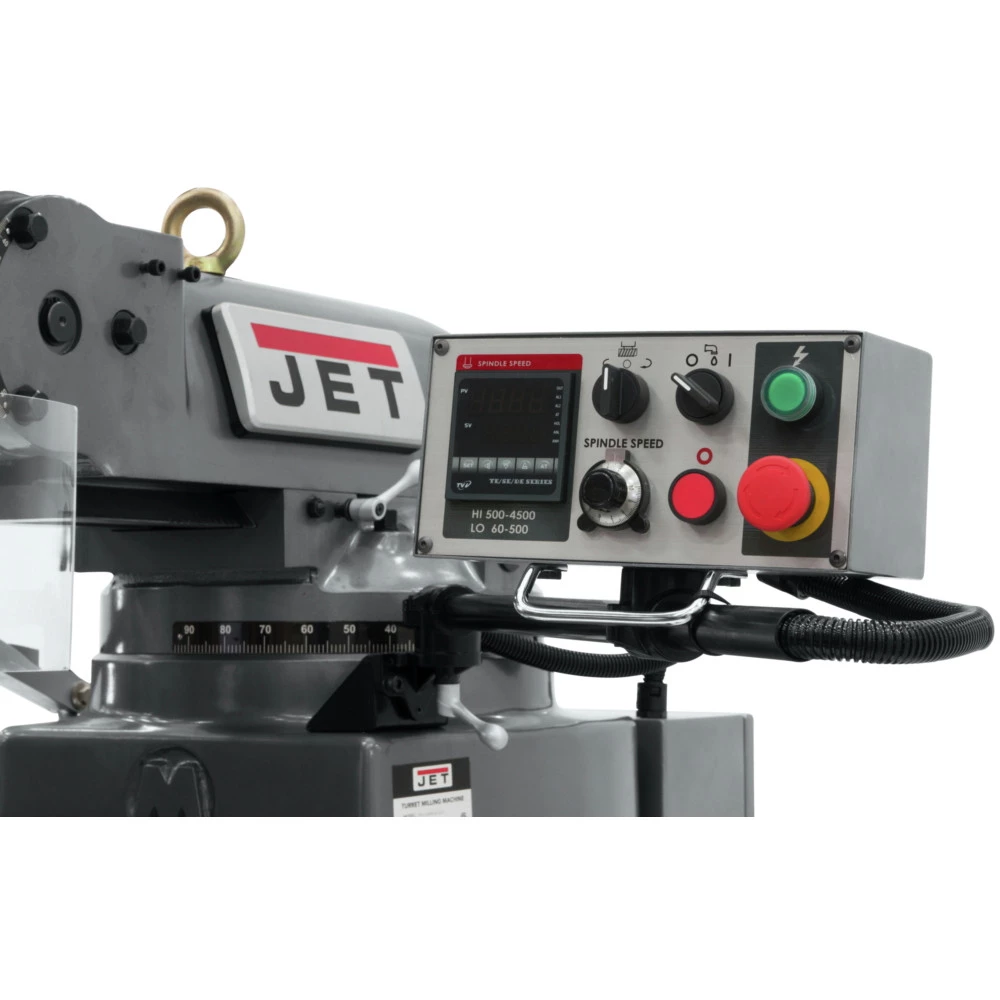

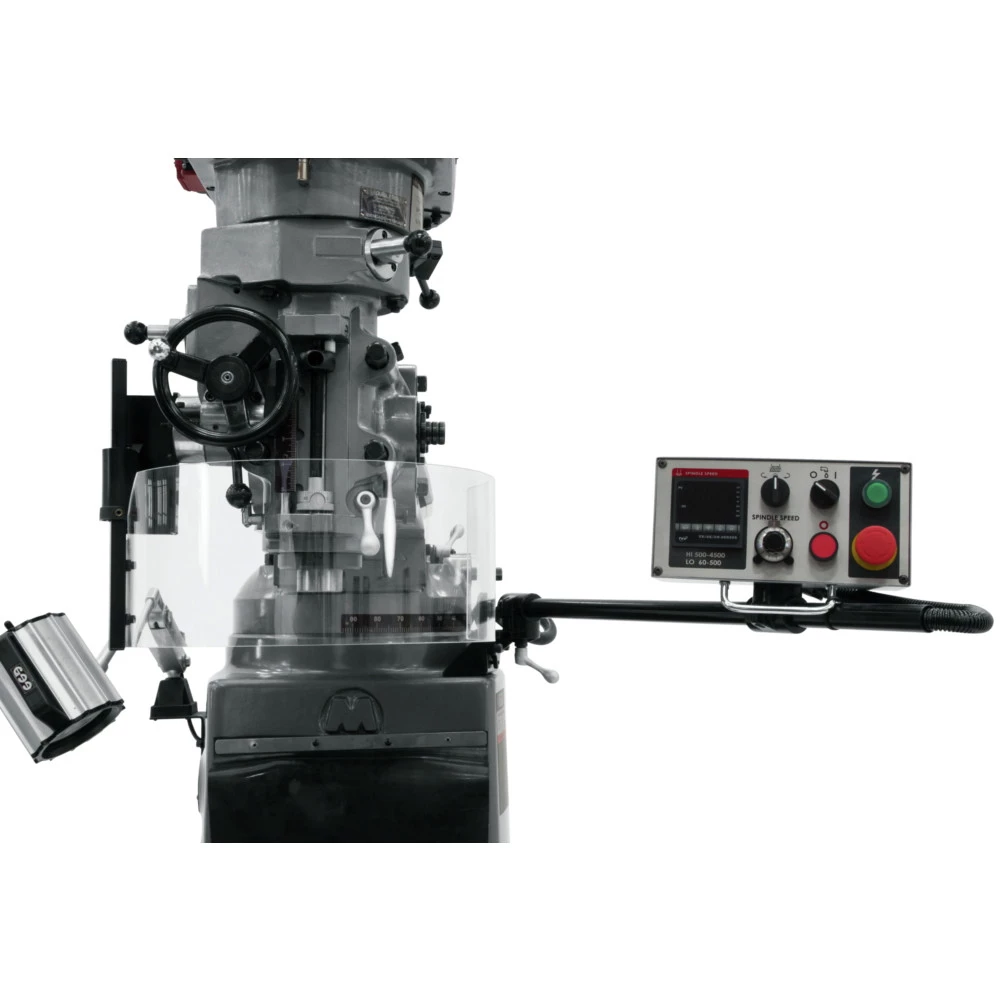

Swing away control box houses an e-stop and puts all controls at the operators fingertips
Innovative design provides an easier solution to level the machine without raising it up off the floor
Automatic oiler releases 3 to 6cc of lubrication every 30 minutes
For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
CSA/CUS Certified
Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
Spindle head is internally cooled extending bearing, belt and motor life
Table and ways are hardened and precision ground for greater accuracy

What’s Included:

JTM-949EVS with X,Y & Z Powerfeeds – 690504

Power Source	Corded
T-Slot Centers	2-1/2 in
Weight	2420 lbs.
Height	86 in.
Width	64 in.
Length	67 in.
ETL Safety	No
Cross Travel (Y-Axis)	12-5/8 in
Spindle Travel	5 in
No. of T-Slots	3
Voltage	230V
Horsepower	3
Spindle to Column Distance	4-3/4 – 18-1/8 in
Motor Phase	3
Spindle Taper	R-8
Table Size	9 in x 49 in
CSA Safety	Yes
UL Safety	No
Spindle Speed Range	60-4500 RPM
Ram Travel	15-1/4 in
T-Slot Size	5/8 in
Table Capacity (lbs.)	720 lbs
Head Movement	90 Degrees R/L 45 Degrees F/B
Quill Diameter	3-3/8 in
Quill Down Feed Rates	.0015 – .003 – .006
Motor Type	Brushed
Longitudinal Table Travel (X-Axis)	36 in
Bluetooth Compatibility	No
Spindle Speeds	Variable
Collet Capacity	1/8 in – 7/8 in
Spindle to Table Distance	20-3/4 in
Wifi compatibility	No
Warranty Term	2 Year
