Details
Features:
- New! JET designed Certified Meehanite casting with enhanced ribbing ensures rigidity and tolerance retention

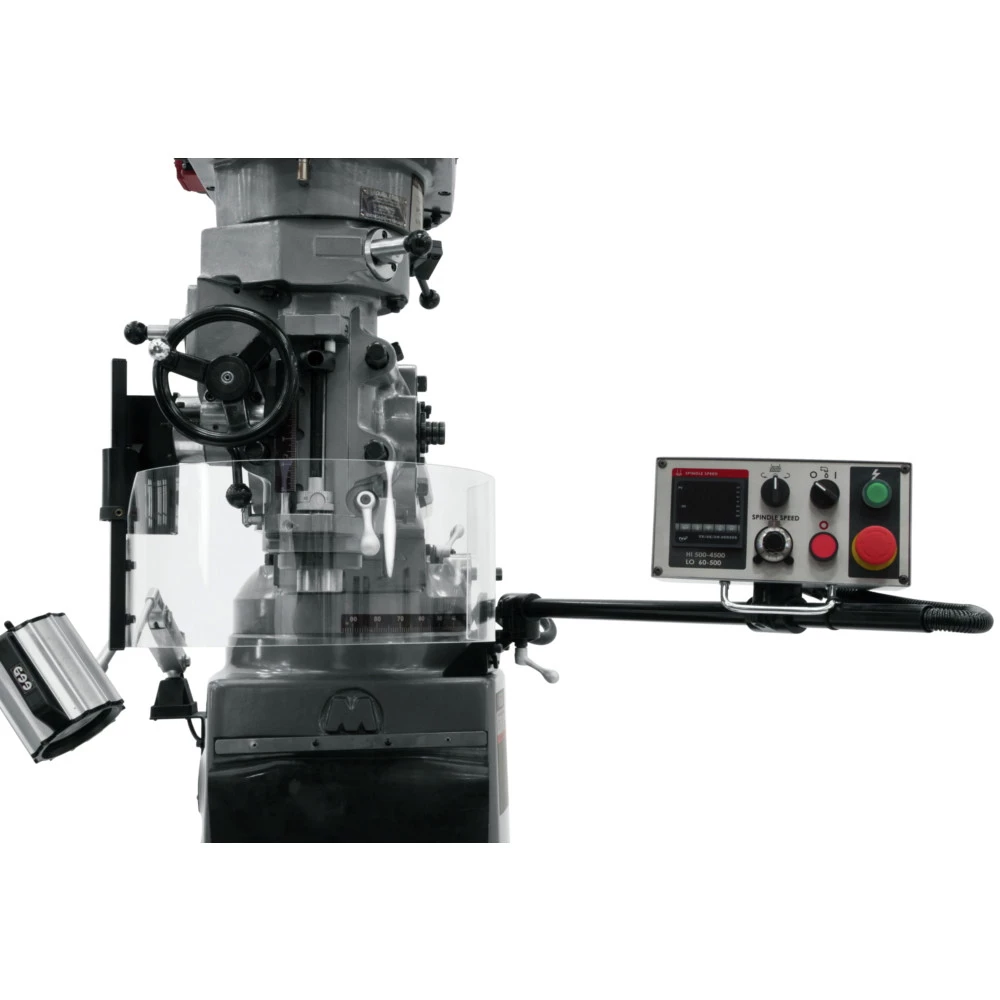

- Swing away control box houses an e-stop and puts all controls at the operators fingertips

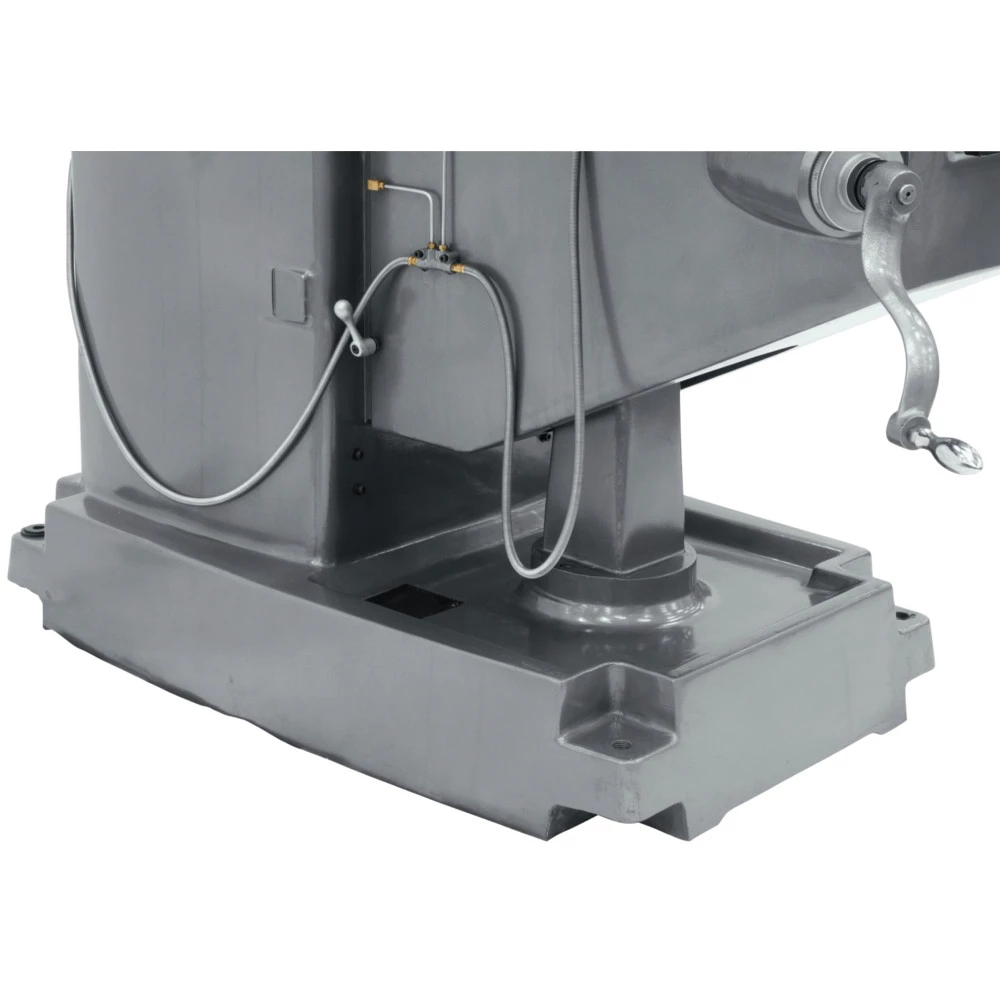

- The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
- Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
- For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
- The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
- CSA/CUS Certified
- Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
- Spindle head is internally cooled extending bearing, belt and motor life
- Table and ways are hardened and precision ground for greater accuracy
What’s Included:

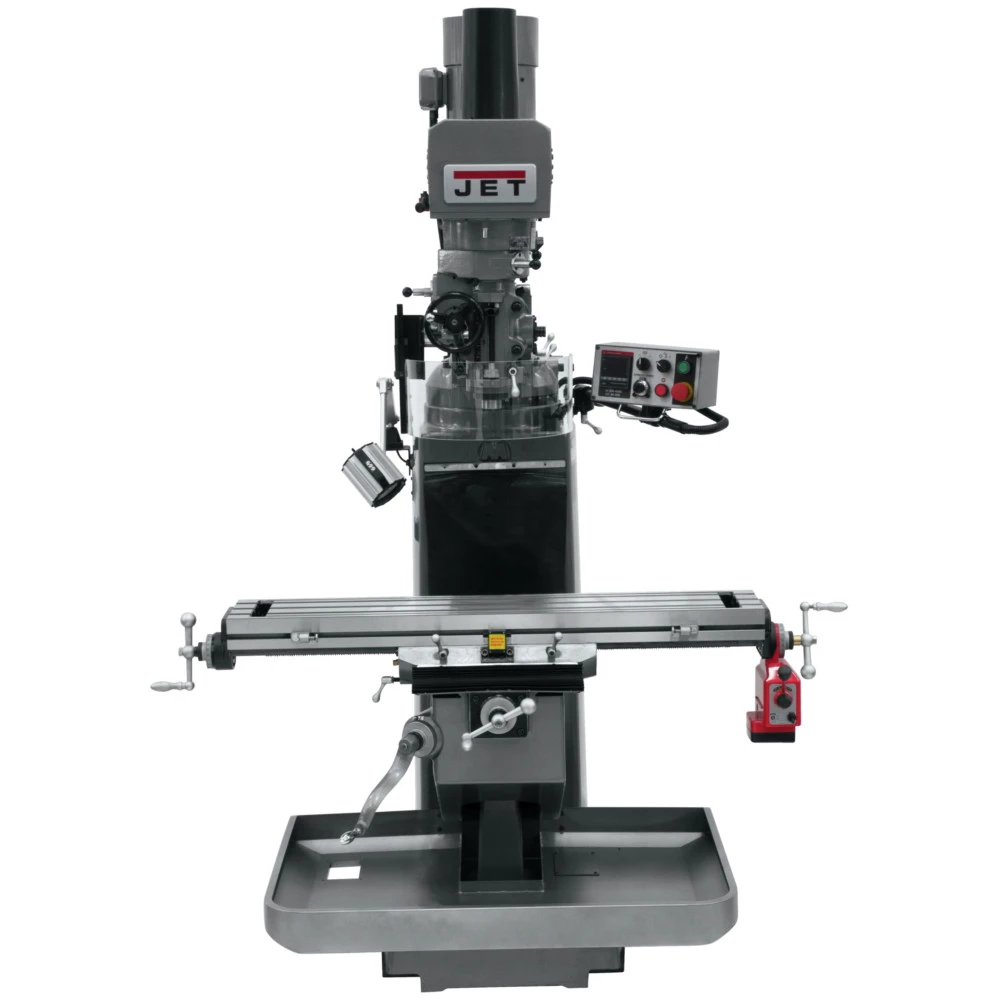

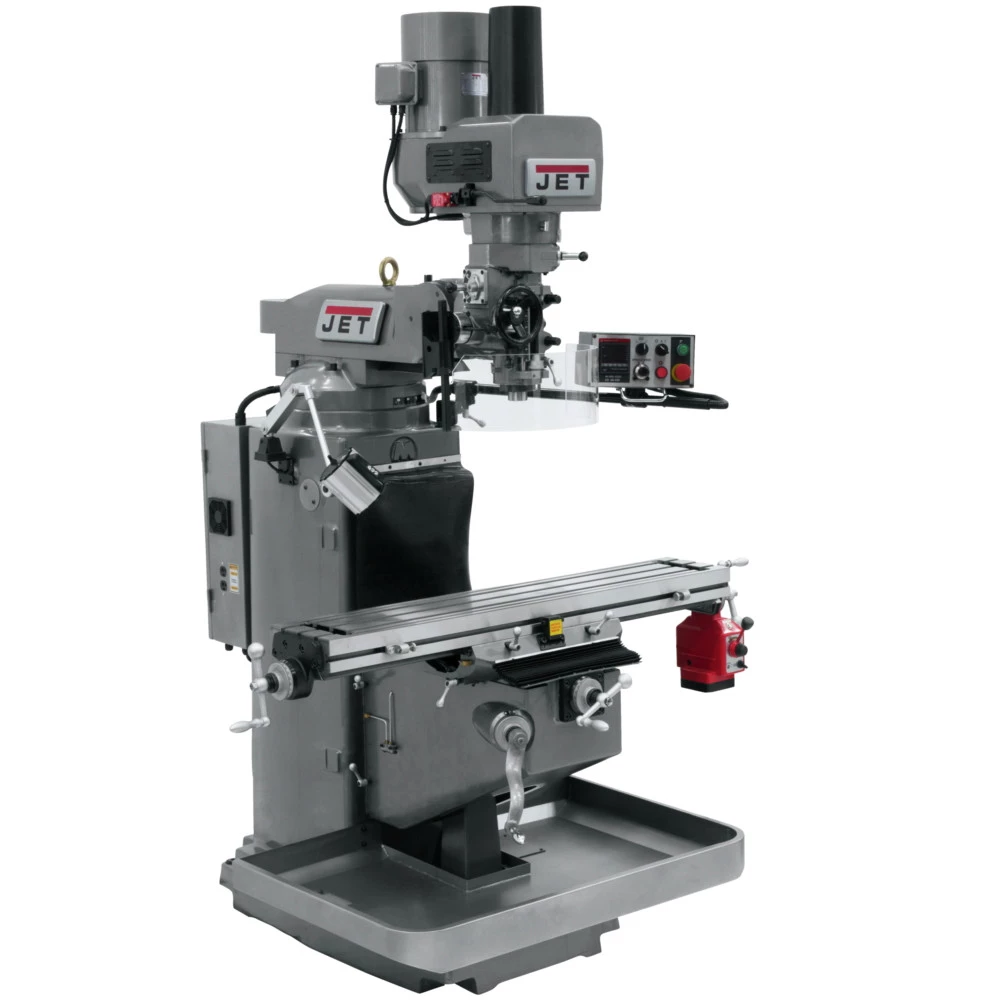

- JTM-949EVS with X Powerfeed & Air Power Drawbar – 690502
| Power Source | Corded |
|---|---|
| T-Slot Centers | 2-1/2 in |
| Weight | 2420 lbs. |
| Height | 86 in. |
| Width | 64 in. |
| Length | 67 in. |
| ETL Safety | No |
| Cross Travel (Y-Axis) | 12-5/8 in |
| Spindle Travel | 5 in |
| No. of T-Slots | 3 |
| Voltage | 230V |
| Horsepower | 3 |
| Spindle to Column Distance | 4-3/4 – 18-1/8 in |
| Motor Phase | 3 |
| Spindle Taper | R-8 |
| Table Size | 9 in x 49 in |
| CSA Safety | Yes |
| UL Safety | No |
| Spindle Speed Range | 60-4500 RPM |
| Ram Travel | 15-1/4 in |
| T-Slot Size | 5/8 in |
| Table Capacity (lbs.) | 720 lbs |
| Head Movement | 90 Degrees R/L 45 Degrees F/B |
| Quill Diameter | 3-3/8 in |
| Quill Down Feed Rates | .0015 – .003 – .006 |
| Motor Type | Brushed |
| Longitudinal Table Travel (X-Axis) | 36 in |
| Bluetooth Compatibility | No |
| Spindle Speeds | Variable |
| Collet Capacity | 1/8 in – 7/8 in |
| Spindle to Table Distance | 20-3/4 in |
| Wifi compatibility | No |
| Warranty Term | 2 Year |
