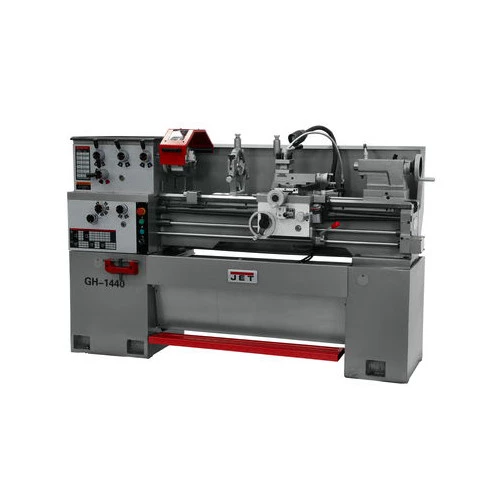

JET 323375 GH-1440-1 Lathe With 200S DRO And Taper

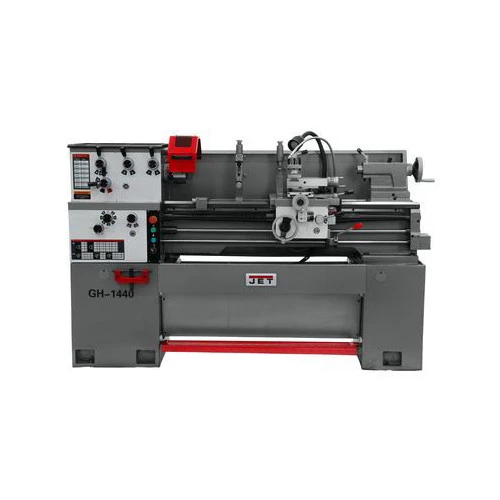

JET 323375 GH-1440-1 Lathe With 200S DRO And Taper - Image 2

Original price was: $487.00.Current price is: $89.99.

SKU: Metal Lathes jetn323375 Categories: Metal Lathes, Metalworking Tools, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

The new JET GH-1440-1 and GH-1440-3 Geared Head engine lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.

Features:

V-way bed design is induction hardened and ground
Splined, not keyed, shafts are utilized
D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
Independent leadscrew and feed rod
Adjustable gibs are incorporated in the carriage and slideways
Safety on/off switch
Emergency Stop within easy reach of the Operator
Electronic Chuck Key Docking Station
Chuck Guard
Foot Brake

What’s Included:

GH-1440-1 Lathe with 200S DRO and Taper-JETN323375

Spindle Speed Settings	12
Follow Rest Capcacity	2-5/8 in
Range of Longitudinal Feed Rates (IPR)	0.0012-0.0294 in
Spindle Taper (Tailstock)	MT-3
Horsepower	3
Voltage	230V
Spindle Mount Taper	Yes
Carriage Travel	37-1/2 in
Spindle Travel (Tailstock)	4-3/4 in
Drive Type	Geared Head Clutch
No. of Longitudinal Feed Rates	40
Gap Length	9-3/8 in
No. of Cross Feed Rates	40
Swing Range (Bed)	14 in
ETL Safety	No
Spindle Mount	Yes
Length	74.8 in.
Width	28 in.
Height	46 in.
Weight	2336 lbs.
Motor Phase	1
Tool Size	5/8 x 5/8 in
Power Source	Corded
Cross Slide Travel	6-3/8 in
Range of Inch Threads (TPI)	4 – 112
Spindle Bore Diameter	1-1/2 in
PreWired Voltage	230V
UL Safety	Yes
Bed Width	10-1/5 in
Swing Range (Cross Slide)	8-1/5 in
No. of Inch Threads	40
Bed Construction	Cast Iron
Motor Type	Brushed
Distance Between Centers	40 in
Spindle Speed Range (RPM)	1800
Compound Slide Travel	3-1/2 in
Range of Metric Threads	0.45 – 7.5
Steady Rest Capacity	3-1/2 in
No. of Metric Threads	23
Range of Cross Feeds (IPR)	0.0004 – 0.0103
Swing Range (Gap)	20 in
CSA Safety	No
Warranty Term	2 Year
