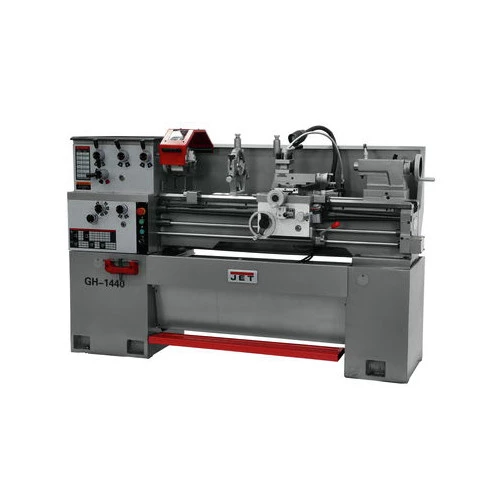

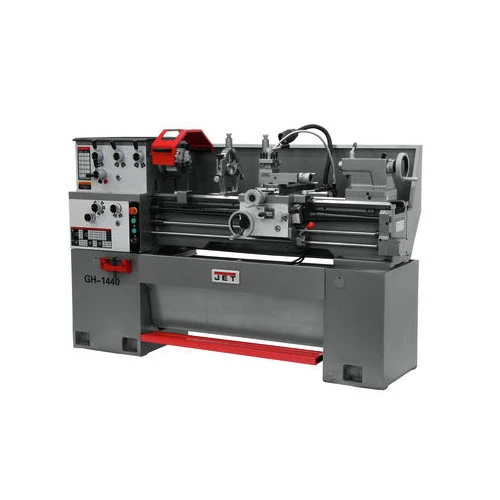

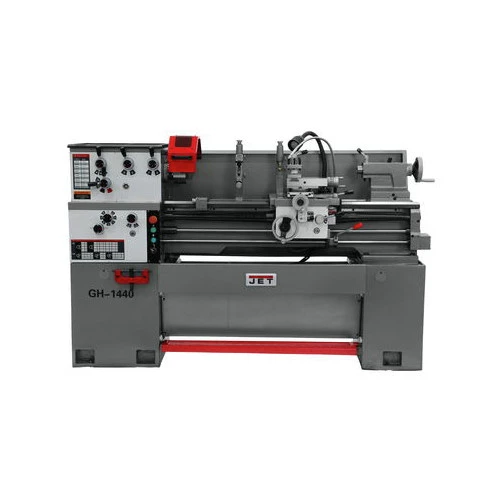

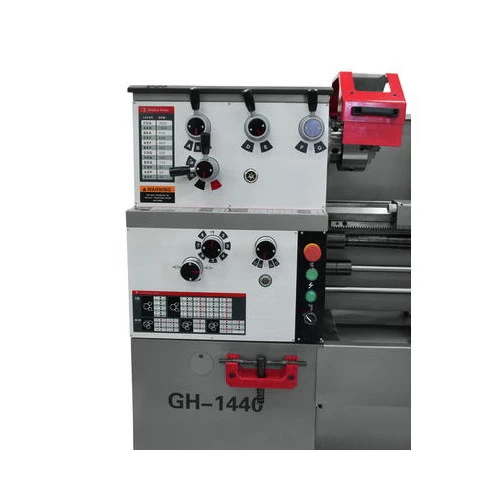

The new JET GH-1440-1 and GH-1440-3 Geared Head engine lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.
Features:
- V-way bed design is induction hardened and ground

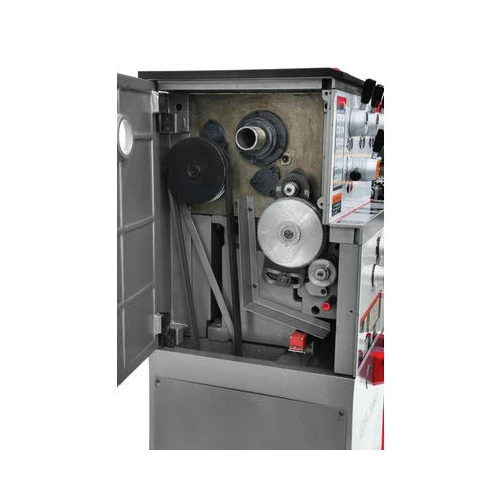

- Splined, not keyed, shafts are utilized
- D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
- Independent leadscrew and feed rod

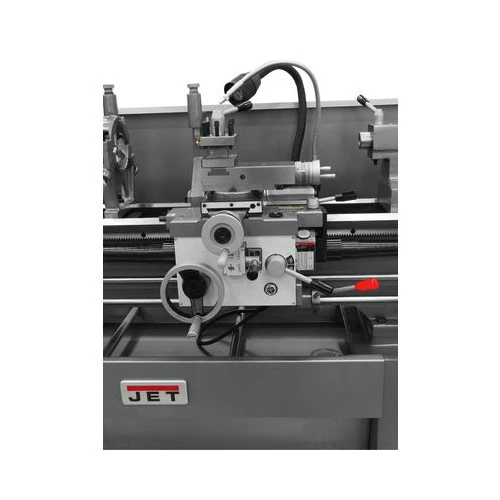

- Adjustable gibs are incorporated in the carriage and slideways
- Safety on/off switch

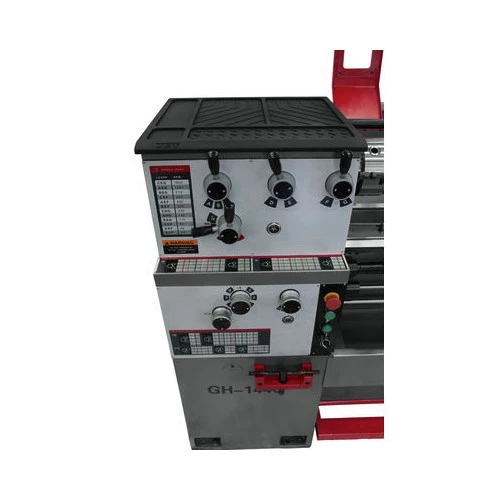

- Emergency Stop within easy reach of the Operator
- Electronic Chuck Key Docking Station
- Chuck Guard
- Foot Brake
What’s Included:
- 14×40/3HP/220V/1 PH Geared Head Engine Lathe-JETN322830
| Spindle Speed Settings | 12 |
|---|---|
| Follow Rest Capcacity | 2-5/8 in |
| Range of Longitudinal Feed Rates (IPR) | 0.0012-0.0294 in |

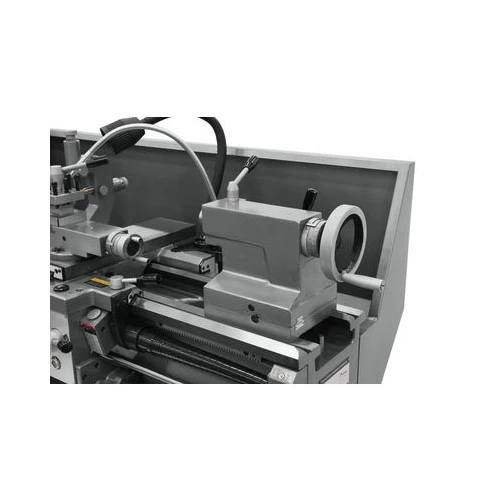

| Spindle Taper (Tailstock) | MT-3 |
| Horsepower | 3 |
| Voltage | 230V |
| Spindle Mount Taper | Yes |
| Carriage Travel | 37-1/2 in |
| Spindle Travel (Tailstock) | 4-3/4 in |
| Drive Type | Geared Head Clutch |
| No. of Longitudinal Feed Rates | 40 |
| Gap Length | 9-3/8 in |
| No. of Cross Feed Rates | 40 |
| Swing Range (Bed) | 14 in |
| ETL Safety | No |
| Spindle Mount | Yes |
| Length | 74.8 in. |
| Width | 28 in. |
| Height | 46 in. |
| Weight | 2336 lbs. |
| Motor Phase | 1 |
| Tool Size | 5/8 x 5/8 in |
| Power Source | Corded |
| Cross Slide Travel | 6-3/8 in |
| Range of Inch Threads (TPI) | 4 – 112 |
| Spindle Bore Diameter | 1-1/2 in |
| PreWired Voltage | 230V |
| UL Safety | No |
| Bed Width | 10-1/5 in |
| Swing Range (Cross Slide) | 8-1/5 in |
| No. of Inch Threads | 40 |
| Bed Construction | Cast Iron |
| Motor Type | Brushed |
| Distance Between Centers | 40 in |
| Spindle Speed Range (RPM) | 1800 |
| Compound Slide Travel | 3-1/2 in |
| Range of Metric Threads | 0.45 – 7.5 |

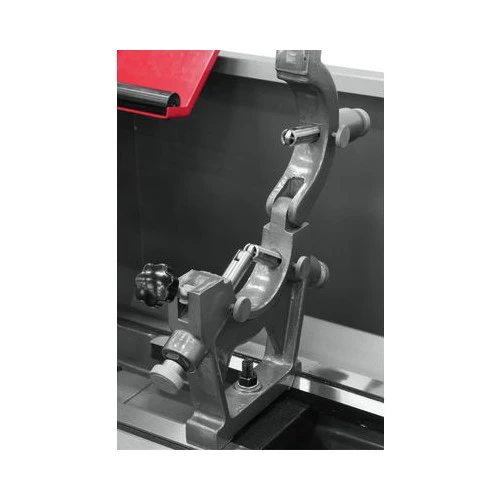

| Steady Rest Capacity | 3-1/2 in |
| No. of Metric Threads | 23 |
| Range of Cross Feeds (IPR) | 0.0004 – 0.0103 |
| Swing Range (Gap) | 20 in |
| CSA Safety | No |
| Warranty Term | 2 Year |
