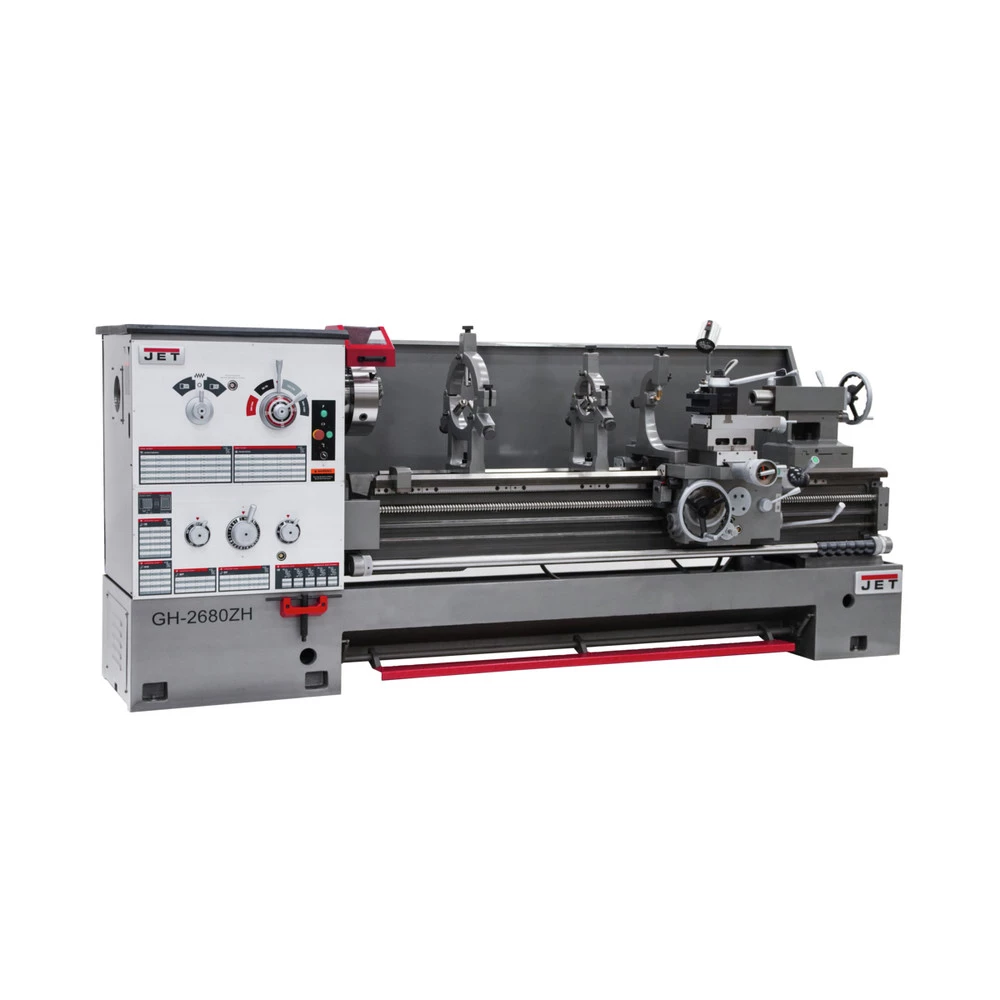

JET 321861 GH-2680ZH Lathe With Newall DP700

Original price was: $585.00.Current price is: $90.99.

SKU: Metal Lathes jetn321861 Categories: Metal Lathes, Metalworking Tools, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Features:

Large 4-1/8 in. spindle bore
Turns 89 different thread sizes
Bed ways are induction hardened and ground for durability
Clutch operated headstock with all headstock gears hardened and ground
Heavy-duty tailstock and quill
12 speed ranging from 36 RPM to 1600 RPM
One piece heavy-duty cast iron base and bed
Rapid power traverse to cross slide and carriage
Headstock gearbox designed for quick setup of thread turning operation without changing gear

What’s Included:

GH-2680ZH Lathe with Newall DP700 – 321861

Spindle Speed Settings	12
Follow Rest Capcacity	25/32 – 3-15/16 in
Range of Longitudinal Feed Rates (IPR)	0.0023-0.0937 in
Spindle Taper (Tailstock)	MT-5
Horsepower	10
Voltage	230V
Spindle Mount Taper	Yes
Carriage Travel	72-1/2 in
Spindle Travel (Tailstock)	6 in
Drive Type	Geared Head Clutch
No. of Longitudinal Feed Rates	65
Gap Length	8 in
No. of Cross Feed Rates	65
Swing Range (Bed)	26 in
ETL Safety	No
Spindle Mount	Yes
Length	138 in.
Width	43 in.
Height	57 in.
Weight	8514 lbs.
Motor Phase	3
Tool Size	1-1/4 x 1-1/4 in
Power Source	Corded
Cross Slide Travel	12-3/32 in
Range of Inch Threads (TPI)	2 – 30
Spindle Bore Diameter	4-1/8 in
PreWired Voltage	460V
UL Safety	No
Bed Width	16 in
Swing Range (Cross Slide)	16-1/2 in
No. of Inch Threads	48
Bed Construction	Cast Iron
Motor Type	Brushed
Distance Between Centers	80 in
Spindle Speed Range (RPM)	1600
Compound Slide Travel	5-1/2 in
Range of Metric Threads	1 – 14
Steady Rest Capacity	25/32 in – 4-29/32 in / 3-15/16 in – 9-7/16 in
No. of Metric Threads	22
Range of Cross Feeds (IPR)	0.010 – 0.0404
Swing Range (Gap)	34 in
CSA Safety	No
Warranty Term	2 Year
