Name: Fashion JET 321860 26 In. X 80 In. Geared Head Engine Lathe 4-1/8 In. Spindle Bore in Outlet JET Store sale
SKU: Metal Lathes jetn321860
Price: 88.99 USD
Availability: InStock

Sale!

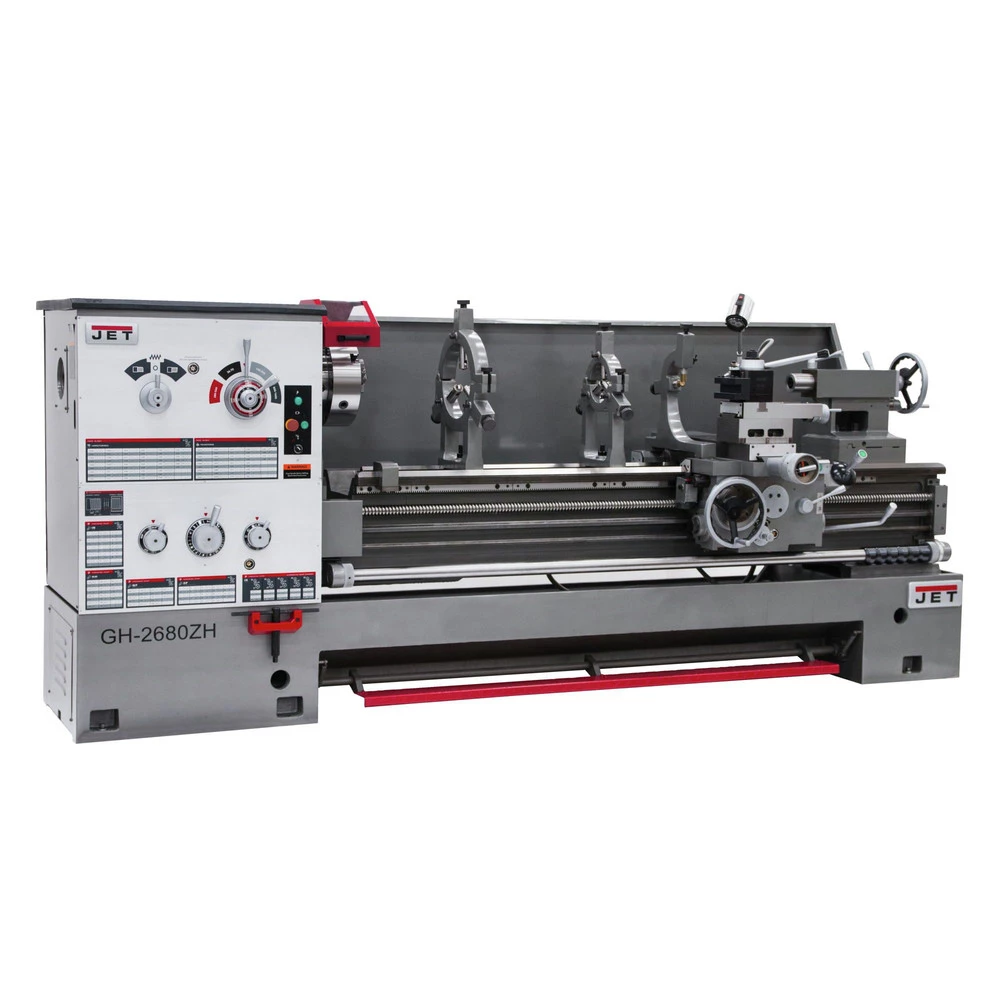

JET 321860 26 In. X 80 In. Geared Head Engine Lathe 4-1/8 In. Spindle Bore

Original price was: $434.00.Current price is: $88.99.

SKU: Metal Lathes jetn321860 Categories: Metal Lathes, Metalworking Tools, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Features:

4-1/8 in. Spindle Bore
Turns 89 different thread sizes
Clutch operated headstock with all headstock gears hardened and ground
Bed ways are induction hardened and ground for durability
Heavy-duty tailstock and quill
One piece heavy-duty cast-iron base and bed
12 speeds in range from 36 – 1,600 RPM
Rapid power traverse to cross slide and carriage
Headstock-gearbox designed for quick setup of thread turning operation without changing gears

What’s Included:

26 in. x 80 in. Geared Head Engine Lathe 4-1/8 in. Spindle Bore – 321860
12 in. 3-Jaw Direct Mount Scroll Chuck with Jaws
16 in. 4-Jaw Chuck
Face Plate
2 Steady Rests
Follow Rest
4-Way Toolpost
Coolant System
Full Length Splash Guard
Halogen Work Lamp

Spindle Speed Settings	12
Follow Rest Capcacity	25/32 – 3-15/16 in
Range of Longitudinal Feed Rates (IPR)	0.0023-0.0937 in
Spindle Taper (Tailstock)	MT-3
Horsepower	10
Voltage	230V
Spindle Mount Taper	Yes
Carriage Travel	72-1/2 in
Spindle Travel (Tailstock)	6 in
Drive Type	Geared Head Clutch
No. of Longitudinal Feed Rates	65
Gap Length	8 in
No. of Cross Feed Rates	65
Swing Range (Bed)	26 in
ETL Safety	No
Spindle Mount	Yes
Length	138 in.
Width	43 in.
Height	57 in.
Weight	8514 lbs.
Motor Phase	3
Tool Size	1-1/4 x 1-1/4 in
Power Source	Corded
Cross Slide Travel	12-3/32 in
Range of Inch Threads (TPI)	2 – 30
Spindle Bore Diameter	4-1/8 in
PreWired Voltage	460V
UL Safety	No
Bed Width	16 in
Swing Range (Cross Slide)	16-1/2 in
No. of Inch Threads	48
Bed Construction	Cast Iron
Motor Type	Brushed
Distance Between Centers	80 in
Spindle Speed Range (RPM)	1600
Compound Slide Travel	5-1/2 in
Range of Metric Threads	1 – 14
Steady Rest Capacity	25/32 in – 4-29/32 in / 3-15/16 in – 9-7/16 in
No. of Metric Threads	22
Range of Cross Feeds (IPR)	0.010 – 0.0404
Swing Range (Gap)	34 in
CSA Safety	No
Warranty Term	2 Year
