Sale!
Original price was: $465.00.$94.99Current price is: $94.99.
- Where quality meets convenience.
- We take quality seriously.
- Prompt service, every time.
- No-Questions-Asked Returns
Details

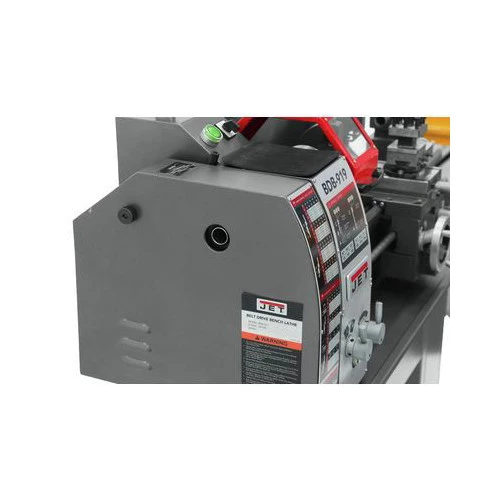

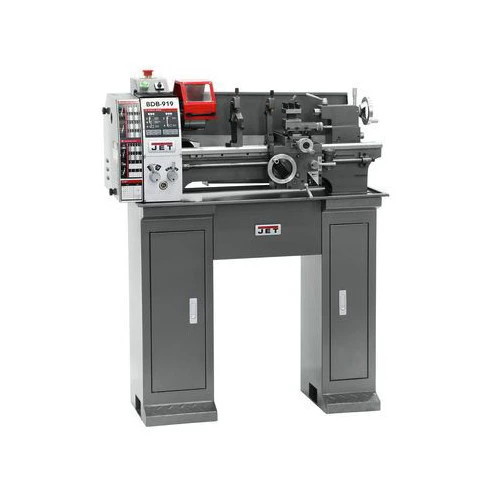

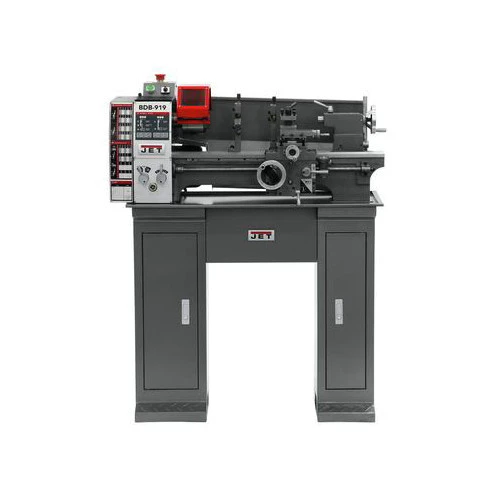

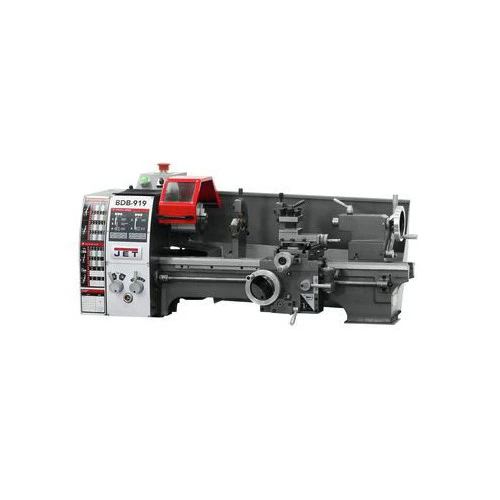

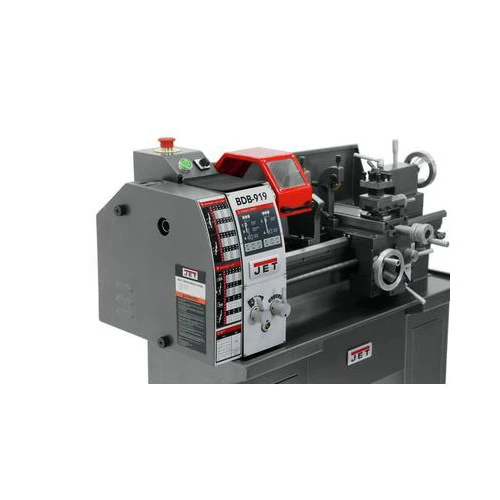

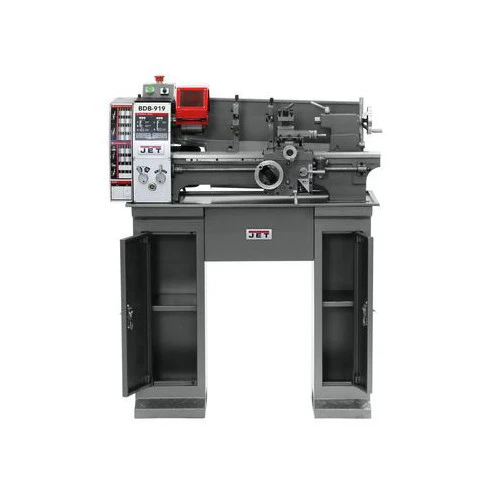

The BDB-919 benchtop lathe is perfect for the most versatile shops. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings, the BDB-919 delivers the smooth operation and rigidity needed to craft professional pieces.
Features:
- Induction hardened and ground bedway
- Spindle supported by precision tapered roller bearings

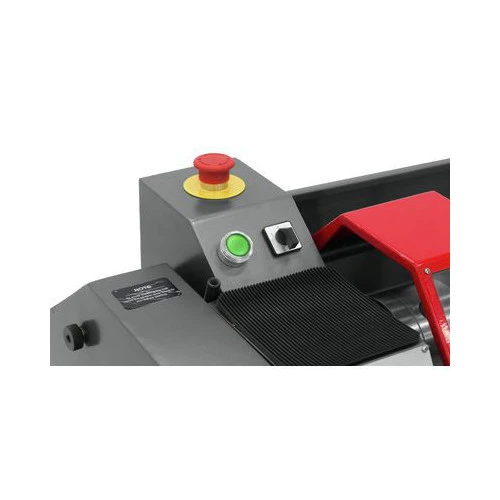

- Safety on/off switch
- Emergency Stop within easy reach of the Operator

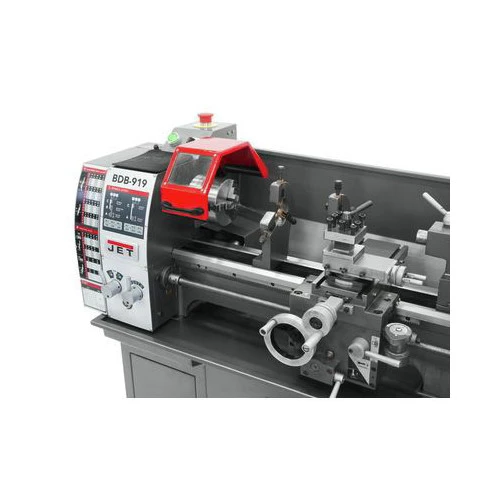

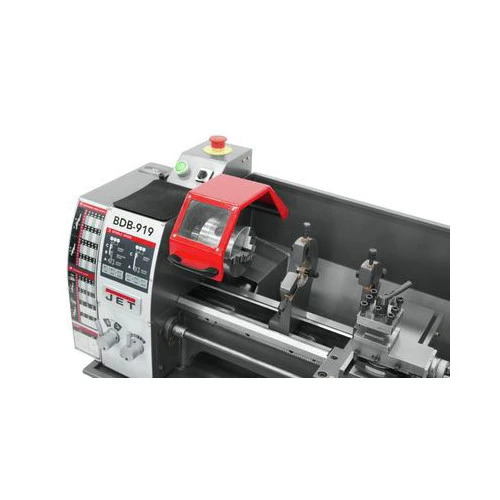

- Chuck Guard

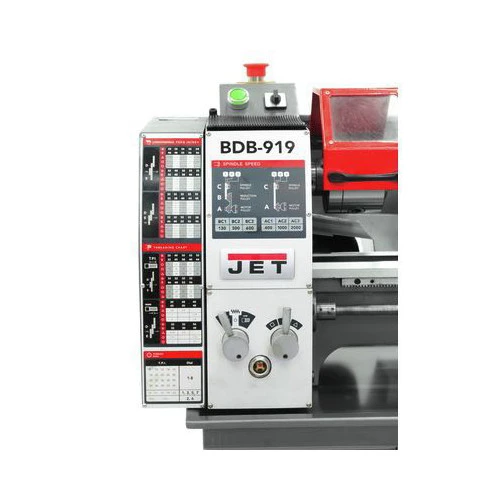

- Quick change gearbox provides wide range of inch and metric threads

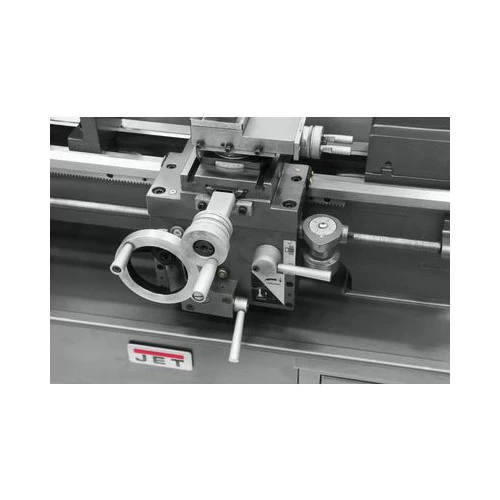

- Power longitudinal feed allows threading and reverse threading

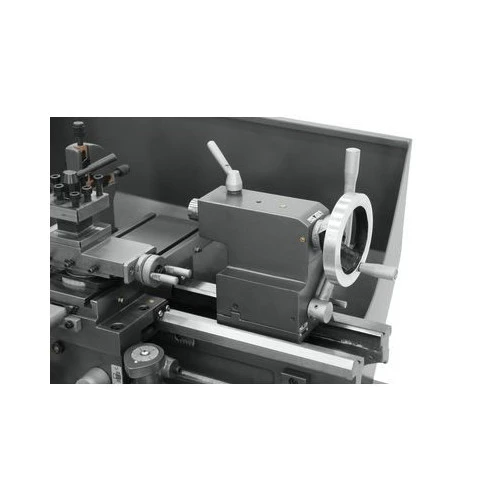

- Quick locking tailstock
- Standard 1-1/2 in. x 8 TPI spindle mount allows for many aftermarket accessories
- Reversing switch for added versatility
What’s Included:
- 9 x 19 BDB-919 Belt Drive Bench Lathe-JETN321378
| Spindle Speed Settings | 6 |
|---|---|
| Follow Rest Capcacity | 1-3/4 in |
| Horsepower | 0.75 |
| Voltage | 115V |
| Spindle Mount Taper | Yes |
| Carriage Travel | 17-1/2 in |
| Spindle Travel (Tailstock) | 1-9/16 in |
| Drive Type | Belt |
| No. of Longitudinal Feed Rates | 60 |
| Range of Longitudinal Feed Rates (IPR) | 0.0006-0.0368 in |
| Swing Range (Bed) | 8-3/4 in |
| ETL Safety | No |
| Spindle Mount | Yes |
| Length | 41 in. |
| Width | 22 in. |
| Height | 20 in. |
| Weight | 250 lbs. |
| Spindle Taper (Tailstock) | MT-2 |
| Motor Phase | 1 |
| Power Source | Corded |
| Cross Slide Travel | 4-1/4 in |
| Range of Inch Threads (TPI) | 8 – 56 |
| Spindle Bore Diameter | 3/4 in |
| UL Safety | Yes |
| Bed Width | 4-1/2 in |
| Swing Range (Cross Slide) | 5 in |
| No. of Inch Threads | 27 |
| Bed Construction | Cast Iron |
| Motor Type | Brushed |
| Tool Size | 1/2 in |
| Spindle Speed Range (RPM) | 2000 |
| Compound Slide Travel | 1-7/8 in |
| Range of Metric Threads | 0.5 – 3.5 |
| Steady Rest Capacity | 1-3/4 in |
| No. of Metric Threads | 12 |
| CSA Safety | No |
| Distance Between Centers | 18 in |
| Warranty Term | 2 Year |
