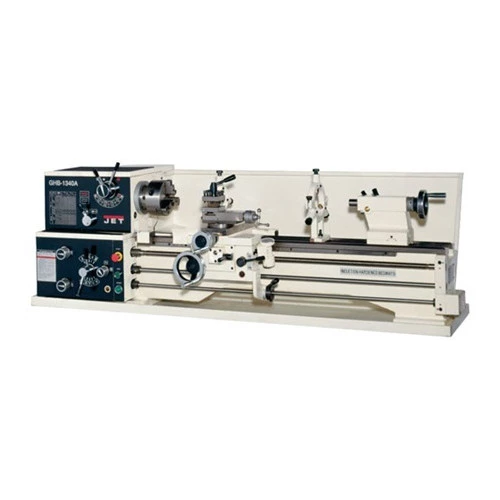

JET 321226 GHB-1340A Lathe With VUE DRO, Taper Attachment And Collet Closer Installed

Original price was: $599.00.Current price is: $93.99.

SKU: Metal Lathes jetn321226 Categories: Metal Lathes, Metalworking Tools, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Features:

Enclosed gearbox design provides smooth and quiet operation
Hardened ground gears in headstock and gearbox
Induction hardened and ground V-Way bed
Adjustable gibs incorporated into carriage and sideways
D1-4 spindle is precision grounded for accuracy and supported by high quality taper roller bearings
Independent lead screw and feed rod
Apron mounted spindle actuation control
Compound and cross slide backlash adjustment
Tailstock may be offset for turning tapers and includes an inch/metric graduated quill

What’s Included:

GHB-1340A Lathe with VUE DRO, Taper Attachment and Collet Closer Installed – 321226

Spindle Speed Settings	12
Spindle Travel (Tailstock)	4-3/4 in
Motor Phase	1
Range of Longitudinal Feed Rates (IPR)	0.0012-0.0294 in
Spindle Taper (Tailstock)	MT-5
Horsepower	2
Voltage	230V
Spindle Mount Taper	Yes
Carriage Travel	37-1/2 in
Drive Type	Geared Head Clutch
Tool Size	5/8 x 5/8 in
Follow Rest Capcacity	2-3/4 in
No. of Longitudinal Feed Rates	40
No. of Cross Feed Rates	40
Swing Range (Bed)	14 in
ETL Safety	No
Spindle Mount	Yes
Weight	1200 lbs.
Gap Length	9-3/8 in
Distance Between Centers	40 in
Power Source	Corded
Bed Construction	Cast Iron
Range of Inch Threads (TPI)	4 – 112
Spindle Bore Diameter	1-1/2 in
PreWired Voltage	230V
UL Safety	No
Bed Width	10-1/2 in
Swing Range (Cross Slide)	8-1/2 in
No. of Inch Threads	40
Cross Slide Travel	6-3/8 in
CSA Safety	No
Motor Type	Brushed
Spindle Speed Range (RPM)	1800
Compound Slide Travel	3-1/2 in
Range of Metric Threads	0.45 – 7.5
Steady Rest Capacity	3-3/4 in
No. of Metric Threads	22
Range of Cross Feeds (IPR)	0.0003 – 0.0103
Swing Range (Gap)	20 in
Warranty Term	2 Year
