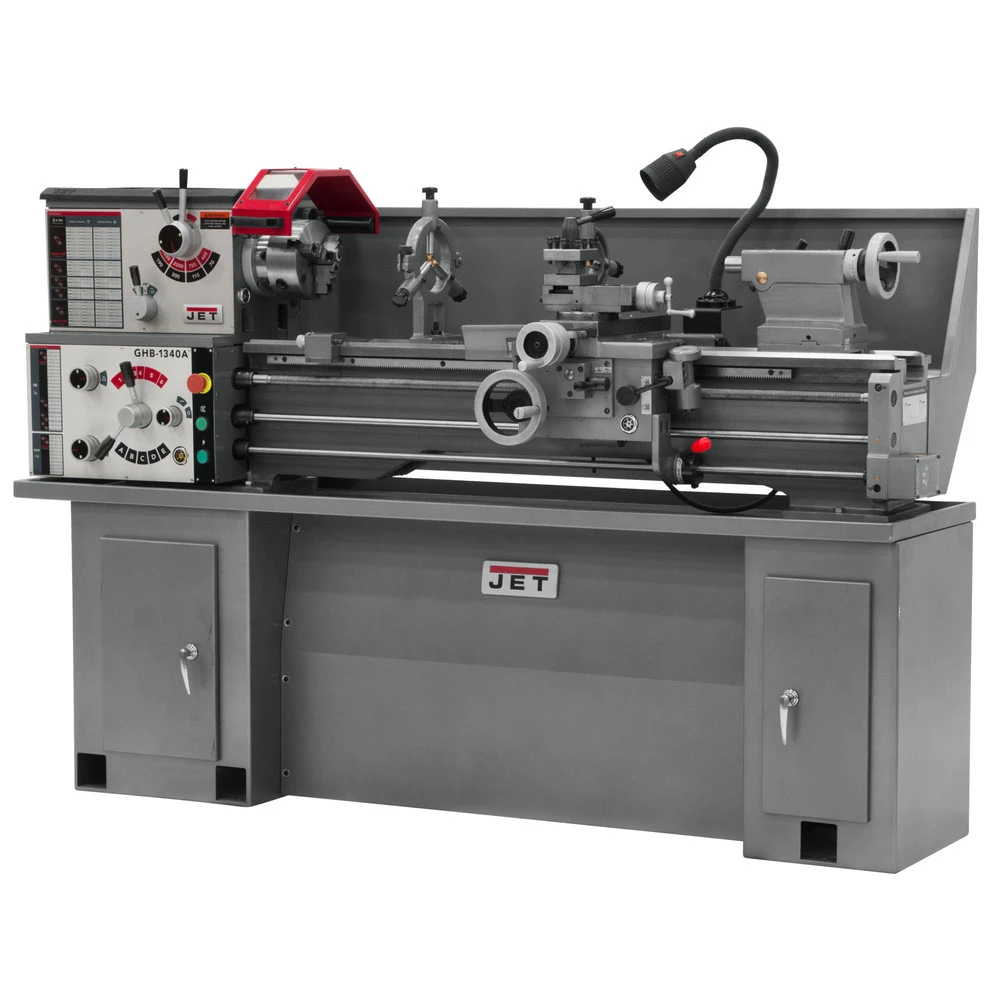

JET 321119 GHB-1340A-TAK, Lathe With Taper Attachment Installed

Original price was: $470.00.Current price is: $91.99.

SKU: Metal Lathes jetn321119 Categories: Metal Lathes, Metalworking Tools, Power Tools

Where quality meets convenience.
We take quality seriously.
Prompt service, every time.
No-Questions-Asked Returns

Details

Features:

One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
Enclosed gearbox design provides smooth, quiet operation
Fast, easy speed changes
Hardened and ground gears are featured in the headstock and gearbox
D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
Headstock is constantly being oiled during operation
Gearbox gives wide inch threading and feed capabiltites with no gear changes
V-way bed design is induction hardened and ground
Gap bed section provided for larger diameter work
Independent leadscrew and feed rod
Spindle actuation control is apronmounted
Compound and cross slide have backlash elimination
Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
Oil pan included
Tolerance test certificate included

What’s Included:

GHB-1340A-TAK, Lathe with Taper Attachment Installed
6 in. 3-Jaw Direct Mount Chuck with Top Reversing Jaws
8 in. 4-Jaw Chuck
Four-Way Tool Post
Steady and Follow Rest
Centers with Headstock Center Sleeve
Threading dial
Tool Box

Spindle Speed Settings	8
Follow Rest Capcacity	2-3/8 in
Range of Longitudinal Feed Rates (IPR)	0.0018-0.0374 in
Spindle Taper (Tailstock)	MT-3
Horsepower	2
Voltage	230V
Spindle Mount Taper	Yes
Carriage Travel	35 in
Spindle Travel (Tailstock)	3-3/4 in
Drive Type	Geared Head Clutch
No. of Longitudinal Feed Rates	40
Gap Length	8 in
No. of Cross Feed Rates	40
Swing Range (Bed)	13 in
ETL Safety	No
Spindle Mount	Yes
Length	79 in.
Width	28.5 in.
Height	30 in.
Weight	1154 lbs.
Motor Phase	1
Tool Size	5/8 x 5/8 in
Power Source	Corded
Cross Slide Travel	6-5/16 in
Range of Inch Threads (TPI)	3-1/2 – 80
Spindle Bore Diameter	1-3/8 in
PreWired Voltage	230V
UL Safety	No
Bed Width	7-3/8 in
Swing Range (Cross Slide)	7-25/32 in
No. of Inch Threads	38
Bed Construction	Cast Iron
Motor Type	Brushed
Distance Between Centers	40 in
Spindle Speed Range (RPM)	2000
Compound Slide Travel	2-11/16 in
Range of Metric Threads	0.45 – 10
Steady Rest Capacity	2-3/4 in
No. of Metric Threads	23
Range of Cross Feeds (IPR)	0.0006 – 0.0130
Swing Range (Gap)	18-3/4 in
CSA Safety	No
Warranty Term	2 Year
